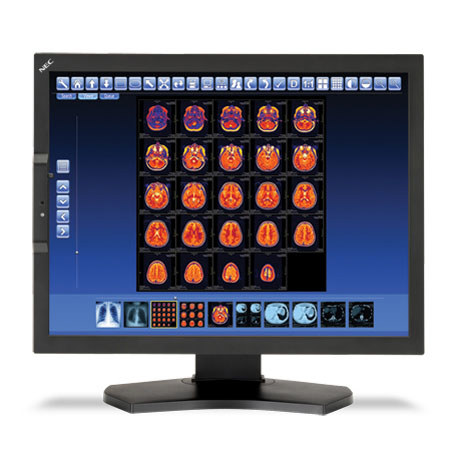

NEC MD211C2 21.3" Color 2-Megapixel LED-Backlit Medical Diagnostic Monitor, 900 cd/m2, 1400:1Contrast Ratio, 1600x1200 Resolution, DVI-D/DisplayPort

See all NEC items
SKU: NCMD211C2 MFR: MD211C2
NEC MD211C2: Picture 1 thumbnail NEC MD211C2: Picture 2 thumbnail NEC MD211C2: Picture 3 thumbnail NEC MD211C2: Picture 4 thumbnail NEC MD211C2: Picture 5 thumbnail NEC MD211C2: Picture 6 thumbnail

Original Price: $3,899.00 Special Price Available

24% Off
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About NEC MD211C2

The NEC MD211C2 21.3" Color 2-Megapixel LED-Backlit Medical Diagnostic Monitor is designed to meet the needs of healthcare facilities requiring consistent and accurate medical imaging using Picture Archiving and Communication System (PACS), the LED-backlit NEC MultiSync MD211C2, a 21.3" 2MP color monitor, features factory calibration to the DICOM standard for luminance and a 70% smaller front sensor than its predecessor.

This widescreen monitor, which maintains a designated calibrated brightness, also includes a human sensor that reduces power consumption when a user is not present. The all-digital connectors, including DisplayPort and two-port USB hub, enable advanced connectivity for any type of workstation.

NEC MD211C2 Features

  • Out-of-the-box calibration to the DICOM grayscale display function for luminance
  • Integrated tri-stimulus (three-color) sensor receives more light information than standard (brightness only) sensors and, therefore, is extremely accurate and stable
  • GammaComp MD QA software ensures consistent image quality, while providing a simple interface for conformance to the DICOM standard and an easy-to-use QA environment for medical imaging
  • 14-bit 3D internal programmable lookup tables (LUTs) enable precise calibration
  • Auto luminance control with backlight stabilization for consistent brightness and color
  • Built-in ambient light sensor automatically adjusts the display's brightness based on existing lighting conditions, reducing energy consumption
  • Quick QA feature allows for a one-button check of DICOM conformance

NEC MD211C2 Specifications

Viewable Image Size
21.3"
MegaPixels
2MP
Native Resolution
1600 x 1200
Pixel Pitch
0.27mm
Pixels Per Inch
94 at native resolution
Brightness (typical)
400 cd/m2 calibrated / 900 cd/m2 max
Contrast Ratio (typical)
1400:1
Viewing Angle
176deg. Vert., 176deg. Hor. (88U/88D/88L/88R) at CR>10
Response Time
20ms
Lookup Table
14-bit
Displayable Colors
16.8 million colors out of a 68 billion color palette (8-bit) / 1.074 billion colors out of a 4.398 trillion color palette (10-bit) / 16,384 levels of grayscale
Synch Range: Horizontal (Analog/Digital)
31.5-74.54 /99.4kHz
Synch Range: Vertical
50-85 Hz
Input/Output Terminals: Digital
DVI-D, DisplayPort, USB hub (1 up/2 down)
Power Consumption: On
80W
Power Consumption: Power Savings Mode
2W
Operating Temperature
41-95deg.F / 5-35deg.C
Operating Humidity
20-80%
Operating Altitude
10,000' / 3048m
Storage Temperature
14-140deg.F / -10-60deg.C
Storage Humidity
10-85%
Storage Altitude
40,000' / 12,192m
Safety Standards
UL60950-1 & UL60601-1
PSB
SASO
CCC
Gost/PCT
CE-MDD
NOM
TUV GM
FCC CLASS B/CANADIAN DOC
C-tick
FDA 510(k)
VCCI (class2)
ISO9241-307
RoHS(EU)
AAPM-TG18 (US)
SB50 (US California)
WEEE(EU)
DIN V 6868-57 (Germany) CatB
JESRA-X0093
VESA Hole Configuration
100 x 100mm
Dimensions (WxHxD)
With stand: 14.7x19.3-23.4x9.3 / 373.38x490.2-594.4x236.2mm
Without stand: 18.6x14.7x4.1" / 472.4x373.4x104.14mm
Weight
With stand: 26lbs / 11.8kg
Without stand: 17lbs / 7.7kg
