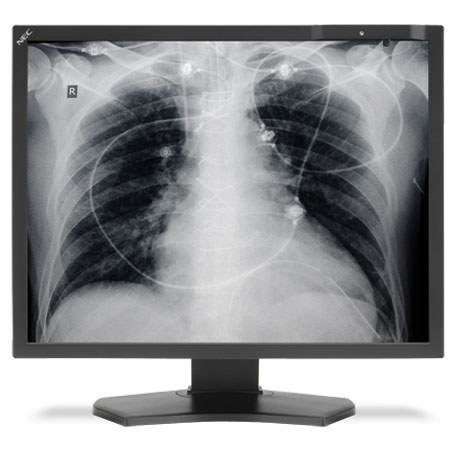

NEC 21.3" Grayscale 3-Megapixel Medical Diagnostic Monitor, 2048x1536 Resolution, 900:1 Contrast Ratio, 13ms Response Time

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

About this item

The NEC 21.3" Grayscale 3-Megapixel Medical Diagnostic Monitor is designed for the demanding needs of healthcare professionals working in radiology and PACS applications. This 3-megapixel grayscale display offers an SA-SFT IPS panel for impeccable 2048 x 1536 resolution. The DVI-D and DisplayPort connectors for video and two-port USB hub enable connectivity for any type of workstation. The medical diagnostic monitor's built-in front sensor constantly monitors and maintains brightness for optimal DICOM GSDF calibration, while its four-way ergonomic stand allows users to adjust for comfort and preference accordingly. This display is pending FDA 510(k) certification for use in digital radiology applications.

What's Included With This Item

  • NEC 21.3" Grayscale 3-Megapixel Medical Diagnostic Monitor
  • Power Cord
  • DVI-D Cable
  • DisplayPort Cable
  • USB A to B Cable
  • User Manual
  • CD-ROM
  • NEC 5 Years Parts and Labor Warranty

Key Features

  • Superior screen performance (900:1 contrast ratio, 2048 x 1536 native resolution, 1450 cd/m2 maximum and 400cd/m2 calibrated brightness)
  • Out-of-the-box calibration to the DICOM grayscale display function for luminance
  • Uniformity control provides accurate imaging across the screen
  • Built-in ambient light sensor automatically adjusts the display's brightness based on existing lighting conditions, reducing energy consumption
  • Height-adjust, pivot, tilt and swivel capabilities add flexibility and comfort to your viewing preferences

Technical Specs

Viewable Image Size 21.3"
Color Type Grayscale
Megapixels 3MP
Native Resolution 2048 x 1536
Pixel Pitch 0.21mm
Pixels Per Inch 120@ native resolution
Brightness (typical) 400 cd/m2 calibrated / 1450 cd/m2 max
Contrast Ratio (typical) 900:1
Viewing Angle 176deg. Vert., 176deg. Hor. (88U/88D/88L/88R) @ CR>10
Response Time 13ms
Displayable Colors 1024 shades of gray out of 48961
Horizontal Range (Analog/Digital) 31.5-99.4 KHz/126.3 KHz
Vertical Range 50-85 Hz/30 Hz
Input/Output Terminals Digital: DVI-D, DisplayPort
Power Consumption 105W
Power Savings Mode <2W
VESA 100 x 100mm
Operating Temperature 41-95deg.F / 5-35deg.C
Operating Humidity 30-80%
Operating Altitude 9842 ft. / 3000m
Storage Temperature 14-140deg.F / -10-60deg.C
Storage Humidity 10-85%
Storage Altitude 40000 ft. / 12192m
Dimensions (W x H x D) With Stand: 18.4 x 14.9-20.8 x 9 in. / 467.8 x 378.4-528.3 x 228.6mm
Without stand: 18.4 x 14.2 x 4.1 in. / 467.3 x 360.6 x 104.1mm
Weight With Stand: 23.6 lbs./ 10.7 kg
Without stand: 16.5 lbs. / 7.5 kg
