NEC MD215MG 21.3" Grayscale 5-Megapixel Medical Diagnostic Monitor, 2048x2560 Native Resolution, 18ms Response Time

SKU: NCMD215MG MFR: MD215MG
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Availability: Temporarily On Backorder Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. Notify me when in stock

Free Shipping

See all shipping options

Product Highlights

  • Superior screen performance (600
  • 21" Screen
  • 20" to 29" Computer Monitors
  • 2048 x2560 Resolution
  • Grayscale Diagnostics
  • DVI Connection

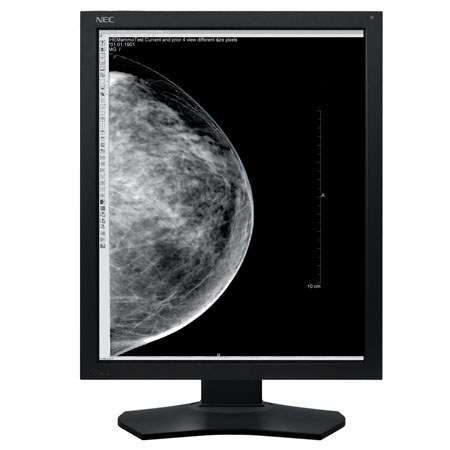

NEC MD215MG: Picture 1 regular

About NEC MD215MG

The NEC MD215MG 21.3" Grayscale 5-Megapixel Medical Diagnostic Monitor is designed for the demanding needs of healthcare professionals in medical imaging and PACS. This 5-megapixel model has an IPS panel to provide precise grayscale reproduction and wide viewing angles, as well as integrated backlight and front sensors, which constantly monitor and adjust brightness to maintain the factory DICOM GSDF calibration.

The MD215MG includes a protective panel to prevent accidental damage to the screen and its stand has four-way ergonomic functionality, including height-adjust, swivel, tilt and pivot. The display offers a DVI-D input, built-in two-port USB hub, external power adaptor and 11.9-bit lookup tables (LUTs) with 256 levels of gray for smooth images and hardware calibration.

NEC MD215MG Features

  • Superior screen performance (600:1 contrast ratio, 2048 x 2560 native resolution, 500cd/m2 brightness)
  • Out-of-the-box calibration to the DICOM grayscale display function for luminance
  • Uniformity control provides accurate imaging across the screen
  • Built-in ambient light sensor automatically adjusts the display's brightness based on existing lighting conditions, reducing energy consumption
  • Integrated two-port USB 2.0 hub easily connects you to your peripherals
  • Includes GammaCompMD QA software for worry-free calibration and conformance testing to the DICOM standard

NEC MD215MG Specifications

Viewable Image Size
21.3"
Color Type
Grayscale
Megapixels
5MP
Native Resolution
2048 x 2560
Pixel Pitch
0.17mm
Pixels Per Inch
154@ native resolution
Brightness (typical)
500 cd/m2 calibrated / 1100 cd/m2 max
Contrast Ratio (typical)
600:1
Viewing Angle
170deg. Vert., 170deg. Hor. (85U/85D/85L/85R) @ CR>20
Response Time
18ms
Displayable Colors
256 levels of gray out of a palette of 3826
Synchronization Range: Horizontal
30-135 kHz (Analog/Digital)
Synchronization Range: Vertical
25-75 Hz
Input/Output Terminals
Digital: DVI-D
Power Consumption (typical)
On: 90W
Power Savings Mode: 10W
VESA Hole Configuration
100 x 100mm
Operating Temperature
41-104deg.F / 5-40deg.C
Operating Humidity
30-80%
Operating Altitude
9842 ft. / 3000m
Storage Temperature
-4-140deg.F / -20-60deg.C
Storage Humidity
10-85%
Storage Altitude
32,808 ft. / 10,000m
Dimensions (WxHxD)
With Stand: 18.7 x 15.9-21.3 x 9 in. / 474.9 x 403.8-541 x 228.6mm
Without Stand: 18.7 x 15.4 x 4.1 in. / 474.9 x 391.16 x 104.14mm
Weight
With Stand: 24.5 lbs. / 11.1 kg
Without Stand: 17.4 lbs. / 7.9 kg
Mfr #
MD215MG
SKU
NCMD215MG
