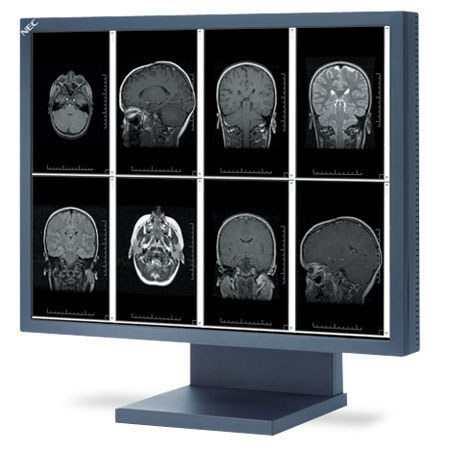

The NEC 21.3" Grayscale Medical Grade LCD Display has been designed exclusively for the demanding needs of the diagnostic professional. This LCD Display embodies the precision, high performance and intelligence you'd expect from a world leader in display technology. The medically certified 21.3" grayscale 2-megapixel display features the X-Light technology, which allows for consistent brightness and white point levels throughout the life of the monitor and provides the basis for excellent diagnostic quality.
Modern medical technology enables complex examinations. But in the end, it is the radiologist who is responsible for fast and accurate diagnostic findings. To support these findings in a soft copy reading environment, flat-panel displays need to comply with the highest visual requirements. Their image quality has a decisive influence on diagnostic accuracy.
NEC Display Solutions is setting new standards with grayscale displays for filmless diagnostics, with technologies that are available for the first time in this market segment. This introduction of medical-grade displays is backed by years of experience in the development of TFT displays for professional use combined with intensive research done in the medical market.
MultiSync grayscale displays in combination with the appropriate graphics controller is designed for diagnostic imaging and for use in Picture Archiving and Communication System (PACS) applications.
|Recommended Resolution||1600 x 1200|
|Viewing Angle||176deg.(H) / 176deg.(V)|
|Horizontal Refresh Rate||31.5 - 91.1 kHz|
|Vertical Refresh Rate||50 - 85 Hz|
|Input Video Compatibility||Analog RGB, Digital|
Power Savings Mode: <3W
|Built-in TV Tuner||No|
|Dimensions||Landscape: 18.4 x 18.1 x 7.9" / 46.73 x 45.97 x 20.06cm
Portrait: 14.1 x 20.2 x 7.9" / 35.81 x 51.30 x 20.06cm
|Weight||25.8 lbs / 11.70kg|
