NEC (2) 21" Color 3MP Medical Diagnostic Monitors and MDN-K2000 Graphics Card, 2048x1536 Resolution, 1000:1 Contrast Ratio, DVI-D/USB

See all NEC items
SKU: NCMDC3BNDN1 MFR: MDC3-BNDN1
NEC : Picture 1 thumbnail NEC : Picture 2 thumbnail

Original Price: $9,999.00 Special Price Available

Free Shipping

See all shipping options

Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. learn more / Notify when in stock

Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Ways To Save up to $60.00

Product Highlights

  • Superior screen performance
  • 21" Screen
  • 20" to 29" Computer Monitors
  • 2048 x 1536 Resolution
  • DisplayPort Connection
  • Diagnostic Monitor
  • DVI Connection
  • USB Connection
NEC : Picture 1 regular

About NEC

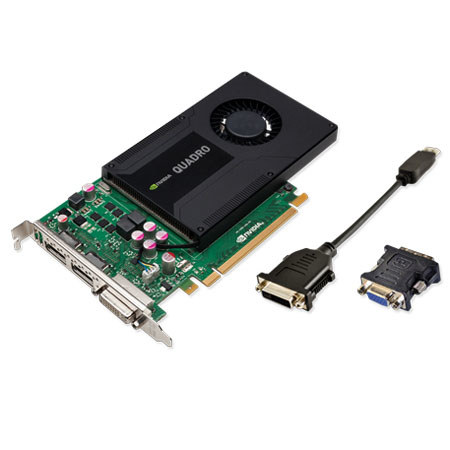

The NEC MDC3-BNDN1 Bundle with (2) MD211C3 Monitors and MDN-K2000 Graphics Card includes all the equipment healthcare professionals need for a dual-screen color setup for radiology and PACS applications. Comprised of two medical-grade MD211C3 displays, a dual DisplayPort / single DVI output NVIDIA Quadro K2000 video card and GammaCompMD QA calibration software, the MDC3-BNDA1 provides out-of-the-box DICOM calibration and flawless image uniformity.

NEC Features

  • Superior screen performance (1000:1 contrast ratio, 2048 x 1536 native resolution, 800 cd/m2 maximum and 400cd/m2 calibrated brightness)
  • Out-of-the-box calibration to the DICOM grayscale display function for luminance
  • Uniformity control provides accurate imaging across the screen
  • Built-in ambient light sensor automatically adjusts the display's brightness based on existing lighting conditions, reducing energy consumption
  • Height-adjust, pivot, tilt and swivel capabilities add flexibility and comfort to your viewing preferences
  • Includes GammaCompMD QA software for worry-free calibration and conformance testing to the DICOM standard

NEC Specifications

Viewable Image Size
21.3"
Color Type
Color
MegaPixels
3MP
Native Resolution
2048 x 1536
Pixel Pitch
0.21mm
Pixels Per Inch
120 at native resolution
Brightness (typical)
400 cd/m2 calibrated / 800 cd/m2 max
Contrast Ratio (typical)
1000:1
Viewing Angle
176deg. Vert., 176deg. Hor. (88U/88D/88L/88R) at CR>10
Response Time
20ms
Lookup Table
14-bit
Displayable Colors
16.8 million colors out of a 68 billion color palette (8-bit) / 1.074 billion colors out of a 4.398 trillion color palette (10-bit) / 16,639 levels of grayscale
Sensors
Tri-stimulus front
Synchronization Range: Horizontal
31.5-94.8/126.3 kHz (Analog/Digital)
Synchronization Range: Vertical
30, 58-85 Hz
Input/Output Terminals: Digital
DVI-D, DisplayPort, USB hub (1 up/2 down)
Power Consumption (typical): On
85W
Power Savings Mode
2W
VESA Hole Configuration
100 x 100mm
Operating Temperature
41-95deg.F / 5-35deg.C
Operating Humidity
20-80%
Operating Altitude
10,000 ft. / 3048m
Storage Temperature
14-140deg.F / -10-60deg.C
Storage Humidity
10-85%
Storage Altitude
40,000 ft. / 12,192m
Safety Standards
UL60950-1 & UL60601-1
SASO
CCC
Gost/PCT
CE-
TUV
FCC CLASS B/CANADIAN
C-tick
FDA 510(k) pending
VCCI (class2)
ISO9241-307
RoHS(EU)
AAPM-TG18 (US)
SB50 (US California)
WEEE(EU)
DIN V 6868-57 (Germany) CatB
JESRA-X0093
Dimensions (WxHxD)
With Stand: 14.7x19.3-23.4x9.3" / 37.3x49.02-59.4x23.6cm
Without Stand: 18.6x14.7x4.1" / 47.24x37.33x10.4cm
Weight
With Stand: 26lbs / 11.7kg
Without Stand: 17lbs / 7.7kg
Mfr #
MDC3-BNDN1
SKU
NCMDC3BNDN1
