NEC

NEC (2) 21" Grayscale 3MP LED-Backlit Medical Diagnostic Monitors with Graphics Card, 2048x1536 Resolution, 900:1 Contrast Ratio, DVI-D/USB

SKU: NCMDG3BNDA1 MFR: MDG3-BNDA1
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$9,399.00 Special Price Available
Free Shipping
Qty:

Add to Wishlist

About this item

The NEC (2) 21" Grayscale 3MP LED-Backlit Medical Diagnostic Monitors with Graphics Card includes all the equipment healthcare professionals need for a dual-screen grayscale setup for radiology and PACS applications. Comprised of two fully matched, medical-grade MD211G3 displays, a dual DisplayPort / single DVI output AMD FirePro W5000 video card and GammaCompMD QA calibration software, the MDG3-BNDA1 provides out-of-the-box DICOM calibration and flawless image uniformity.

What's Included With This Item

  • NEC 2 x MD211G3 Displays

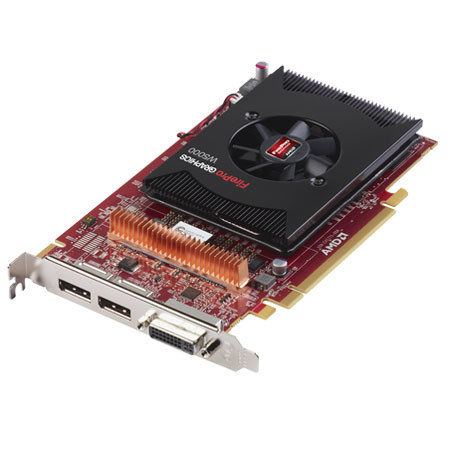

  • MDA-W5000 Graphics Card
  • 2 x Power Cord
  • 2 x DVI-D Cable
  • 2 x DisplayPort Cable
  • 2 x USB A to B Cable
  • CD-ROM (GammaCompMD QA Software)
  • User Manual
  • NEC 5 Years Parts and Labor Limited Warranty

Key Features

  • Superior screen performance (900:1 contrast ratio, 2048 x 1536 native resolution, 1450 cd/m2 maximum and 400cd/m2 calibrated brightness)
  • Out-of-the-box calibration to the DICOM grayscale display function for luminance
  • Uniformity control provides accurate imaging across the screen
  • Built-in ambient light sensor automatically adjusts the display's brightness based on existing lighting conditions, reducing energy consumption
  • Height-adjust, pivot, tilt and swivel capabilities add flexibility and comfort to your viewing preferences
  • Includes GammaCompMD QA software for worry-free calibration and conformance testing to the DICOM standard

Technical Specs

Viewable Image Size 21.3"
Color Type Grayscale
MegaPixels 3MP
Native Resolution 2048 x 1536
Pixel Pitch 0.21mm
Pixels Per Inch 120 at native resolution
Brightness (typical) 400 cd/m2 calibrated / 1450 cd/m2 max
Contrast Ratio (typical) 900:1
Viewing Angle 176deg. Vert., 176deg. Hor. (88U/88D/88L/88R) at CR>10
Response Time 13ms
Lookup Table 15.5-bit
Displayable Colors 1024 shades of gray out of 48961
Sensors Front
Synchronization Range: Horizontal 31.5-99.4 KHz/126.3 KHz (Analog/Digital)
Synchronization Range: Vertical 50-85 Hz/30 Hz
Input/Output Terminals: Digital DVI-D, DisplayPort, USB hub (2 up/ 3 down) with DisplaySync Pro
Power Consumption (typical): On 105W
Power Savings Mode <2W
VESA Hole Configuration 100 x 100mm
Operating Temperature 41-95deg.F / 5-35deg.C
Operating Humidity 30-80%
Operating Altitude 9842 ft. / 3000m
Storage Temperature 14-140deg.F / -10-60deg.C
Storage Humidity 10-85%
Storage Altitude 40,000 ft. / 12,192m
Safety Standards C-UL
EN 60601-1
ISO 9241-307
ISO 13406-2
US Mercury Regulations
ECMA-370
SB50 (California)
WEEE
RoHS
PC Recycle
CCC
CEL Grade 1
AAPM-TG18
DIN V 6868-57
FDA 510(k)
FDA 510(k)
Dimensions (WxHxD) With Stand: 18.4x14.9-20.8x9" / 46.7x37.84-52.8x22.86cm
Without Stand: 18.4x14.2x4.1" / 46.73x36.06x10.41cm
Weight With Stand: 23.6lbs / 10.70kg
Without Stand: 16.5lbs / 7.48kg
