NEC 21" Grayscale 5-Megapixel Medical Diagnostic Monitors with Graphics Card, 2048x1536 Native Resolution, 600:1 Contrast Ratio, 30ms Response Time

SKU: NCMDG5BNDL2

This item is no longer available.

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

NEC 21" Grayscale 5-Megapixel Medical Diagnostic Monitors with Graphics Card Specifications

  • Viewable Image Size

    21.3"

  • ColorType

    Grayscale

  • Native Resolution

    2048 x 1536

  • Pixel Pitch

    0.17mm

  • Pixels Per Inch

    154at native resolution

  • Brightness (typical)

    500 cd/m2 calibrated / 1100 cd/m2 max

  • Contrast Ratio (typical)

    600:1

  • Viewing Angle

    170deg. Vert., 170deg. Hor. (88U/88D/88L/88R) at CR>10

  • Response Time

    30ms

  • Lookup Table

    11.9-bit

  • Displayable Colors

    1024 shades of gray from a palette of 4096

  • Horizontal (Analog/Digital)

    30-135 kHz

  • Vertical

    25-75 Hz

  • Connectivity

    Input/Output Terminals:
    Digital: DVI-D

  • Power Consumption

    On: 90W
    Power Savings Mode: 10W

  • VESA Hole Configuration

    100 x 100mm

  • Operating Temperature

    41-104deg.F / 5-40deg.C

  • Operating Humidity

    30-80%

  • Operating Altitude

    9842 ft. / 3000m

  • Storage Temperature

    -4-140deg.F / -20-60deg.C

  • Storage Humidity

    10-85%

  • Storage Altitude

    32,808 ft. / 10,000m

  • Safety Standards

    C-UL
    EN 60601-1
    ISO 9241-307
    ISO 13406-2
    US Mercury Regulations
    WEEE
    RoHS
    AAPM-TG18
    DIN V 6868-57
    FDA 501(k)

  • Dimensions (WxHxD)

    With stand: 18.7x15.9-21.3x9" / 474.5x403.3-533.4x228.6mm
    without stand: 18.7x15.4x4.1" / 474.5x391x104.4mm

  • Weight

    With stand: 24.5 lbs / 11.1 kg
    Without stand: 17.4 lbs / 7.9 kg

Related Articles & Videos

About NEC 21" Grayscale 5-Megapixel Medical Diagnostic Monitors with Graphics Card

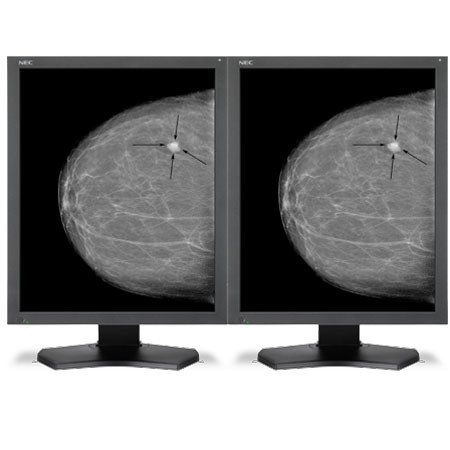

The NEC 21" Grayscale 5-Megapixel Medical Diagnostic Monitors with Graphics Card is a high-grade set of two monitors, designed for healthcare professionals for a dual-screen mammography workstation. Each of the screens is 21.3" (54.1 cm) with 5 Mp and 1024 levels of grayscale with a 600:1 contrast ratio, 2048 x 2560 native resolution and 500 cd/m2 brightness.

The Bundle comprises of two fully matched, medical-grade 5 Megapixel Medical Diagnostic displays, a Matrox (MDM-xENPRO) triple-output DVI video card and GammaCompMD QA software. It provides out-of-the-box DICOM calibration and flawless image uniformity.

The grayscale LCD display also provides uniform color across both screens and a built-in ambient light sensor that automatically adjusts the brightness, based on existing light conditions. The integrated two-port USB 2.0 hub allows you to connect peripherals.

NEC 21" Grayscale 5-Megapixel Medical Diagnostic Monitors with Graphics Card Features

  • Superior screen performance (600:1 contrast ratio, 2048 x 2560 native resolution, 500cd/m2 brightness)
  • Out-of-the-box calibration to the DICOM grayscale display function for luminance
  • Uniformity control provides accurate imaging across the screen
  • Built-in ambient light sensor automatically adjusts the display's brightness based on existing lighting conditions, reducing energy consumption
  • Integrated two-port USB 2.0 hub easily connects you to your peripherals
  • Includes GammaCompMD QA software for worry-free calibration and conformance testing to the DICOM standard

Key Features

  • Superior screen performance

What's in the box:

  • NEC 2 x 21" Grayscale 5-Megapixel Medical Diagnostic Monitor
  • Matrox Xenia Pro 1 GB Graphics Display Card
  • Power Cord
  • DVI-D Dual Link Cable
  • Setup Sheet
  • AC Adapter
  • USB Cable
  • Quick Reference Guide
  • Chroma5 Calibration Sensor
  • NEC 5 Years Parts and Labor Limited Warranty
