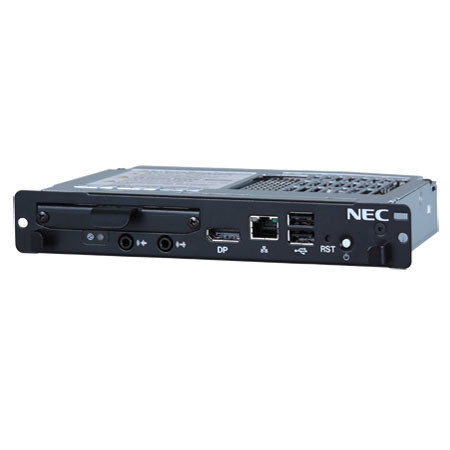

The NEC Single Board Computer with Intel Processor (for NEC Large-Screen LCD) features an Intel Core i5 520E 2.4 GHz CPU, Intel QM57 GPU, 4GB DDR3 RAM and a 320GB hard drive with Windows Embedded Standard 7 operating system. It eliminates the need for an external connection by allowing the PC signal, audio and control signals to be passed internally from display to OPS device.
Offering compatibility with NEC V462, V651, P402, P462, X461S, X551S and X551UN displays, the Single Board Computer features a seamless design offering a clean look. It supports 1080p true video, MPEG2, H.264 and WM9 video formats. Additionally, it also supports JPEG, BMP, TIFF and GIFF graphical formats.
Featuring an all-metal chassis, the Single Board Computer is suitable for commercial applications. It can also be used in applications such as digital signage, quick-service restaurants, education, medical, retail and rental staging.
|Operating System||Windows standard 7 embedded|
|CPU||2.4 GHz Intel Core i5 520E|
|Stream Processors||Intel QM57|
|Compatibility||NEC V462, V651, P402, P462, X461S, X551S, X551UN|
|Video Output||External display port|
|Audio Input||Stereo mini-jack|
|Audio Output||External display port, stereo mini-jack|
|Network Connections||Gigabit Ethernet|
|Control I/O||USB 2.0 x 2|
|Video Format||Format supported - 1080p, MPEG/2, H.264, WM9|
|Graphics Support||Format supported - JPEG, BMP, TIFF, GIFF|
|Audio Formats Support||MP3, PCM, AAC|
|Network Protocol Support||Internet (IP, TCP, UDP, ICMP, ARP, DHCP, HTTP, FTP, IGMP, RTP, RTSP, SNMP)|
|Power||Power dissipation (55W)|
|Operating Temperature||41 - 104deg.F (5 - 40deg.C)|
|Operating Humidity||80% maximum relative humidity, non-condensing|
|Certifications||UL, CE, CCC|
|Dimensions (W x H x D)||7.9 x 1.2 x 4.7" (200 x 30 x 119 mm)|
|Weight||2 lb (0.9 kg)|
