| Display Technology |
DLP (0.45" DMD) |
| Light Output (Lumens) |
500 normal / Eco = approx. 80% of normal mode |
| Resolution |
Native: WXGA 1280 x 800 Maximum: UXGA 1600 x 1200 |
| Contrast Ratio (up to) |
2000:1 |
| Lamp Life (up to) |
20,000 hours |
| Screen Size (diagonal) |
17 to 100" |
| Throw Ratio |
1.4 |
| Projection Distance |
1.7 to 9.8 ft. / 0.5 to 3m |
| Projector Angle |
13.8deg. |
| Lens |
Zoom: 1 to 1.1 Focus: Manual F number, fnumber: F=2.41 to 2.55, f=21.83 to 24mm |
| Keystone Correction |
Automatic or manual +/- 40deg. |
| Scan Rate |
Horizontal: 15-100 kHz Vertical: 50-120 Hz |
| Supported Video Standards |
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
| SD/HD Video Signal Compatibility |
480p, 576i, 576p, 720p, 1080i |
| PC Signal Compatibility |
SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA |
| Macintosh Compatibility |
Yes |

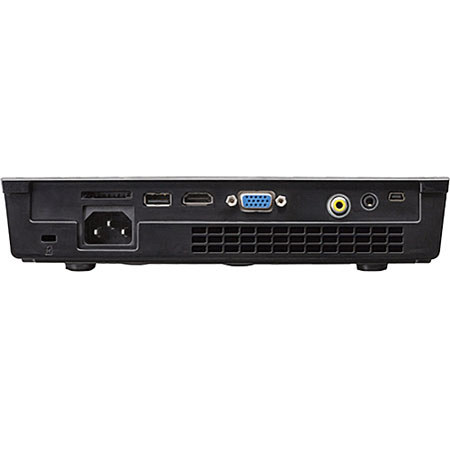

| Input/Output Terminals |
RGB1(analog): VGA 15-pin D-sub, Component video using ADP-CV 1E RGB3(digital): HDMI Audio: 1 1/8 in. stereo |
| Audio |
2W speaker |
| Sync Compatibility |
Separate Sync / Composite Sync / Sync on G |
| Power Requirements |
100-240V AC, 50/60 Hz |
| Input Current |
1.2A |
| Power Consumption |
110W / 75W / NA/ 0.5W (Normal/ECO Mode/Standby/Standby Power Saving) |
| Operating Temperature |
41-104deg.F / 5-40deg.C |
| Humidity |
20-80% non-condensing |
| Storage |
-14-122deg.F / -10-50deg.C |
| Installation Orientation |
Floor/Front, Floor/Rearc |
| Fan Noise |
38 dB normal / 32 dB eco |
| Regulations |
USA UL60950-1 FCC Class B, Canada CSA 60950-1, NOM |
| Dimensions (W x D x H) |
8.9 x 1.7 x 6.9 in. / 226 x 43 x 175mm |
| Weight |
2.6 lbs. / 1.18 kg |
