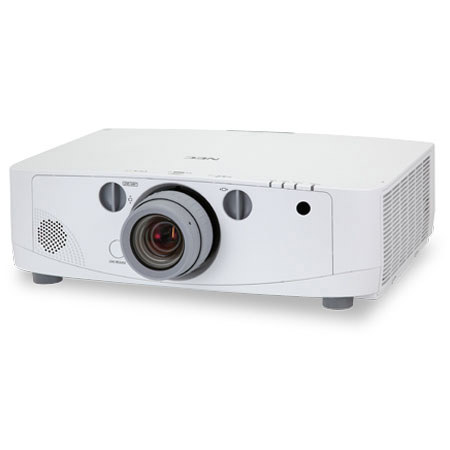

NEC NP-PA500U Professional Installation Projector with NP13ZL Lens and VUKUNET Software, 5000 Lumens, 1920x1200 Resolution, 2000:1 Contrast Ratio

See all NEC items
SKU: NCNPPA500UZL MFR: NP-PA500U-13ZL
NEC NP-PA500U: Picture 1 thumbnail NEC NP-PA500U: Picture 2 thumbnail NEC NP-PA500U: Picture 3 thumbnail NEC NP-PA500U: Picture 4 thumbnail NEC NP-PA500U: Picture 5 thumbnail NEC NP-PA500U: Picture 6 thumbnail NEC NP-PA500U: Picture 7 thumbnail NEC NP-PA500U: Picture 8 thumbnail

Our Price

$6,199.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About NEC NP-PA500U

The NEC NP-PA500U Professional Installation Projector is designed for advanced professional installations and appeases corporate and higher education users. With integrated RJ45, high-speed wireless LAN and a multitude of simple-to-use asset management technologies, the PA500U helps users present seamlessly without worrying about their technology.

The industry's first built-in stacking correction capabilities (up to four projectors) allows the projectors to boost an image's brightness up to 20,000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.

NEC NP-PA500U Features

  • ECO Mode technology helps extend lamp life and lowers power consumption
  • 5000-lumen brightness enhances images for most applications
  • HQV technology delivers superior home theater video processing
  • Windows Network Projector function simplifies your ability to present from any computer, whether local or remote
  • Geometric Correction Tool allows you to easily project square images on non-flat screen surfaces without distortion
  • AutoSense automatically syncs with any computer signal and features one-touch image optimization
  • Complete line of (5) bayonet-style lenses allows for quick and easy lens exchange
  • Stacking correction capabilities (up to four projectors) allows the projectors to boost an image's brightness up to 20,000 lumens

NEC NP-PA500U Specifications

Display Technology
0.76" LCD w/ MLA
Light Output(Lumens)
5000 normal / Eco = approx. 80% of normal mode
Resolution
Native: WUXGA 1920 x 1200
Maximum: UXGA 1600 x 1200
Contrast Ratio (up to)
2000:1
Lamp Type
330W AC / 264W eco
Lamp Life (up to)
3000 hours normal / 4000 hours eco
Screen Size (diagonal)
25 to 500 in. / 0.64 to 12.7m
Throw Ratio
1.50 - 3.02
Projection Distance
2.5 to 68.5 ft. / 0.74 to 20.9m
Projector Angle
10.3 to 10.8deg. tele / 13.7 to 14.5deg. wide
Lens: Zoom
Manual, 1 to 2.01
Lens: Focus
Manual
Lens: F number, fnumber
F=1.7 to 2.2, f=24.4 to 32.5mm
Lens: Shift
Mechanical -0.1 to +0.5 vertical, +/-0.3 horizontal
Keystone Correction
+/- 40deg. horizontal, +/- 30deg. vertical
Scan Rate: Horizontal
15-108 kHz
Scan Rate: Vertical
48-120 Hz
Supported Video Standards
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Compatibility
Yes
Input/Output Terminals
RGB1(analog): VGA 15-pin D-sub
RGB2(analog): VGA 15-pin D-sub
RGB3(analog): 5-BNC
RGB4(digital): HDMI w/ HDCP
RGB5(digital): DisplayPort
Video 1: RCA
Video 2: S-Video
Audio 1: Mini stereo
Monitor out: VGA 15-pin D-sub
Audio out: Yes
Audio
10W mono
External Control
RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
Sync Compatibility
Separate Sync / Composite Sync / Sync on G
Networking
RJ-45 Monitoring
Power Requirements
100-240V AC, 50/60 Hz
Input Current
5.1A
Power Consumption (Normal/ECO Mode)
464W / 372W
Power Consumption (Standby/Power Saving)
16W / 0.2W
Fan Noise
38 dB normal / 32 dB eco
Regulations
USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM
Operating Temperature
41-104deg.F / 5-40deg.C
Humidity
20-80% non-condensing
Storage
-14-122deg.F / -10-50deg.C
Installation Orientation
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH)
19.7x14.4x6.5" / 500.38x366x165.1mm
Weight
17.2 lbs/ 7.8 kg
