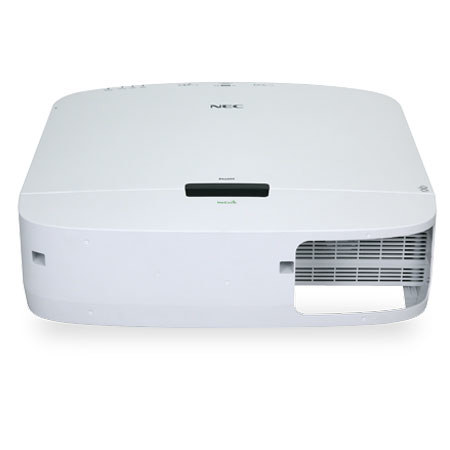

NEC NP-PA550W Professional Installation Projector with NP13ZL Lens, 5500 Lumens, HQV Technology, Cabinet Control Lock

See all NEC items
SKU: NCNPPA550WZL MFR: NP-PA550W-13ZL
NEC NP-PA550W: Picture 1 thumbnail NEC NP-PA550W: Picture 2 thumbnail NEC NP-PA550W: Picture 3 thumbnail NEC NP-PA550W: Picture 4 thumbnail NEC NP-PA550W: Picture 5 thumbnail NEC NP-PA550W: Picture 6 thumbnail NEC NP-PA550W: Picture 7 thumbnail NEC NP-PA550W: Picture 8 thumbnail
Closeout

Our Price

$4,299.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About NEC NP-PA550W

The NEC NP-PA550W Professional Installation Projector with NP13ZL Lens is one of NEC's stackable projectors. No, you don't stack them on top of each other. You can place up to four of them side by side in a row to project one luminously bright and perfectly aligned image. With four NP-PA550Ws that's an image. That's an incredible 22,000 lumens bright. It's ideal for larger sized screens. The NP-PA550W can project a 500" (12,700mm) image or where there is a great deal of ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.

The NP-PA550W offers much more, however. Its network ready thanks to an RJ45 jack for wired networks. Each projector has its own HTTP page and a group of projectors can be managed from a single remote location. You can even have a projector email you a status report when certain events occur, like when the lamp is nearing the end of its life.

Unlike many projectors the NP-PA550W is backed up by a full line of bayonet-style lenses. Capture your audience's attention with this bright and bold projector. NEC's 5500-lumen PA550W is an advanced professional installation model that appeases corporate and higher education users.

NEC NP-PA550W Features

  • Integrated Device Technology HQV is a high-performance video processing/scaling system designed for computer signals as well as standard or high-definition video
  • Bright enough for most applications: 5500 lumens
  • Geometric correction tool allows you to project on spheres, cylinders and more
  • Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability) Integrated high-speed wireless LAN IEEE 802.11b/g
  • Desktop control allows you to securely transmit information wirelessly to the projector from a docking station or PC in another room
  • Image Express Utility (IEU 2.0; compatible with Windows or Mac operating systems) dedicated projector software provides wired and wireless data transmission via peer-to-peer or over the network
  • Broadcast mode allows you to send information from one computer to several projectors
  • Windows Network Projector function within Windows Vista connects directly to networked projectors without the need for additional proprietary software
  • Windows Remote Desktop function allows you to control a networked computer by connecting a USB mouse and keyboard directly to the projector's USB input
  • Windows Network Drive function displays multimedia files (.jpeg, .bmp, .png, .mpeg2 or .wmv9) in the Windows shared folder on a local network using the Viewer function-all without bringing your PC into the conference room
  • Windows Media Connection function displays multimedia files (.mpeg2, .jpeg or .wmv9) stored on the Windows Media Connect server or a local network using the Viewer function-all without bringing your PC into the conference room
  • Cabinet control lock setting enables user to deactivate buttons on cabinet to prevent unwanted changes to projector settings
  • Logo lock restricts changes to logo saved in projector memory
  • Password protection restricts unauthorized use of projector
  • Email notification informs the system administrator when the lamp approaches the end of its useful life
  • Enjoy greater installation flexibility with up to 60% vertical lens shift and +/- 30% horizontal lens shift
  • The NP-PA550W can be rotated freely (360deg.) in order to point up or down depending on the installation requirements
  • Extended lamp life with Eco-Mode technology increases lamp life up to 4000 hours, while lowering power consumption
  • Power management enables projector to automatically turn off when an incoming signal is not detected from any of the inputs
  • Auto Power On via the RGB (15-pin) input connector when a signal is detected from a computer
  • Carbon savings meter calculates the positive effects of operating the projector in Eco-Mode, which is encouraged by an optional message at startup. A green Eco-Mode button on the remote control makes the switch easy
  • Quick start (3 to 4 seconds) lets you begin presenting in seconds while quick shutdown (immediate power off with no cooling required after shutdown) ensures efficient energy usage
  • Sleep timer can be set to automatically turn off the projector at set countdown times
  • Low power consumption (0.2W in standby mode) minimizes energy costs
  • Direct power off provides instantaneous shutdown of the projector

NEC NP-PA550W Specifications

Display System
0.75" / 1.91 cm Micro Lens Array (MLA) LCD
Native Resolution
XGA - 1280 x 800
Supported Resolutions
VGA
SVGA
XGA
SXGA
SXGA+
UXGA - 1600 x 1200
Format
NTSC 4.43
PAL 60, M, N
SECAM
HDTV Compatibility
480i
480p
576i
576p
720p
1080i
Pixels
1024000
Brightness
5500 Lumens
Contrast Ratio
2000:1
Scan
Horizontal: 15 - 108 kHz
Vertical: 48 - 120 Hz
Lens
F 1.7 - 2.2 (f = 24.4 - 32.5 mm)
Zoom Ratio
1-1.33x
Throw Distance
2.5 - 68.5' (0.76 - 20.88 m)
Throw Ratio
1.5 - 3:1
Projection Size
25 - 500" (635.00 - 12700.00 mm)
Keystone Correction
Horizontal: ± 40deg.
Vertical: ± 30deg.
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Projection Tilt Option
Yes
Built-in Speaker
10W
Inputs/Outputs
2x 15-pin VGA Video (Input)
1x HDMI Audio/Video (Input)
1x DisplayPort Video (Input)
1x RCA Composite Video (Input)
1x S-Video Video (Input)
1x 1/8" (3.5 mm) Mini Audio (Input)
1x 15-pin VGA Video (Output)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x RS-232C Control/Service (Input)
1x Ethernet Control/Service (Input)
1x 5-BNC Video
1x IR Control
Watts
330W
Eco Mode: 264W
Life
Normal Mode: 3000 Hours
Eco Mode: 4000 Hours
Fan Noise
Eco Mode: 31 dB
Normal Mode: 38 dB
Remote Control
Yes
Power Requirements
100-240 VAC, 50/60 Hz
Power Consumption
Normal Mode: 464W
Eco Mode: 372W
Standby Mode: 16W
Temperature
Operating
41 to 104 deg.F (5 to 40 deg.C)
Humidity: 20 - 80%
Storage
-14 to 122 deg.F (-25 to 50 deg.C)
Humidity: 20 - 80%
Dimensions (WxHxD)
19.7x14.4x6.5" / 50.04x36.58x16.51 cm
Weight
17 lb / 7.71 kg
