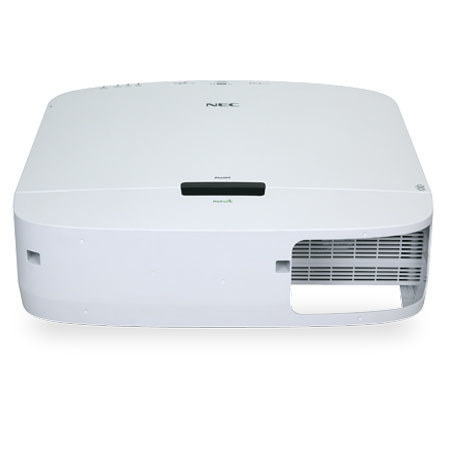

About the NEC NP-PA600X

The NEC NP-PA600X Professional Installation Projector is one of NEC's stackable projectors. No, you don't stack them on top of each other. You can place up to four of them side by side in a row to project one luminously bright and perfectly aligned image. With four NP-PA600Xs that's an image. That's an incredible 24,000 lumens bright. It's ideal for larger sized screens. The NP-PA600X can project a 500" (12,700mm) image or where there is a great deal of ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.

The NP-PA600X offers much more, however. It's network ready thanks to an RJ45 jack for wired networks. Each projector has its own HTTP page and a group of projectors can be managed from a single remote location. You can even have a projector email you a status report when certain events occur, like when the lamp is nearing the end of its life.

Unlike many projectors the NP-PA600X is backed up by a full line of bayonet-style lenses. Capture your audience's attention with this bright and bold projector. NEC's 6000-lumen PA600X is an advanced professional installation model that appeases corporate and higher education users.

NEC NP-PA600X Includes

  • NEC NP-PA600X Professional Installation Projector
  • Remote Control with Batteries
  • Remote Control Cable
  • Power Cord
  • RGB Signal Cable
  • User Manual
  • Built-In Lens Cover
  • Quick Start Guide
  • Product Registration Card
  • Wired & Wireless Network Setup Guide
  • Lens Anti-Theft Screw
  • NEC 3 Year Projector and 1 Year Lamp Warranty

NEC NP-PA600X Features

  • Integrated Device Technology HQV is a high-performance video processing/scaling system designed for computer signals as well as standard or high-definition video
  • Bright enough for most applications: 5000 lumens
  • Geometric correction tool allows you to project on spheres, cylinders and more
  • Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability)
  • Integrated high-speed wireless LAN IEEE 802.11b/g
  • Desktop control allows you to securely transmit information wirelessly to the projector from a docking station or PC in another room
  • Image Express Utility (IEU 2.0; compatible with Windows or Mac operating systems) dedicated projector software provides wired and wireless data transmission via peer-to-peer or over the network
  • Broadcast mode allows you to send information from one computer to several projectors
  • Windows Network Projector function within Windows Vista connects directly to networked projectors without the need for additional proprietary software
  • Windows Remote Desktop function allows you to control a networked computer by connecting a USB mouse and keyboard directly to the projector's USB input
  • Windows Network Drive function displays multimedia files (.jpeg, .bmp, .png, .mpeg2 or .wmv9) in the Windows shared folder on a local network using the Viewer function-all without bringing your PC into the conference room
  • Windows Media Connection function displays multimedia files (.mpeg2, .jpeg or .wmv9) stored on the Windows Media Connect server or a local network using the Viewer function-all without bringing your PC into the conference room
  • Cabinet control lock setting enables user to deactivate buttons on cabinet to prevent unwanted changes to projector settings
  • Logo lock restricts changes to logo saved in projector memory
  • Password protection restricts unauthorized use of projector
  • Email notification informs the system administrator when the lamp approaches the end of its useful life
  • Enjoy greater installation flexibility with up to 60% vertical lens shift and +/- 30% horizontal lens shift
  • The NP-PA600X can be rotated freely (360deg.) in order to point up or down depending on the installation requirements
  • Extended lamp life with Eco-Mode technology increases lamp life up to 4000 hours, while lowering power consumption
  • Power management enables projector to automatically turn off when an incoming signal is not detected from any of the inputs
  • Auto Power On via the RGB (15-pin) input connector when a signal is detected from a computer
  • Carbon savings meter calculates the positive effects of operating the projector in Eco-Mode, which is encouraged by an optional message at startup. A green Eco-Mode button on the remote control makes the switch easy
  • Quick start (3 to 4 seconds) lets you begin presenting in seconds while quick shutdown (immediate power off with no cooling required after shutdown) ensures efficient energy usage
  • Sleep timer can be set to automatically turn off the projector at set countdown times
  • Low power consumption (0.2W in standby mode) minimizes energy costs

NEC NP-PA600X Specifications

Display System 0.79" / 2.01 cm Micro Lens Array (MLA) LCD
Native Resolution XGA - 1024 x 768
Supported Resolutions VGA
UXGA - 1920 x 1200
Format NTSC 4.43
PAL 60, M, N
HDTV Compatibility 480i
Pixels 786432
Brightness 6000 Lumens
Contrast Ratio 2000:1
3D None
Scan Horizontal: 15 - 108 kHz
Vertical: 48 - 120 Hz
Lens F 1.7 - 2.2 (f = 24.4 - 32.5 mm)
Zoom Ratio 1-1.33x
Throw Distance 2.5 - 68.5' (0.76 - 20.88 m)
Throw Ratio 1.5 - 3:1
Projection Size 25 - 500" (635.00 - 12700.00 mm)
Keystone Correction Vertical: ± 30deg.
Horizontal: ± 40deg.
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option Yes
Built-in Speaker 10W
Inputs/Outputs 2x 15-pin VGA Video (Input)
1x HDMI Audio/Video (Input)
1x DisplayPort Video (Input)
1x RCA Stereo (L/R) Audio (Input)
1x S-Video Video (Input)
1x 1/8" (3.5 mm) Mini Audio (Input)
1x 15-pin VGA Video (Output)
1x RS-232C Control/Service (Input)
1x Ethernet Control/Service (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x 5-BNC Video
1x IR Control
Watts 330W
Life Normal Mode: 3000 Hours
Eco Mode: 4000 Hours
Fan Noise Eco Mode: 31 dB
Normal Mode: 38 dB
Remote Control Yes
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption Normal Mode: 464W
Eco Mode: 372W
Standby Mode: 16W
Temperature Operating
41 to 104 deg.F (5 to 40 deg.C)
Humidity: 20 - 80%
-14 to 122 deg.F (-25 to 50 deg.C)
Humidity: 20 - 80%
Dimensions (WxHxD) 19.7x14.4x6.5" / 50.04x36.58x16.51 cm
Weight 17 lbs / 7.71 kg
