| Display Technology |
DLP (0.55" DMD) |
| Light Output (Lumens) |
2600 normal / Eco = approx. 70% of normal mode |
| Resolution |
Native: SVGA 800 x 600 Maximum: UXGA 1600 x 1200 |
| Contrast Ratio (up to) |
2000:1 |
| Lamp Type |
180W AC |
| Lamp Life (up to) |
3500 hours normal / 5000 hours eco |
| Screen Size (diagonal) |
33 to 300 in |
| Throw Ratio |
1.95 to 2.15 |
| Projection Distance |
3.9 to 39.4 ft. / 1.2 to 12m |
| Projector Angle |
12.7deg. tele / 14deg. wide |
| Lens |
Zoom: 1 to 1.1 Focus: Manual F number, fnumber: F=2.41 to 2.55, f=21.83 to 24mm |
| Keystone Correction |
+/- 40deg. |
| Scan Rate |
Horizontal: 15-100 kHz Vertical: 50-120 Hz |
| Supported Video Standards |
NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
| SD/HD Video Signal Compatibility |
480p, 576i, 576p, 720p, 1080i |
| PC Signal Compatibility |
SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA |
| Macintosh Compatibility |
Yes |

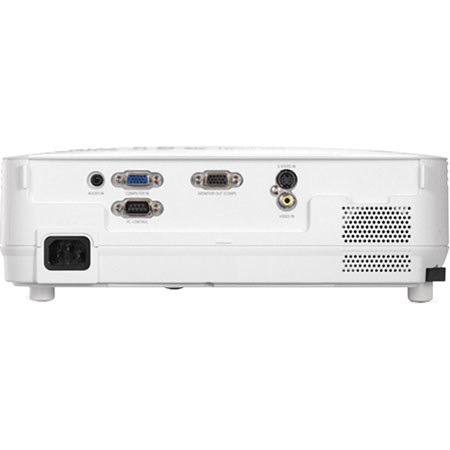

| Input/Output Terminals |
RGB1(analog): VGA 15-pin D-sub, Component video using ADP-CV 1E Video 1: RCA Video 2: S-Video Audio 1: 1/8 in. stereo Monitor out: VGA 15-pin D-sub |
| Audio |
7W speaker |
| External Control |
RS-232, IR |
| Sync Compatibility |
Separate Sync / Composite Sync / Sync on G |
| Power Requirements |
100-240V AC, 50/60 Hz |
| Input Current |
2.6A |
| Power Consumption |
278W / 216W / 4W / 0.5W (Normal/ECO Mode/Standby/Standby Power Saving) |
| Operating Temperature |
41-104deg.F / 5-40deg.C |
| Storage |
-4-122deg.F / -20-50deg.C |
| Fan Noise |
34 dB normal / 31 dB eco |
| Regulations |
USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM |
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
| Dimensions (W xD x H) |
12.2 x 9.7 x 3.7 in / 309.88 x 246.38 x 93.98 mm |
| Weight |
5.5 lbs. / 2.5 kg |
