NEC OPS-PCAF-WS Open Pluggable Specification (OPS) PC with 1.6 GHz AMD Dual Core Fusion, 32GB SSD, Windows 7 Embedded

See all NEC items
SKU: NCOPSPCAFWS MFR: OPS-PCAF-WS
Free Shipping

See all shipping options

Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. learn more / Notify when in stock

Our Price

$949.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

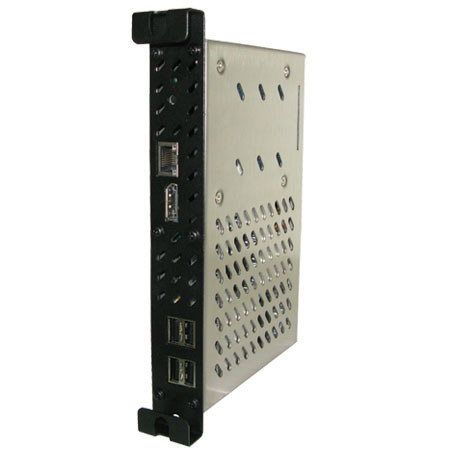

NEC OPS-PCAF-WS: Picture 1 regular $949.00

About NEC OPS-PCAF-WS

The NEC OPS-PCAF-WS Open Pluggable Specification (OPS) is the industry's first standardized input, which increases flexibility for users of any digital signage application. This OPS single board computer features a 1.6 GHz AMD Dual Core Fusion CPU and were designed with display integration in mind. Used with select NEC displays expansion slots, this solution eliminates the need for an external PC, cabling, mounting and power supply.

Featuring dual video outputs with DVI for internal display support and DisplayPort for external display support, the units also include integrated Display Control via an internal RS-232 connection. This module has been optimized for reliable 1080p video playback and, with support for Windows OS, has the flexibility to run most third-party software and custom applications. These benefits make NEC's OPS single board computer ideal for markets such as digital signage, quick-service restaurants, education, medical, retail and rental staging.

NEC OPS-PCAF-WS Features

  • No external connections required. PC signal, audio and control signals all passed internally from display to OPS device
  • Seamless design provides for clean, hidden integration that eliminates the need for external components. Service can be performed while the display is still mounted, simplifying installation and reducing maintenance
  • 1.6 GHz AMD Dual Core Fusion CPU with integrated HD 6310 GPU offers flexibility for robust performance to process digital signage content, rendering beautiful imagery
  • True 1080P video with hardware assisted support for formats such as MPEG2, H.264 and WM9
  • Small but powerful with an all-metal chassis make this an ideal solution for commercial applications requiring an integrated PC

NEC OPS-PCAF-WS Specifications

CPU
1.6 GHz AMD Dual Core Fusion (T56N)
GPU
Integrated HD 6310
RAM
2GB DDR3
Hard Drive
32GB SSD
Video Output
External DisplayPort
Audio Output
External DisplayPort
Network Connections
Gigabit Ethernet
Control I/O
USB 2.0 x 4
Video Format Support
1080p, MPEG/2, H.264, WM9
Graphics Format Support
JPEG, BMP, TIFF, GIFF
Browser Support
HTML, Flash, Javascript
Audio Format Support
MP3, PCM, AAC
Network Protocol Support
Internet (IP, TCP, UDP, ICMP, ARP, DHCP, HTTP, FTP, IGMP, RTP, RTSP, SNMP)
Power
16VDC Input Voltage, Power Dissipation (35W)
Operating Temperature
32deg. - 104deg.F / 0deg. - 40deg.C
Operating Humidity
80% maximum relative humidity, non-condensing
Certifications
CE, FCC Section 15
Operating System
Windows 7 Embedded
Compatibility
NEC X461S, X551S
Compatible with SB-02AM
NEC V422, V462, V551, V651, P402, P462, P552, P702, X551UN
Dimensions (W x H x D)
7.1" x 1.2" x 4.6" / 180.34 x 30.48 x 116.84 mm
Weight
2.5 lbs. / 1.13 kg
Mfr #
OPS-PCAF-WS
SKU
NCOPSPCAFWS
