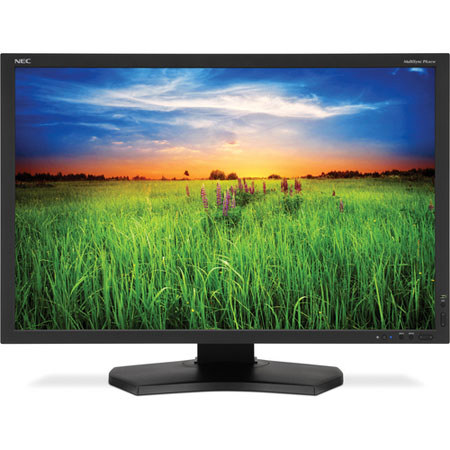

NEC PA301W 30" Widescreen Professional Graphics Desktop Monitor
NEC

NEC PA301W 30" Widescreen Professional Graphics Desktop Monitor, 1000:1 Contrast Ratio, 2560x1600 Resolution, 7 ms Response Time

SKU: NCPA301WBK MFR: PA301W-BK
What's Included
What's Included With This Item:
  • NEC PA301W 30" Widescreen Professional Graphics Desktop Monitor
  • Power Cord
  • DVI Cable
  • USB Cable
  • Mounting Screws
  • DisplayPort Cable
  • NEC 4 Years Parts & Labor Limited Warranty
Write a Review
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

$2,299.00 Special Price Available
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the NEC PA301W

The NEC PA301W 30" Widescreen Professional Graphics Desktop Monitor is a computer monitor that is suitable for use in color-critical applications. The large display features a native resolution of 2560 x 1600, allowing you to work with high-resolution graphics and video with ease. The display features two Dual-Link DVI-D and two DisplayPort inputs.

The display boasts a 1000:1 contrast ratio, a 350 cd/m2 brightness rating, a 7 ms response time and 178-degree/178-degree viewing angles. It can reproduce 98.2% of the Adobe RGB color space at any given time, making it an ideal display for use with industry-standard Adobe creative software.

Its desktop stand supports tilt, swivel, height and pivot adjustment, allowing you to position it to best suit your needs. The display's integrated USB 2.0 hub features three device ports and two computer ports, allowing you to share connected peripherals between two computers.

NEC PA301W Includes

  • NEC PA301W 30" Widescreen Professional Graphics Desktop Monitor
  • Power Cord
  • DVI Cable
  • USB Cable
  • Mounting Screws
  • DisplayPort Cable
  • NEC 4 Years Parts & Labor Limited Warranty

NEC PA301W Features

  • 98.2% coverage of Adobe RGB color space
  • Superior screen performance (1000:1 contrast ratio, 2560x1600 native resolution, 350cd/m2 brightness)
  • Supports 14-bit 3D internal programmable lookup tables (LUTs) for calibration
  • DisplaySync Pro controls two computers with only one keyboard and mouse
  • Color Vision Emulation for type P/D/T supporting Color Universal Design
  • AmbiBright ambient light sensor automatically adjusts the display's brightness based on lighting conditions
  • MultiProfiler software provides complete control over the five picture modes, including the loading of any ICC profile directly into the monitor for optimal color space matching
  • Wide connectivity includes two DisplayPort and two DVI-D inputs as well as a USB hub

NEC PA301W Specifications

Panel Technology IPS
Viewable Image Size 29.8"
Aspect Ratio 16:10
Native Resolution 2560 x 1600
Pixel Pitch 0.25mm
Pixels Per Inch 101@ native resolution
Backlight Type CCFL
Brightness (typical) 350cd/m2
Contrast Ratio (typical) 1000:1
Viewing Angle (typical) 178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) @ CR>10
Response Time (typical) 7ms
Color Gamut Adobe RGB Coverage/Size: 98.2% / 106.7%
NTSC Coverage/Size: 93.3% / 102%
sRGB Coverage/Size: 100% / 144%
Lookup Table 14-bit (3D)
Displayable Colors 1.07 billion out of 4.3 trillion 1.07 billion out of 4.3 trillion
Synchronization Horizontal 31.5-98.7 kHz (Digital only)
Synchronization Vertical 30-87 Hz
Input Connectors DisplayPort (2), DVI-D Dual Link (2)
Hub Ports 3x USB 2.0 (A)
2x USB 2.0 (B)
Audio Input No
Headphone Jack No
Speakers No
Buttons Power, Input/Select, Menu, Left/Right, Up/Down, Reset/PIP
On-Screen Display Yes
Auto Configuration Yes
Tilt/Swivel Range Tilt: Yes
Swivel: Yes
Height: 5.9" (15cm)
Pivot: Yes
Power Consumption (typical) On: 155W
Power Savings Mode: 1.7W
VESA Hole Configuration 100 x 100mm, 200 x 100mm
Operating Temperature 41-95deg.F / 5-35deg.C
Operating Humidity 30-80%
Operating Altitude 10,000 ft. / 3048m
Storage Temperature 14-140deg.F / -10-60deg.C
Storage Humidity 10-85%
Storage Altitude 40,000 ft. / 12,192m
Environmental Compliance TCO: 5.0
RoHS: Yes
Dimensions (W x H x D) With Stand: 27.1 x 18.4-24.3 x 11.9 in. / 688.3 x 467.4-617.2 x 302.3mm
Without Stand: 27.1 x 17.6 x 4.9 in. / 688.3 x 447 x 124.5mm
Weight With Stand: 41.5 lbs. / 18.8 kg
Without Stand: 27.6 lbs. / 12.5 kg
