NEC 30" Color Critical Desktop Monitor with SpectraViewII, 16:10 Aspect Ratio, 340cd/m2 Brightness, 1000:1 Contrast Ratio, 2560x1600 Resolution, Black

See all NEC items
NEC PA302W-SV: Picture 1 thumbnail NEC PA302W-SV: Picture 2 thumbnail NEC PA302W-SV: Picture 3 thumbnail

About NEC PA302W-SV

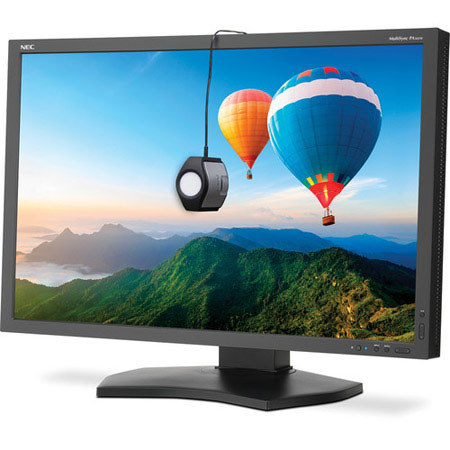

The NEC 30" Color Critical Desktop Monitor with SpectraViewII (Black) is an ultimate desktop display for color-critical applications. The innovative GB-R LED backlight provides 99.3% coverage of the Adobe RGB color space while consuming up to 44% less power than comparable CCFL backlights. The monitor is equipped with the SpectraView II color calibration solution. In addition, it utilizes a high-performance AH-IPS LCD panel combined with the SpectraSensor Pro Color Calibration Sensor.

The monitor features the MultiProfiler software that provides complete control over five picture modes, plus the loading of any ICC profile directly into the monitor for optimal color space matching. In addition, it features DisplaySync Pro technology, which allows you to control two computers with a single keyboard and mouse. The monitor also provides wide connectivity options, including both regular and Mini DisplayPort with 10-bit support, 10-bit HDMI, a DVI-D input as well as a USB hub.

NEC PA302W-SV Features

  • GB-R LED backlight consumes 44% less power than a comparable CCFL backlight
  • 99.3% coverage of AdobeRGB color space
  • Superior screen performance (1000:1 contrast ratio, 2560x1600 native resolution, 340cd/m2 brightness)
  • SpectraViewII calibrates the 14-bit 3D internal programmable lookup tables (LUTs) for precise color
  • Five completely customizable picture modes
  • MultiProfiler software provides complete control over the five picture modes, including the loading of any ICC profile directly into the monitor for optimal color space matching
  • DisplaySync Pro controls two computers with only one keyboard and mouse
  • Wide connectivity includes both regular and Mini DisplayPort with 10-bit support, 10-bit HDMI, a DVI-D input as well as a USB hub
  • DisplayPort cable compatibility notice
  • NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations

NEC PA302W-SV Specifications

Panel Technology
Viewable Image Size
Aspect Ratio
Native Resolution
2560 x 1600
Pixel Pitch
Pixels Per Inch
101 at native resolution
Backlight Type
PWM Frequency
49 KHz
Brightness (typical)
Contrast Ratio (typical)
Viewing Angle (typical)
178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) at CR>10
Response Time (typical)
Color Gamut
Adobe RGB Coverage/Size: 99.3% / 108.6%
NTSC Coverage/Size: 94.8% / 103.7%
sRGB Coverage/Size: 146.4% / 100%
Lookup Table
14-bit (3D)
Displayable Colors
1.07 billion out of 4.3 trillion
Horizontal (Analog/Digital)
31.5-98.7 kHz (Digital only)
50-85 Hz
Input Connectors
DisplayPort, Mini DisplayPort, HDMI, DVI-D Dual Link, USB hub (2 up/ 3 down) with DisplaySync Pro
Power Consumption (typical)
On: 87W
Power Savings Mode: 1.4W
VESA Hole Configuration
100 x 100mm, 200 x 100mm
Operating Temperature
41-95deg.F / 5-35deg.C
Operating Humidity
20-80% 20-80%
Operating Altitude
16,404 ft. / 5000m
Storage Temperature
14-140deg.F / -10-60deg.C
Storage Humidity
Storage Altitude
40,000 ft. / 12,192m
Dimensions (W x H x D)
With Stand: 27.1 x 18.4-24.3 x 11.9" (688.3 x 466.4-617.2 x 302.3mm)
Without Stand: 27.1 x 17.6 x 3.2" (688.3 x 447.0 x 81.3mm)
With Stand: 37.5lbs (17.0kg)
Without Stand: 23.6lbs (10.7kg)
