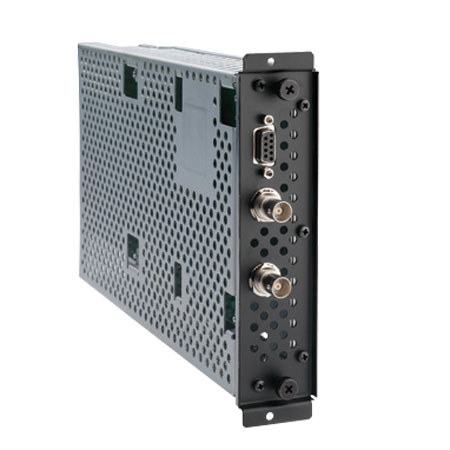

NEC HD-SDI Input Card for LCD-4020 and LCD-4620 Displays

See all NEC items
SKU: NCSBL007KK MFR: SB-L007KK

Original Price: $1,199.99 Special Price Available

See all shipping options

Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. learn more / Notify Me

27% Off
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About NEC HD-SDI Input Card

Achieve broadcast-grade video with the NEC HD-SDI Input Card that provides an HD-SDI input without using additional space or power. It is designed for use with NEC M Series and NEC MultiSync 20 Series large-screen LCD displays. This expansion board provides an SD/HD SDI input and loop through.

NEC HD-SDI Input Card Specifications

NEC Displays Supported
NEC M Series:
40" M40-AV
40" M40B-AV
46" M46-AV
46" M46B-AV
NEC MultiSync 20 Series:
40" LCD4020-AV
40" LCD4020-IT
40" LCD4020-2-AV
40" LCD4020-2-IT
46" LCD4620-AV
46" LCD4620-IT
46" LCD4620-2-AV
46" LCD4620-2-IT
52" LCD5220-AV
65" LCD6520L-BK-AV
65" LCD6520P-BK-AV
HD-SDI Video Input
SMPTE259M at 270Mb/s
SMPTE292M to 1485Mb/s: 1x via BNC Connector
Video Processing: 24-bit, 4:4:4
HD-SDI Video Output
Active Looping Signal: Equalized & Relocked
Audio Extraction
Input Format: HD-SDI
Number of Channels: 1 stereo channel
Sample Rate: 48 kHz
Input Signal
525-line SD-SDI at 29.97Hz
625-line SD-SDI at 25Hz
720p HD-SDI at 50Hz, 59.94 Hz, 60Hz
1080p HD-SDI at 23.98Hz, 24Hz
1035i HD-SDI at 29.97Hz, 30Hz 1080i HD-SDI at 25Hz, 29.97Hz, 30Hz
Digital Video Output Signal
525-line progressive DVI-D at 29.97Hz
625-line progressive DVI-D at 25Hz
720-line progressive DVI-D at same frame rate as input
1080-line progressive DVI-D at same frame rate as input
1035-line interlaced DVI-D at same frame rate as input
1080-line interlaced DVI-D at same frame rate as input
Operating Temperature
5deg.C to 35deg.C / 41deg.F to 95deg.F
Storage Temperature
0deg.C to 60deg.C / 32deg.F to 140deg.F
Humidity
10% to 80%
Regulatory Approvals
FCC-A, DOC-A, CE
Dimensions (WxHxD)
155x40x287mm / 6.10x1.57x11.29"
Weight
0.98kg / 2.16 lbs
Mfr #
SB-L007KK
SKU
NCSBL007KK
