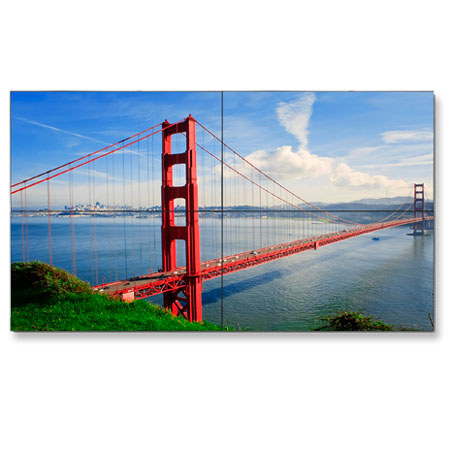

NEC X551UN-TMX4D 55" 2X2 TileMatrix Digital Video Wall Solution
NEC

NEC X551UN-TMX4D 55" 2x2 TileMatrix Digital Video Wall Solution, 1920x1080 Resolution, 0.63mm Pixel Pitch, 60 Hz Refresh Rate

SKU: NCX551TMX4D MFR: X551UN-TMX4D
What's Included
What's Included With This Item:
  • NEC (4) X551UN Displays
  • 2x2 Mounting System
  • (4) DVI Loop Through Cables
  • (1) 4m DVI Cable
  • (3) Null Modem Cables
  • Tripp Lite Surge Suppressor
  • Power Cord
  • Batteries
  • CD-ROM (User Manual)
  • Clamp
  • Cable Cover
  • Screws
  • NEC 3 Years Parts and Labor Limited Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

29,432.95
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the NEC X551UN-TMX4D

The NEC X551UN-TMX4D 55" 2 x 2 TileMatrix Digital Video Wall Solution delivers an all-in-one, easy-to-config-ure and cost-effective solution that is ideal for dynamic digital signage, information display and command & control applications. Exclusive TileMatrix and TileComp technologies, combined with the ultra-narrow bezel of the NEC X551UN, provide for a near seamless video wall without the need for additional third-party equipment.

NEC X551UN-TMX4D Includes

  • NEC (4) X551UN Displays
  • 2x2 Mounting System
  • (4) DVI Loop Through Cables
  • (1) 4m DVI Cable
  • (3) Null Modem Cables
  • Tripp Lite Surge Suppressor
  • Power Cord
  • Batteries
  • CD-ROM (User Manual)
  • Clamp
  • Cable Cover
  • Screws
  • NEC 3 Years Parts and Labor Limited Warranty

NEC X551UN-TMX4D Features

  • Premium-grade panel with additional thermal protection
  • Enhanced Digital Signage Technology Suite
  • TileMatrix allows you to create video walls (up to 10 x 10 displays) with enhanced setup features
  • Copy function allows you to apply the settings from one display to all others
  • Thin-bezel design provides for some of the smallest bezel widths in the industry (5.5 mm screen-to-screen width)
  • Industry's most extensive display control, including RS-232, Ethernet connectivity, NaViSet software and DDC/CI standard
  • Tripp Lite Isobar-6 surge suppressor features six outlets

NEC X551UN-TMX4D Specifications

Panel Technology SPVA (P-DID)
Viewable Image Size 55"
Native Resolution 1920 x 1080
Pixel Pitch 0.63mm
Pixels Per Inch 47@ native resolution
Brightness (typical) 500cd/m2
Contrast Ratio (typical) 4000:1
Viewing Angle 178deg. Vert., 178deg. Hor. (89U/89D/89L/89R) @ CR>10
Refresh Rate 60Hz
Aspect Ratio 16:9
Active Screen Area 47.6 x 26.8 in. / 1209.6 x 680.4mm
Orientation Landscape/Portrait
Displayable Colors More than 16.7 million
Synchronization Range Horizontal (Analog/Digital): 31.5-91.1 kHz
Vertical: 50-85 Hz
Input Signal Video: Analog RGB 0.7 Vp-p/75 Ohms
Sync: Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
PC Signal Compatibility Yes
Macintosh Compatibility Yes
Input Terminals Digital: DisplayPort, HDMI, DVI-D
Analog: VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD or Video), BNC Composite, S-Video
Audio: RCA Audio, Stereo Mini-Jack (2), HDMI Audio
External Control: RS-232C, LAN, IR Remote, DDC/CI
Output Terminals Analog: BNC Composite
Audio: Stereo Mini-Jack, External Speaker Jack (2)
Digital: DisplayPort, DVI-D
External Control: RS-232C, IR Remote
Power Consumption (typical) On: 190W
ECO Mode Standby: <1W
VESA Hole Configuration 400 x 400mm (4-hole)
Bezel Width (Left/Right, Top/Bottom) 0.15 in./0.07 in., 0.15in./0.07in.; 3.7mm/1.8mm, 3.7mm /1.8mm
Dimensions (W x H x D) With stand: 47.8" x 30.1" x 15.7" / 1214.12 x 764.54 x 398.78 mm
Without stand: 47.8" x 27" x 5" / 1214.12 x 685.8 x 127 mm
Weight With stand: 79.2 lbs / 35.93 kg
Without stand: 77 lbs / 34.93 kg
