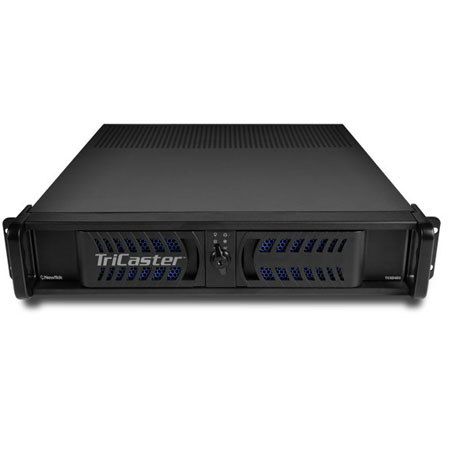

Newtek TriCaster 450 Full Unit

SKU: NETC450FU MFR: 45000190-0101
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price


Add to Wishlist In Stock

Protect your investment

About the NewTek Newtek 450 Full Unit

The Newtek TriCaster 450 is slender in design with robust 14-channel, 2U rack mount system. TriCaster 450 can also be paired with the TriCaster 450 CS optional control surface for a physical connection to the system interface. Paired with the optional TriCaster 450 CS control surface and the TriCaster 850 TW, you get a hands-on connection to every source and function. Stream live to the Web in resolutions up to 720p - with the push of a button. Apple AirPlay support to deliver video and audio into your live production, with iOS devices like iPod, iPad and iPhone.

NewTek Newtek 450 Full Unit Features

  • Connect up to four HD and/or SD live cameras
  • Make changes on the fly with TriCaster 450 CS and TriCaster 850 TW
  • Push one button to live stream, with simultaneous archive
  • Push one button to record, with adjustable audio headroom
  • Get up to 20 hours of HD recording
  • Configure, store and import your favorite streaming set-ups as presets
  • Access online CDN accounts, even during live production, with an integrated Web browser
  • Create and save complex switcher effects to a single button
  • Get 20 HD live virtual sets and advanced matte generation to get the look of a sophisticated studio setting in a limited space
  • Create custom virtual sets or double-box effects with optional TriCaster Virtual Set Editor (VSE)
  • Expand your workspace with multi-view monitor output
  • Get a multi-channel audio mixer with audio follows video support
  • Connect a projector or big screen for IMAG video output
  • Use as a desktop or rack mount system

NewTek Newtek 450 Full Unit Specifications

Video Processing 4:4:4:4
32-bit Floating Point
Audio Processing 4 channels, 96 kHz
32-bit Floating Point
Video Input 4 simultaneous inputs.
Any combination of: HD-SDI, HD Component, SD-SDI, SD Component, Y/C (BNC) or Composite.
HD-SDI Video Conforms to SMPTE 292M and SD Video Conforms to SMPTE 259M and ITU-R BT.656
Audio Input 4 SDI Embedded
3 x 2 Balanced 1/4" (Mic/Line)
1 x 2 Balanced XLR (Mic/Line)
Analog Audio Levels Conform to SMPTE RP-155
Phantom Power Support
Video Output 2 simultaneous outputs
HD-SDI, HD Component, SD-SDI, SD Component, Composite, Y/C (BNC)
HDMI, DVI and VGA output for monitors and/or projector
Output sources include Program out and AUX out (configurable for Program, Program clean, Preview, any input, Effects, any frame-store, alpha out)
Audio Output 2 SDI Embedded
1 x 2 Balanced XLR
1 x 2 Balanced 1/4" (AUX)
1 Stereo 1/4" (Phones)
Supported Formats NTSC: 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p, 720/24p, 480/60i
Multi-Standard: NTSC-J; PAL 1080/25p, 1080/50i, 720/50p, 720/25p 576/25i
Source Mixing Mix HD/SD resolution and 16:9/4:3 aspect ratios
Recording MPEG-2 (normal and high profile); MP3
Full HD recording of Program output or AUX output in all resolutions up to 1080p
Recording Capacity 20 Hours (1080i)
1 trayless SATA III removable drive bay with hot-swap support for unlimited storage and backup
Live Streaming Full HD live streaming in resolutions up to 720p (16:9 aspect ratio), with simultaneous archive
Streaming Profile Manager with integrated Web browser for access to online CDN accounts to manage or view shows
Supported Stream Types Adobe Flash to Flash media server connections or through browser based plug-ins
Microsoft Windows Media Push/Pull
Support for most common stream profiles
Support for custom multi-bitrate streaming profiles
Network Connection 1 Gigabit connection for network inputs and streaming output
Network Source Support 2 dedicated channels for access to external network sources
PC and Mac displays mirrored via NewTek iVGA technology, iTunes and wireless iOS devices via Apple AirPlay on any supported apps, including audio, photos and video
Virtual Inputs 4 independent, mix/effect-style channels, each with presets, overlay and dedicated channel for titles, frame-buffer or watch folder
Virtual Input Overlay 1 per channel, upstream with keying, transitions and independent effects, including positioning, scaling, cropping and 3D rotation
Live Virtual Sets 20 HD live TriCaster virtual sets, with animated zoom and independent effects, including positioning, scaling, cropping and 3D rotation
Overlay Dual downstream keys (DSK) with matting, transitions and independent effects, including positioning, scaling, cropping and 3D rotation
Media Players 4 integrated digital media players, including 2 DDRs, Graphics and Sounds players, with presets and alpha channel support, with individually adjustable audio levels for all clips
Preview Monitors Full field rate displays, including Program, Look-Ahead Preview and source windows configurable for All Monitors, External Monitors, Internal Monitors and Preview Scopes
Multi-View Monitor Output Layout choices include All Monitors, External Monitors, Internal Monitors, Program, Preview, Effects, Preview/Program and Waveform/Vectorscope
Projector Output 16:9 or 4:3 aspect ratio, up to 1920 x 1200 resolution
Integrated Character Generator LiveText2
Nonlinear Editor SpeedEDIT 2
Playback Media Formats Movie files: DNxHD, DV, DVCPro, DVCProHD, MOV, MKV, MJPEG, MPEG (1,2 in all profiles, program or transport streams), AVI, MOV, DV, H.263, H.264, FLV, WMV, MP4 and more
Still formats: PSD, PNG, TGA, BMP, JPEG, EXR, RAW, TIF and more
Audio formats: WAV, MP3, AIFF and more
Export Media Formats Export module is included for batch copying with optional transcoding to a wide variety of different file formats and for a wide variety of different applications and devices
Media types: AVI, DV, DVCPro, MJPEG, MP4, H.264, MPEG-2, DVD, WebM, MOV and more
Presets for external NLEs: Adobe Premiere, Avid Media Composer, Apple FinalCut Pro and more
Presets for all mobile platforms: Android, iPad, iPhone, iPod Touch and more
Signal Monitoring Waveform and Vectorscope displays
Full field rate with color preview
Tally DB 15 connector for 4 PGM row tally lights
Form Factor 2U Rack Mount
Dimensions 19 x 3.5 x 22.5 (in) / 48.3 x 8.9 x 57.2 (cm)
Weight 28 lbs (12.7 kg)
