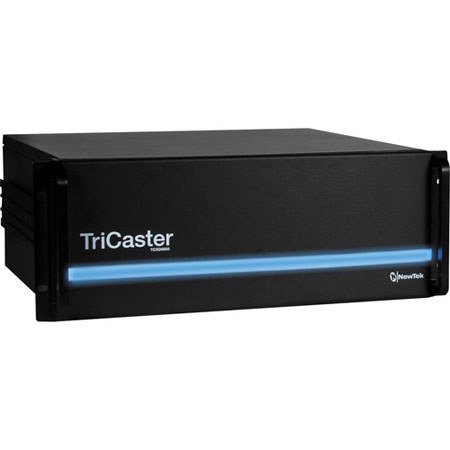

NewTek TriCaster 8000 Educational Live Switcher with Live Streaming, 3D Ready, 8 Live Video Inputs

SKU: NETC8000E MFR: FG-000038-R001
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Expedited Shipping
Add to Wishlist

About this item

The NewTek TriCaster 8000 Educational Live Switcher with Live Streaming is a complete live production and media publishing solution, built to keep pace with the rapidly changing landscape of video production and to unleash the potential of your media strategy with unprecedented versatility.

It starts with a 24-channel switcher, amplified by 8 fully re-entrant M/E rows. It extends to external router support for large-scale, multi-camera production in native full-resolution HD, 8 channels of ISO recording in up to 1080p and live output to up to 14 different display destinations. It boosts your content strategy with integrated social media sharing to publish to your host of social networks live, keeping your brand consistent and your audience engaged. And, with the world's most powerful integrated effects system, it creates a mind-blowing, custom-branded visual masterpiece. TriCaster 8000 lets you blaze your own path through productions of any scale.

Key Features

  • Production of Any Scale: The extraordinary versatility of the 24-channel TriCaster 8000 lets you scale up or down to accommodate every program imaginable. Expand to unprecedented coverage with massive, multi-camera production through external video routers
  • Social Media Integration: In the age of second and third screens, your social media image is critical to developing a following-not to mention, grabbing the attention of sponsors, advertisers and partnership opportunities
  • Endless Customization: TriCaster 8000 stands apart from the most subdued production designs, to the most fanciful-with ease, thanks to an intuitive, endlessly configurable architecture that puts every idea into the realm of possibility
  • Multi-Track ISO Recording: IsoCorder multi-track video recording technology captures incoming sources into the system, saving all your live footage-without the need for racks and racks of video capture equipment
  • Electrifying Visual Effects: Being recognizable, instantly-across all media requires a style that makes an impression on your audience. TriCaster 8000 hosts the most powerful integrated effects engine in live production
  • Sophisticated Sequences-Simplified: With TriCaster 8000, elaborate live production sequences are no longer nail-biters. You know how they'll turn out, because you automate them yourself. String together complex effects and creative elements with macros, seamlessly
  • Stunning Studio Sets and Backgrounds: Even if your "set" is really a multi-purpose room or the corner of a studio, your viewers will only see your professional brand shine through. With TriCaster 8000 system's virtual sets, you can elevate your look with realistic foregrounds & moving backgrounds
  • New Dimensions in Live 3D Video: With the anaglyph filter affect, 3D video streams can be switched just like any other source-without requiring either complex configuration steps, or cumbersome operator manipulations
  • Record Live Streaming Video, Simultaneously: You live for "live" and on-demand, as do your viewers. Gear up right for the modern way to watch-anytime, anywhere-with both Web streaming and program recording built right into your production operation
  • One-Size-Fits-All File Compatibility: A large-scale production environment can easily take on a life of its own. TriCaster 8000 intelligently adapts to the nuances of your creative process, natively supporting a massive array of media formats
  • Remote Audio Control: The integrated multi-channel audio mixer supports a companion Apple iPad application that delivers fingertip control over sound, plus Avid Artist Series hardware control surfaces, if you prefer a more hands-on approach
  • User Interface: Elegant and intuitive, the TriCaster 8000 User Interface provides complete control over live production, streaming, recording and social media publishing operations
  • Workspace: Create a view that works for you. Customize the User Interface and Multiview monitors, populating a variety of layouts with your preferred combination of inputs, outputs, scopes, clocks or images
  • Recordable Macros: Make your favorite series of commands automatic. Record any sequence of operations as a macro event and trigger it with a mouse click, keystroke or control surface action. Talent can also trigger macros by making contact with configurable on-screen hotspots
  • Social Media Share: Publish content instantly to popular social media sites like YouTube, Facebook and Twitter, upload to FTP sites, or transfer to network locations. Share clips and stills during live production or upload your full-length show within moments after production wraps
  • Live Streaming: Launch live streaming video of your show to the Web with simultaneous archive, at the touch of a button. TriCaster 8000 includes presets for the most common streaming profiles, in resolutions up to 720p, with support for custom multi-bitrate stream profiles
  • Grab: The unique view from every angle is up for grabs. Snap photos from one or all cameras, simultaneously; build a collection of HD still images to post to social media sites, or use during the show
  • Recording: Capture video from up to eight individual sources, simultaneously, with integrated IsoCorder multi-track, multi-format recording technology
  • Live Desktop Monitors: Create a custom workspace layout with your choice of virtual monitors. Full field rate displays also include convenient options for additional customization, including safe areas, VU meters and alpha channel transparency display
  • Network Sources: Share computer screens or displays from wireless Apple AirPlay devices, like iPad, iPhone, or iPod, connected to the same local network. TriCaster 8000 also accepts network output signals from NewTek 3Play systems and other TriCaster 8000 systems
  • Look-Ahead Preview Monitor: Set up and preview your next shot before it goes live, including any titles and overlays to be applied
  • Program Montor: View the primary video output signal being broadcast, streamed, projected and/or recorded
  • DDRs: Load and playback video clips, packages and motion graphics. TriCaster 8000 offers native support for an extensive range of file formats, allowing you to work with essentially any media asset you're given
  • Graphics: Display images, apply titles or present static graphics. Choose and edit templates in a variety of styles and designs, or import your own graphics for a custom-branded live production
  • Frame Buffer: Store any image, title or graphic as a selectable source, or dedicate the frame buffer channel to a shareable watch folder for updating assets remotely, using any preferred graphic design application

Technical Specs

Switcher Channels 24 - 10 external, 6 internal, 8 M/E buses
Video Input 8 simultaneous live video sources, configurable as SDI, analog or router inputs, in any combination of HD-SDI, HD Component, SD-SDI, SD Component, Y/C (BNC) or Composite connections and resolutions
Network Sources 2 live sources via Gigabit connection, selectable from any networked computer or Apple AirPlay device
Media 6 integrated digital media sources for video, graphics and sounds
Frame Buffer 9 channels for static graphics or watch folder
Mix/Effect Buses (M/E) 8 re-entrant M/Es with independent 3D positioning, scaling, cropping, keying, transitions and Proc Amp controls
Macros Record operation sequences and attach to keyboard shortcuts, control surface actions or on-screen hotspots
DSKs 4 primary DSK channels and 4 layers of overlay per M/E bus, each with independent transition controls, 3D positioning, scaling, cropping and integrated TransWarp effects
Effects and Transitions Integrated TransWarp effects engine on all effects channels supports standard transitions, customizable animation store transitions with audio and overlay effects
Animation Store Creator for custom animations
Supports per-pixel alpha blending between sources and real-time 3D warping of video or graphics
Virtual Sets 24 HD live virtual sets, with presets, multiple camera angles, real-time reflections and specular highlights
Live pan and zoom of virtual camera and customizable virtual camera presets with animated, pan, zoom and pedestal moves
Hotspots Up to 8 freely configurable, interactive hotspots per input
Video Output Up to 14 configurable connections and 8 A/V output signals
Mix and match output formats, connections and resolutions
HD-SDI, HD Component, SD-SDI, SD Component, Y/C (BNC) or Composite
HDMI and VGA for additional displays or projectors
Network output for live streaming and/or sending A/V output to network-connected TriCaster
Recording Multi-track, multi-format recording of up to 8 simultaneous channels via IsoCorder technology
Native recording in up to 1080p with timecode
Recording Capacity 50 hours 1080i or - 300 hours 480i
4 trayless SATA III removable drive bays with hot-swap support for unlimited storage and backup
Social Media Publishing Integrated application for content upload to YouTube, Facebook, Twitter, Flickr, FTP or network servers
Live Streaming HD live streaming via Gigabit connection, with presets in up to 720p, supporting most common streaming profiles and custom multi-bitrate streaming profiles, configured via browser based plug-ins, Adobe Flash to Flash media server connections or Microsoft Windows Media Push/Pull
Streaming Profile Manager with integrated Web browser and integrated Livestream plug-in
Audio Inputs 8 SDI Embedded
8 x 2 Balanced XLR (Mic/Line)
Phantom Power Support
Audio Outputs 3 SDI Embedded
4 Balanced XLR
4 Balanced XLR (AUX)
1 Stereo 1/4" (phones)
Audio Mixing Integrated multi-channel audio mixer for internal and external audio sources, outputs, stream and headphones
Seven-band equalizer and full stereo compressor/limiter per input and output
Digital audio inputs equipped with audio time-base synchronizers
Supports companion iPad audio mixing app and Avid Artist Series audio control surfaces
Supported Formats NTSC: 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p, 720/24p, 480/60i
Multi-Standard: NTSC-J; PAL 1080/25p, 1080/50i, 720/50p, 720/25p, 576/25i
Playback Media Formats AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG (1, 2, all profiles, program or transport streams), MP4, WMV, WebM, PSD, PNG, TGA, BMP, JPEG, EXR, RAW, TIF, AIFF, MP3, WAV and more, with Import Media application for batch import with optional transcoding of files (including Apple ProRes)
NewTek SpeedHQ codecs for Mac and PC for extended file compatibility with TriCaster and system applications
Export Media Formats Export media application for batch copying with optional transcoding of files to compatible formats for different applications and devices AVI, DV, DVCPro, DVD, H.264, MOV, MPEG-2, MJPEG, MP4, WebM and more
Presets for NLEs Adobe Premiere, Avid Media Composer, Apple Final Cut Pro and more
Presets for mobile platforms Android, iPad, iPhone, iPod Touch and more
Monitoring Freely configurable for any combination of input sources, program, preview, M/E buses, clocks or images
Signal Monitoring Integrated Waveform and Vectorscope, full field rate with color preview and support for ITU-R Rec. 601 and 709
Processing Video: 4:4:4:4, 32-bit Floating Point
Audio: 4 channels, 96 kHz, 32-bit Floating Point
Dimensions 19 x 7.25 x 21.5 in (48.3 x 18.4 x 54.6 cm)
Weight 42 lbs (19 kg)
