Newtek TriCaster Broadcast Full Production Studio
NewTek

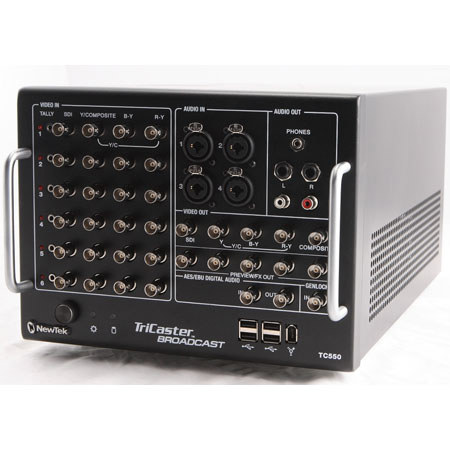

NewTek TriCaster Broadcast Full Production Studio

SKU: NETCBCF MFR: TB080000-0101
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$8,999.00
Free Shipping (USA)
Qty:

Add to Wishlist

About this item

The NewTek TriCaster Broadcast with SDI support, delivers enhanced efficiency and reliability. With audio embedded in the video signal, you can depend on a fast, professional setup. TriCaster Broadcast makes it possible for you to deliver network quality programs to video, projector and Web with a full range of professional tools including six camera inputs, live virtual sets, double box effects and much more.

What's Included With This Item

  • NewTek TriCaster Broadcast Full Production Studio
  • Power Cord
  • VGA/DVI Monitor Adapter
  • iVGA CDROM
  • Keyboard
  • Mouse
  • 7' Crossover Cable
  • NewTek 1 Year Warranty

Key Features

  • LiveSet technology that makes it possible to give a very small space the appearance of large network-style studio
  • Quickly connect and mix six serial digital cameras to provide full coverage of any venue
  • Optional LiveText character generator allows remote control over show titles
  • Dual virtual DDRs can be played on cue for perfect cut-ins every time
  • Either virtual DDR may be used to overlay scrolls, crawls and motion titles
  • Lock titles and graphics upstream to any input,
  • Total flexibility with operation in either six-camera or three-camera mode. Switch six cameras with shared preview or three cameras with a dedicated preview for each
  • Full support for both 4:3 and 16:9 broadcasting provides the option of delivering your program in the traditional TV format or film aspect ratio
  • Multi-format live clip playback
  • TriCaster auto-detects and compensates for aspect on playback
  • NewTek iVGA, makes it possible to add any PC or Mac on the network with TriCaster as a live input
  • Flash, Windows Media and VC-1 streaming support
  • Digital BNC video connectors provide increased durability and reliability for your camera hook-ups
  • Four balanced XLR or phone jack audio connectors for professional audio mixing
  • Simultaneously record full-screen MPEG-2 while archiving your webcast
  • Easily cut to video using the on-board DDRs at any time without needing another person to cue them up

Technical Specs

Video Input 6 Serial Digital
6 Component
Video Output 1 Serial Digital Program out
1 Component Program out
1 Composite Program out
Video Ingest 1, 4-pin IEEE FireWire
1, 6-pin IEEE FireWire
iVGA Network Import Yes - 3 inputs
Virtual Set Support Yes; virtual sets included
On-screen ISO Preview Monitors 3-cam ISO previews or 6-cam shared preview
Projector Output Yes; 4:3 and 16:9 aspects
Camera Auto-Calibration Yes
16:9 streaming Yes
DDR Playback 2 DDRs, with alpha channel assignable to downstream key
Line Inputs 4 XLR/phone
Preview Out Yes, Configurable as FX row output as well
Waveform Monitor Yes
Nonlinear Editor Yes
File Formats AVI, DV, MPEG-2, QuickTime, HDV, JPG, PNG and more
Accessory Options LiveControl LC-11, TimeWarp, LiveText, DataLink
Recording Capacity 20 Hours MPEG-2
Audio Input 4 Balanced XLR
1 Serial Digital Embedded (capture only)
1 AES/EBU Digital Audio in
Audio Output 2 Balanced phone out
1 AES/EBU Digital Audio out
2 unbalanced RCA line out
Tally 6 Tally Light Connections
iVGA Input 1 Ethernet network connection
Integrated Character Generator Yes
16:9 Video Support Yes
Projector Resolutions XGA, SXGA, QSXGA and higher; DVI, HDMI and analog outputs
Live Web Casting Yes; push or pull Windows Media with VC-1 and Flash streaming support
Recorder Simultaneous MPEG-2 + WMV records
Mic Inputs 4 balanced (XLR or phone)
Line Outputs 2 balanced phone; 2 RCA
Vectorscope Yes
Phantom Power Yes
Upstream Effects Yes
Render Outputs AVI, DV, MPEG-2, DVD, QuickTime, MP4 (iPod and PSP)
Dimensions 17.5" D x 8.5" H x 10.4" W
Weight 20 lbs
Warranty NewTek 1 year warranty
