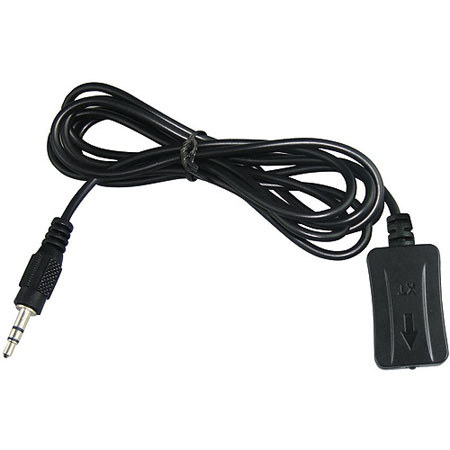

NTW Networking The World IR Transmission Kit with Sender & Receiver, 19.7-26.3' (6-8 m) Transmission Distance, 940 nm Peak Wavelength

See all NTW Networking The World items
SKU: NTDMIAPIRKIT MFR: NHDMI-AP-IRKIT
NTW Networking The World : Picture 1 thumbnail NTW Networking The World : Picture 2 thumbnail

Our Price

$13.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About NTW Networking The World

The NTW IR Transmission Kit features an IR transmitter and IR receiver. It allows the user to transmit IR and remote control signals over distance, which affords the consolidation and storage of equipment in discreet locations - creating a cluster free environment.

NTW Networking The World Features

  • Embedded IR receiver module supports 38 kHz carrier wave and all data formats
  • 4.9' (1.5 m) cables with 1/8" (3.5 mm) plug
  • Supports typical 38K infrared receiver/transmitter and distant range IR passes through
  • Power obtained from interfacing devices
  • IR function can be manual configured

NTW Networking The World Specifications

Cable Type
IR Sender: 1/8" (3.5 mm)
IR Receiver: 1/8" (3.5 mm)
Cable Length
IR Sender: 4.9' (1.5 m)
IR Receiver: 4.9' (1.5 m)
Voltage
0 - 6 V
Operating Temperature
-13 to 176deg.F (-25 to 80deg.C)
Storage Temperature
-40 to 185deg.F (-40 to 85deg.C)
Consumption Current
Typical: 0.8 mA
Maximum: 1.0 mA
Frequency
B.P.F. Center Frequency: 38 kHz
Peak Wavelength
940 nm
Transmission Distance
19.7 - 26.3' (6 - 8 m)
Mfr #
NHDMI-AP-IRKIT
SKU
NTDMIAPIRKIT
