Night Owl Pan/Tilt CCD Camera (420TVL) System

Night Owl
SKU: NTPTSH4224 MFR: CAM-PT-SH420-24
Night Owl 420TVL: Picture 1 thumbnail Night Owl 420TVL: Picture 2 thumbnail Night Owl 420TVL: Picture 3 thumbnail Night Owl 420TVL: Picture 4 thumbnail

Our Price

$149.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Night Owl 420TVL

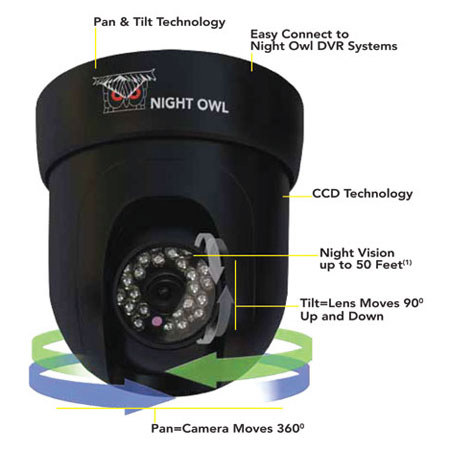

The Night Owl Pan/Tilt CCD Camera (420TVL) System can be connected to a DVR and remotely controlled via Internet tablet PCs or compatible Smartphones. If you see an intruder snooping around your home or office, immediately pan this camera in his direction to take a picture and save it in your computer or PDA. The camera is equipped with a motor that can pan up to 360deg. and tilt up to 90deg. for precise viewing.

With 1/4" CCD image sensor, the indoor camera lets you shoot images at a horizontal resolution up to 420 TVL. Excellent image clarity allows you to identify people from as far as 40' (12 m) during the day. Equipped with 24 LEDs, the cameras can capture night-time footage of objects at a distance up to 50' (15.24 m), making it suitable for monitoring high-risk areas at night.

A 100' (30 m) cable that carries video, power as well as PT controls eliminates the need for managing several cables. In addition, the cable feed-through hides the cable that runs through the ceiling mount bracket, protecting it from vandals. To view the recorded video on a display, you can connect the camera to any Night Owl H.264 DVR.

Night Owl 420TVL Features

  • 1/4" CCD image sensor
  • Resolution up to 420 TVL
  • 6 mm lens
  • 56deg. viewing angle
  • Smooth panning up to 360deg. and tilting up to 90deg.
  • Minimum illumination of 0 lux for surveillance in complete darkness
  • Night vision up to 50' (15.24 m) with 24 LEDs
  • Facial recognition at a distance up to 40' (12 m)
  • Backlight Compensation adjusts video gain to correct the exposure when the object being captured is in front of a bright light
  • Can be connected to a DVR and remotely controlled via Internet tablet PCs or compatible Smartphones
  • Pan/tilt can be controlled via computer or phone
  • Plug-in directly to any Night Owl DVR
  • 100' (30 m) cable runs video, power as well as PT controls
  • Easy-to-install ceiling mounting bracket (ceiling mount only)

Night Owl 420TVL Specifications

Image Sensor
1/4" CCD Sensor
Resolution
420 TVL
Lens
6 mm lens
Viewing Angle
56deg.
Night Vision
Up to 50' (15.24 m) with 24 LEDs
Weather-Proof Rating
For indoor use
Cable
100' (30 m) per camera
Signal
NTSC
Effective Pixels
542 x 492
S/N Ratio
>54 dB
Minimum Illumination
0 lux
Backlight Compensation
Auto
Supported PTZ Protocols
Pelco-P, Pelco-D
Pan
Max. 360deg.
Tilt
Max. 90deg.
Power Supply
DC 12V 1000 mA
Volts
100 / 220 V
Operating Temperature
-14 to 122deg. F (-25.5 to 50deg. C)
Dimensions
Camera only: 5.5x5.5x5.75" / 13.97x13.97x14.60cm
