OConnor

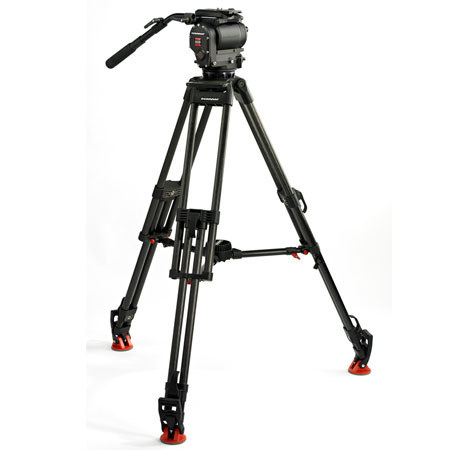

OConnor Ultimate 1030D Fluid Head and 30L Tripod System Package

SKU: OC1030DFH30L MFR: C1237-0111
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$10,237.00 List Price

Our Price

$9,213.00
Free Expedited Shipping
Qty:
Add to Wishlist

About this item

The OConnor Ultimate 1030D Fluid Head and 30L Tripod Package includes the 1030D fluid head with stepless, ultra-smooth pan and tilt fluid drag that is designed specifically to provide control and stability for digital cinematography.

There is also true, accurate balance at any point in the tilt range and the system counterbalances down to zero - a great advantage with today's lighter weight cameras. It also includes the 30L tripod system, a carbon fiber tripod that has a maximum height of 5.15 feet and weighs just 8.8 lb.

A new ergonomic crank-style counterbalance control just pulls out of the rear of the head and the Action Brakes for pan and tilt unlock with a single-handed squeeze. The 1030D supports up to 30 lb (13.6 kg) at 6" (15 cm) COG with a +/- 90 degree tilt range. It accepts the same front box mount as larger heads and is also compatible with other OConnor 1030 accessories. This head is ideal for seamlessly transitioning from heavier to lighter payload camera setups.

What's Included With This Item

  • OConnor 1030D Main Body
  • C1251-0001 30L Tripod Assembly
  • C1252-0001 MLS (Mid Level Spreader)
  • Rubber Feet f/30L
  • 08365 100mm Ball Base Adapter
  • 08395 100mm-Tie Down
  • 08430 Mini European Quick Release with Plate
  • 1030-246 12" Pan Handle with 30 degree Bend
  • 2575-135 11.5" Pan Handle Extension
  • OConnor Warranty

Key Features

  • Stepless, ultra-smooth pan and tilt fluid drag specifically enhanced to provide ultimate control and stability for digital cinematography shooting
  • Sinusoidal counterbalance system provides true, accurate balance at any point in the tilt range
  • The system counterbalances down to zero, a handy advantage since there is a trend to lighter weight cameras
  • Ergonomic crank-style counterbalance control simply pulls out of the rear of the head
  • Action Brakes for pan and tilt unlock through a single-handed squeeze
  • The drag system ensures constant control
  • Interchangeable bases (e.g. 150 mm or Mitchell for the 1030)
  • Accepts the same front box mount as larger heads and offers full compatibility with other OConnor 1030 accessories

Technical Specs

Load Capacity Up to 30 lb (13.6 kg) at 6" (15cm) COG with a +/- 60deg. tilt range
Platform Mini Euro
Handle 30deg.
Diameter/Thread 100mm base
Tilt Drag Yes, stepless
Tilt Range +90deg./-90deg.
Tilt Lock Yes
Pan Lock Yes
Tripod: Material Carbon Fiber
Tripod: Maximum Height 61.8" (157 cm)
Tripod: Minimum Height 22" (56 cm)
Tripod: Folded Length 29.5" (75 cm)
Tripod: Capacity 209 lb (95 kg)
Dimensions Fluid Head: 6.6 x 7.6 x 4.6" (16.76 x 19.3 x 11.68 cm)
Weight Tripod: 8.8 lb (4 kg)
Fluid Head: 8.7 lb (3.9 kg)
