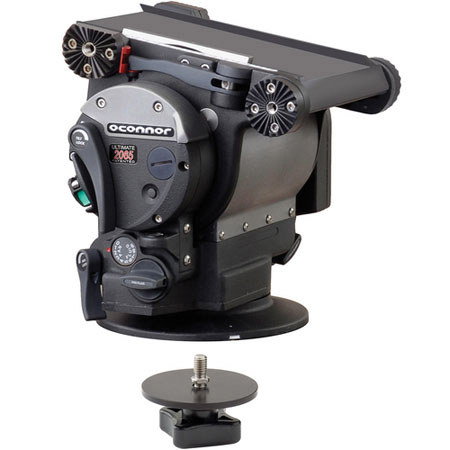

OConnor Ultimate Fluid Head with Mitchell Ball Base and Tiedown for Cameras up to 71 lb

OConnor
SKU: OC2065FHM MFR: C1236-0003

List Price: $11,800.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 2-4 Days learn more

Our Price

$10,620.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

OConnor : Picture 1 regular $10,620.00

About OConnor

The OConnor Ultimate Fluid Head (Mitchell) is a fluid head with a Mitchell ball base and tiedown that incorporates design aspects of its higher payload contemporaries, rendering it suitable for cinematography. Lightweight at 22.9 lb (10.4 kg), the fluid head sustains a heavy payload up to 71 lb (32.2 kg) with greater drag. Conveniently located controls (pan and tilt brakes) at camera operator's side (left side) of the platform enable ease of operation and rapid familiarity.

The platform also houses dual scales for counterbalance and sports 4 handle rosettes that allow left or right hand operation as well as mounting from the front or rear. An intelligently placed, soft hand-rest enhances the Ultimate 2065 fluid head's ergonomic design. The Mitchell ball base provides for high mobility and is secured in place by the Mitchell tiedown.

A single-touch Euro-style platform release lever allows you to disengage the safety catch and open the lever effortlessly, providing high mobility to deal with location changes in the field. You can achieve sinusoidal counterbalance and stepless pan and tilt drag using the Ultimate 2065 Fluid Head.

OConnor Features

  • Highly ergonomic design based on similar heavy payload units
  • Includes a Mitchell ball base and tiedown
  • Lightweight at 22.9 lbs (10.4 kg) and provides easy maneuverability
  • Sustains heavy payloads up to 71 lbs (32.2kg), thereby allowing a wide payload of cameras to be mounted
  • Convenient controls located on the operator side offer ease of use and familiarity
  • Twin platform scales allow simple and rapid counterbalance adjustments
  • Ergonomically designed comfortable handrest on the left side
  • Allows high mobility via the Mitchell ball base and is secured in place by the tiedown
  • Single-touch platform release lever allows easy unlatching of safety catch and unlocking the lever
  • Offers sinusoidal counterbalance as well as stepless pan and tilt drag
  • Suitable for current styles of cinematography involving lighter cameras, larger lenses and innovative accessories

OConnor Specifications

Capacity
At 4" (10.2cm): 89 lbs (40.4kg)
At 6" (15.2cm): 71 lbs (32.2kg)
At 8" (20.3cm): 58 lbs (26.3kg)
Handles
0deg. & 30deg.
Base
Mitchell
Tilt
+90deg. / -90deg.
Counterbalance
Sinusoidal
Drag Control
Pan & Tilt Drag: Stepless
Platform
Platform for 2065: OConnor Plate, 120mm Euro Plate, Panavision Dovetail Plate, Arriflex Dovetail Plate
Dimensions (H x W x D)
8.4" x 12.4" x 8.6" / 21.3 x 31.4 x 21.8 cm
Weight
22.9 lbs / 10.4 kg
Mfr #
C1236-0003
SKU
OC2065FHM
