OConnor

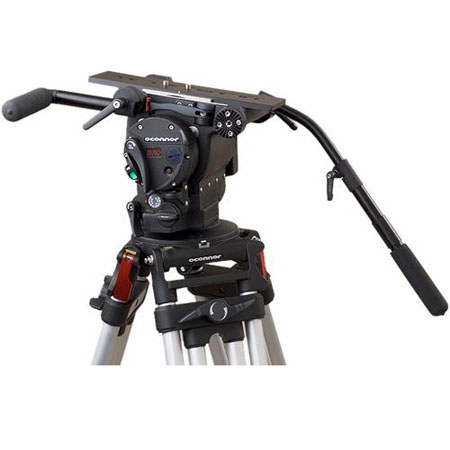

OConnor Ultimate 2575D Professional Fluid Head Package (150mm Base & Mitchell)

SKU: OC2575DFH150 MFR: C1234-0002
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$16,414.00 List Price

Our Price

$14,773.00 $574 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the OConnor 2575D

The OConnor Ultimate 2575D Professional Fluid Head (150 mm Base & Mitchell) is the flagship of OConnor's Ultimate range of fluid head and it features stepless, ultra-smooth pan & tilt fluid drag specifically designed to give you the ultimate control and stability for film style shooting.

With its famous features, the 2575 has become the standard for 35 mm film cameras. It features OConnor's patented sinusoidal counterbalance system for true, accurate balance at any point in the tilt range.

OConnor 2575D Includes

  • OConnor Ultimate 2575D Fluid Head (c/w 150 mm Ball Base & Tiedown)
  • Euro Style Quick Release with 120mm Mounting Plate and Screws
  • 12" Handle with 30 degree Bend
  • 11.5" Handle Extension for 2575-137
  • 150mm Ball Base
  • Required 150mm Tiedown (for 150mm Ball Base 08414)
  • OConnor Warranty

OConnor 2575D Features

  • The new platform has all the controls on the camera operator's side of the head. (i.e. left side)
  • The platform release lever has a one touch finger actuated safety release catch. This allows for one "finger" or hand action to undo the safety catch and open the lever
  • Dual platform scales
  • The platform now has 4 handle rosettes
  • The left side has a "soft" hand rest similar to the 120EX
  • The head uses metric fasteners. This includes the set screws that are used for field adjustments
  • All current 2575C accessories are interchangeable with the 2575D. Even the hard case will be interchangeable

OConnor 2575D Specifications

Capacity At 4in(10.16cm): 133 lbs. (60.3 kg)
At 6in(15.24cm): 105 lbs. (47.6kg)
At 8in (20.32cm):87 lb. (39.5 kg)
Platform Platform for 2575D: OConnor Plate, 120mm Euro Plate, Panavision Dovetail Plate, Arriflex Dovetail Plate
Handle(s) 0deg. & 30deg.
Bases Mitchel, 150mm, Sachtler/Vinten
Tilt +90deg. / -90deg.
Dimensions (H x W x D) 8.4 x 12.4 x 8.6" / 21.3 x 31.4 x 21.8cm
Weight 22.9 lb. (10.4 kg)
