OKI Data

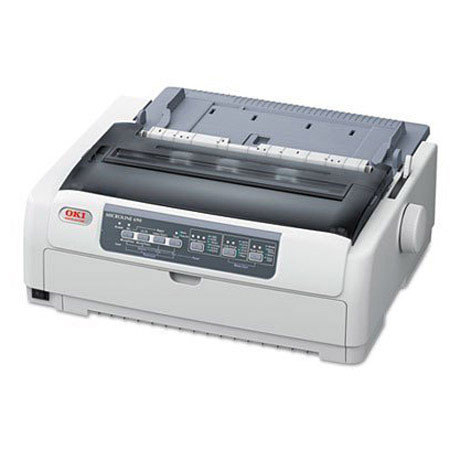

OKI Data Microline 690 Dot Matrix Impact Printer, 24-Pin, 5.5 ips Feed Rate, 360x360 dpi, Parallel/USB2.0

SKU: OKML690 MFR: 62434001
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping
Add to Wishlist In Stock

Protect your investment

About the OKI Data MICROLINE 690

OKI Data Microline 690 Dot Matrix Impact Printer handle the printing needs of the most demanding environments including point-of sale, automation and utility applications such as wholesale or retail sales counters, financial departments, manufacturing and warehousing. It also produce letter-quality type and high-resolution graphics for the office and executive suite.

OKI Data MICROLINE 690 Includes

  • OKI Data Microline 620 Dot Matrix Impact Printer
  • Ribbon Cartridge 8 MM Char -OKI Data 3 Year Limited Warranty

OKI Data MICROLINE 690 Features

  • This printer has MTBF rating of 25,000 hours; Ribbon life of up to 8 million characters
  • Improved Working Conditions-A convenient front paper path (tractor feed and friction feed); Printing on forms up to 7 parts; Versatile connectivity and paper handling
  • This printer run the gamut of paper types and envelopes at lightning speed. Their rugged printheads have a 400 million-character average life expectancy, with powerful samarium magnets and stored-energy pins that deliver precise, sharp characters through to the last page of a 7-part form

OKI Data MICROLINE 690 Specifications

Print Method 24-pin (0.2 mm diameter)
Print Speed Draft: 360cps; HS Draft:480cps
Graphics Resolution (max) 360x360 dpi Epson/IBM
Feed Rate 5.5 ips
Emulation Epson LQ ESC/P2, IBM PPDS, IBM AGM
Interface Standard - IEEE Bi-directional Parallel, USB 2.0; Optional - Ethernet via OkiLAN 6130 10/100 Base-T External Print Server, RS-232C Serial
Receive Buffer/Memory 128KB
Operating Systems x86/x64 - Windows 8, Windows 7, Vista, XP, Server 2008, Server 2003; x86 - Win2000; x64 - Server 2008R2
Scalable fonts Courier, Roman and Swiss 8-64 pt.
Bar Codes UPC A, UPC E, EAN 8, EAN 13, Code 39, Interleaved 2 of 5, Code 128 (A, B, C), PostNet, CodaBar, (NW-7), Industrial 2 of 5, Matrix 2 of 5
Paper Input Single/Multi-part, Continuous forms, Cut sheet, Roll paper, Envelopes, Card stock, Labels
Number of Copies Original + up to 6 copies max
Thickness (Max) Front/Back push 0.36mm (0.014"); Front/Back pull, Front/Back push-pull 0.44 mm (0.017"); Top pull 0.48 mm (0.019")
Paper Feeding Front/Top Friction Feed, Front/Back Push Tractor, Front/Top Pull Tractor
Standard Tractor Front/Back Push with Zero Tear, Auto Park and Auto Loading standard
MTBF 25,000 hours
Monthly Duty Cycle 23,000 pages
Printhead Life 400 million characters at 25% duty cycle (10 cpi Draft mode)
Ribbon Life 8 million characters
Power Consumption Operation approx. 52W (ISO/IEC 10561 Letter, Roman, Range 1); Idle 15W max; Sleep Mode - with options 3.7W max, without options 1.5W max w
Electrical 120V
Operating Temperature 5 deg.C to 35 deg.C (41 deg. F to 95 deg. F); 20% to 80% relative humidity
Noise Silent Mode 49.0 dBA, Quiet Mode 52.0 dBA, Normal Mode 57.0 dBA
Dimensions 17.2 x 14.8 x 7.5" / 43.8 x 37.5 x 19.1cm
Weight 16.8lbs / 7.7kg
