Orion

Orion AstroView Equatorial Telescope Mount

SKU: ONAVEM MFR: 09822
Due to Manufacturer Restrictions, This Item can NOT be Shipped to California.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$249.95
Free Shipping
Qty:

Add to Wishlist

About this item

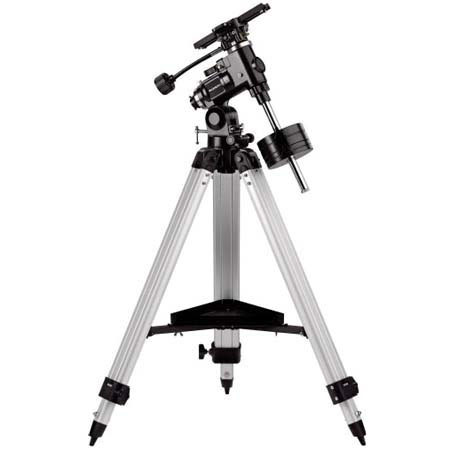

The Orion AstroView Equatorial Telescope Mount is a smooth-moving, sturdy mount. Its heavy-duty equatorial head supports up to a 5" refractor tube and has enclosed worm gears, azimuth adjustment and dual slow-motion controls. The hinged center brace adds stability to the all-aluminum adjustable tripod. It includes polar alignment scope and high-walled accessory tray.

What's Included With This Item

  • Orion Astroview Equatorial Telescope Mount
  • Tripod Legs
  • Equatorial Mount
  • Polar Axis Finder Scope
  • 7.5 lbs Counterweight
  • 4.0 lbs Counterweight
  • Counterweight Shaft
  • Tripod Accessory Tray
  • Slow-Motion Control Knobs
  • Polar Axis Scope Cover
  • Leg Attachment Screws
  • Wing Nuts
  • Washers
  • Leg Lock Knobs
  • Orion 1 Year Limited Warranty

Key Features

  • Smooth-moving, sturdy AstroView provides a robust equatorial system for any telescope
  • Heavy-duty equatorial head has enclosed worm gears, azimuth adjustment and dual slow-motion controls
  • Newly designed equatorial head features dovetail plate for quick attachment of telescope tube
  • Includes adjustable aluminum tripod
  • EQ-3M electronic DC drive systems not included

Technical Specs

Astro-imaging capability Lunar & planetary
Dovetail bar system Yes
Motor drive compatibility Clock drive (sold separately)
Bearing material Friction bearings
Latitude range 18-63
Setting circles Yes
Polar-axis scope Included
Counterweights One 7.5 lbs, one 4 lbs
Counterweight bar length 10 in
Diameter of counterweight shaft 20mm
Height range of mount/tripod 36.00 in - 56.00 in
Weight, fully assembled 27.5 lbs
Warranty Orion 1 year limited warranty
