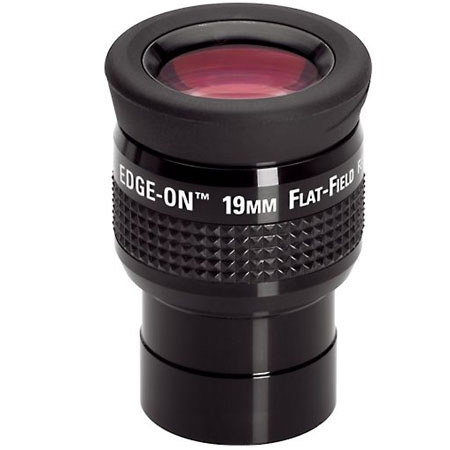

Orion Edge-On 19mm Flat Field, Wide Eyepiece, 1.25in
Orion

Orion Edge-on 19mm Flat Field, Wide Angle Eyepiece, 1.25"

SKU: ONEOFF19 MFR: 08642
What's Included
What's Included With This Item:
  • 19mm Edge-On Flat Field Eyepiece, Dust Caps, 1 Year Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$99.95
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

What's Included With This Item

  • 19mm Edge-On Flat Field Eyepiece, Dust Caps, 1 Year Warranty

Key Features

  • Edge-On Eyepieces offer premium performance at an amazing price!
  • Flat-field design means sharp focus from edge to center of the viewing field.
  • Features multicoated optics, all-black anodizing, twist-up eye guards, and parfocal design.
  • Large eye lens and long eye relief mean comfortable viewing - even for long observing sessions.
  • Threaded to accept all Orion 1.25" filters.

Technical Specs

Design Wide Angle
Eyepiece focal length 19.0mm
Barrel size 1.25"
Apparent field of view 65.0-deg
Eye relief 17.0mm
Coatings Fully multi-coated
Number of elements 5
Filter threads Yes
Made with extra low dispersion glass No
Parfocal Yes
Field stop diameter 21.3mm
Barrel security recess Yes
Blackened lens edges Yes
Rubber eyeguards Yes
Body material Aluminum
Dimensions 2.4 in. x 1.6 in.
Weight (oz.) 4.00
Warranty Orion 1 year limited warranty
