Onkyo

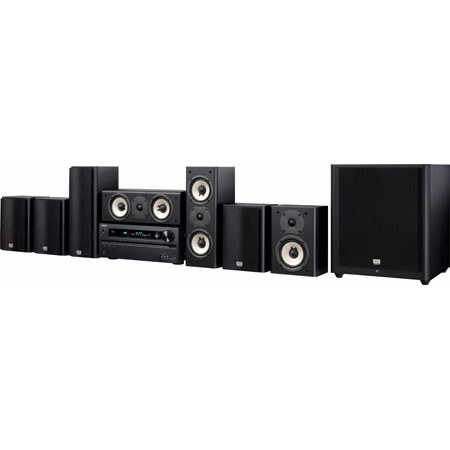

Onkyo HT-S9400THX 7.1 Channel THX Certified 3D Capable Home Theater System

SKU: ONKHT9400THX MFR: HT-S9400THX
Please note: Although this item is temporarily out of stock, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$924.33
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the Onkyo HT-S9400THX

As a centerpiece of home theater entertainment, the Onkyo HT-S9400THX Home Theater Receiver offers superb Blu-ray HD audio/video matching performance at an affordable price. Designed and built with both home theater pundits and home audio connoisseurs in mind, it boasts a total of (6) HD inputs that support 3D video and 1080p video upconversion by Marvell.

In the convenience of your own home, you can finally watch your favorite movies come alive with Digital Dolby Plus, Dolby TrueHD, DTS-HD Master Audio and High Resolution Audio decoders. Moreover, with this receiver you'll get 7.1-channel analog audio inputs for legacy components; analog RGB inputs for PC video; a Universal port for Onkyo peripherals; and a front-side USB input for iPod models and flash memory devices. It has been designed to connect specifically to the iPod or iPhone, respectively and has been certified by the developer to meet Apple performance standards.

Other important features include advanced A/V Sync, Digital Cinema Sound, iPod music browsing capabilities, bass/treble control, multiple sound fields, AM/FM radio tuner, optical/coaxial digital audio inputs and connectivity to virtually any A/V source you can imagine.

With a technological masterpiece designed like this, even its stylish gloss black finish is sure to complement your room's decor.

Onkyo HT-S9400THX Includes

  • Onkyo HT-S9400THX 7.1 Channel THX Certified 3D Capable Home Theater System
  • Remote Control
  • Quick Hookup Diagram
  • Onkyo Warranty

Onkyo HT-S9400THX Features

  • Network capability delivers Internet Radio and network streaming
  • THX Integrated System Plus Certified
  • HDMI V1.4a repeater (4 in/1 out, 1080p compatible) to support 3D and Audio Return Channel
  • HDMI video upscaling to 4K with Qdeo Technology by Marvell
  • Dolby PLIIz Surround Mode
  • Overlaid Graphical On-Screen Display (OSD) via HDMI
  • Powered Zone 2
  • Audyssey 2EQ for room correction and speaker calibration
  • Audyssey Dynamic EQ for loudness correction
  • Direct digital connection of iPod/iPhone via front panel USB port
  • Onkyo remote app for iPod/iPhone

Onkyo HT-S9400THX Specifications

Channel 7.1
Total Power 1035W
Power (6 ohms, 1 kHz, 1%, 1 channel driven, FTC)/Ch: 130W/ch x 5
Subwoofer Output 125W
THX Certified Yes
Dolby Digital DOLBY Decoder: TrueHD, DD Plus
DTS Decoder: HD-Master Audio, HD-High Resolution Audio
Dolby PLIIz
Onkyo Game Surround Modes
Audyssey Dynamic EQ: (2EQ)
Audyssey Dynamic Volume
Music Optimizer: Advanced
Connectivity Network Capable
Audio I/O: 6 (1 front)/ 1
Digital Audio In (Opt/Coax): 2 / 2 Composite I/O: 5 (1 front) / 2
Component Video I/O: 2 / 1
HDMI I/O: 4 / 1
HDMI Version: v1.4a Supporting 3D video and Audio Return Channel
Analog To HDMI UpConversion: Up to 4K via Qdeo Technology by Marvell Powered Zone2
U-port
iPod Ready: Direct USB input HD Radio Ready (via optional UP-HT1)
Speaker Front Speaker: 2-Way Acoustic Suspension
Center Speaker: 2-Way Acoustic Suspension
Surround Speaker: 2-Way Acoustic Suspension
Subwoofer: 12" (304.8mm) Acoustic Suspension, Powered
Cabinet Type: Wood
Speaker Type Front/Center: 2-Way, Acoustic Suspension
Surround: 2-Way, Acoustic Suspension
Subwoofer: Acoustic Suspension/Powered
Drivers Front: 5" (12 cm) A-OMF diaphragm cone x 2, 1" (2.5 cm) soft-dome tweeter
Center: 5" (12 cm) A-OMF diaphragm cone x 2, 1" (2.5 cm) soft-dome tweeter
Surround: 5 1/8" (13 cm) A-OMF diaphragm cone, 1" (2.5 cm) soft-dome tweeter
Subwoofer: 12" (30 cm) cone
Frequency Response (Rec/Repro) Front/Center: 50 Hz-45 kHz
Surround: 50 Hz-45 kHz
Surround Back: 50 Hz-45 kHz
Subwoofer: 20 Hz-100 Hz
Output Level Front: 83 dB/W/m
Center: 83 dB/W/m
Surround: 81 dB/W/m
Surround Back: 81 dB/W/m
Maximum Input Power Front/Center/Surround: 130W
Surround Back: 130W
Subwoofer: 125W Min Continuous Power (6 ohm, 100Hz, max 1% THD)
Impedance Front/Center/Surround: 8 ohms
Surround Back: 8 ohms
Subwoofer: 330 mV/100 k-ohms
Amplifier: Power Output Power Output:
Front L/R (6 ohms, 1 kHz, 1%, 1 channel driven, FTC): 130W/Ch
Center (6 ohms,1 kHz, 1%, 1 channel driven, FTC): 130W/Ch
Surround L/R (6 ohms, 1 kHz, 1%, 1 channel driven, FTC): 130W/Ch Surround Back L/R (6 ohms, 1 kHz, 1%, 1 channel driven, FTC): 130W/Ch
Amplifier: Dynamic Power Dynamic Power (Front):
180W (3 ohms)
160W (4 ohms)
100W (8 ohms)
Amplifier: THD 0.08% (20 Hz-20 kHz, Half power)
Amplifier: Damping Factor 60 (Front, 1 kHz, 8 ohms)
Amplifier: Input Sensitivity 200 mV/47 k-ohms (Line)
Amplifier: Impedance 200 mV/470 ohms (Rec out)
Amplifier: Maximum Source Impedance 2.0 V/2.2 k-ohms (Rec out)
Amplifier: Freq. Response (Rec/Repro) 5 Hz-100 kHz/ +1 dB, -3 dB (DSP bi-pass)
Amplifier: Tone Control ±10 dB, 50 Hz (Bass)
±10 dB, 20 kHz (Treble)
Amplifier: Signal to Noise Ratio 100 dB (Line, IHF-A)
Amplifier: Speaker Impedance 6 ohms-16 ohms
Video: Input Sensitivity 1.0 Vp-p/75 ohms (Component)
0.7 Vp-p/75 ohms (Component PB/CB, PR/CR)
0.28 Vp-p/75 ohms (S-Video C, PR/CR)
1.0 Vp-p/75 ohms (Composite)
Video: Frequency Response (Rec/Repro) 5 Hz-50 MHz
Tuner: Frequency Range FM: 87.5 MHz-107.9 MHz
AM: 530 kHz-1,710 kHz
FM/AM Preset Memory: 40 stations
Power Supply AC 120 V, 60 Hz
Power Consumption 4.5 A
Standby Power Consumption: 0.2W
Dimensions (W x H x D) Amplifier: 17.1 x 6.8 x 12.9" (434 x 173 x 328mm)
Front Speaker: 6.3 x 17.1 x 7.8" (160 x 434 x 198mm)
Center Speaker: 17.1 x 6.3 x 7.8" (434 x 160 x 198mm)
Surround/Surround Back Speaker: 7.9 x 10.8 x 6.6" (200 x 274 x 167mm)
Subwoofer: 14.9 x 17.5 x 16.9" (378 x 444 x 429mm)
Weight Amplifier: 19.8 lbs. (9kg)
Front Speaker: 11.7 lbs. (5.3kg)
Center Speaker: 11.7 lbs. (5.3kg)
Surround/Surround Back Speaker: 7.7 lbs. (3.5kg)
Subwoofer: 34.2 lbs. (15.5kg)
