Orion

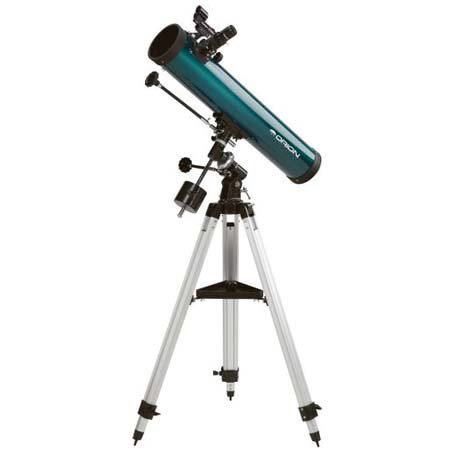

Orion SpaceProbe 3" Equatorial Reflector Telescope Kit, with Eyepieces, Tripod & Equatorial Mount and Software.
Mfr. Part: 09843 SKU: ONS3E
enlarge image
|
|
 |
| Due to Manufacturer Restrictions, This Item can NOT be Shipped to California. |
|
|
Item Includes
Orion Optical Tube Assembly - 25mm Explorer II Eyepiece (1.25") - 10mm Explorer II Eyepiece (1.25") - Tripod Legs - Equatorial mount - EZ Finder II Finder Scope - Finder Scope Bracket - Collimation Cap - Tripod Accessory Tray - Dust Cap - Slow-Motion Control Knobs - Tripod Attachment Screws - Wing Nuts - Washers - Leg Lock Knobs - Starry Night Special Edition Software - Orion 1 Year Limited Warranty
|
Description
The Orion SpaceProbe 3 Equatorial Reflector Telescope is highly portable and uncomplicated scope, great for all-around astronomical observing. SpaceProbe 3 reflector telescope makes the night sky's treasures accessible right from the backyard. It will reveal Saturn's picturesque rings, Jupiter's moons and the incredibly cratered terrain of the Moon's surface. It's 3"-diameter (76mm) primary mirror also gathers enough light to snare the faint glows of some very exotic star clusters and nebulas.
The aluminum Newtonian optical tube features a 1.25" rack-and-pinion focuser to ensure sharp images in the eyepiece. Speaking of which, each scope now comes with two interchangeable Explorer II eyepieces (1.25")-25mm (28x) and 10mm (70x)-as well as a wide-field and EZ Finder Reflex Sight to aid in locating objects. An adjustable-height tripod with accessory tray and aluminum legs is also included standard. The SpaceProbe 3 EQ comes with the EQ-1 equatorial mount. It allows easier manual "tracking" of celestial objects, once you get the hang of it. |
Features
 |
Great for all-around astronomical observing, great beginner's telescope |
|
76mm aperture and 700mm focal length for wonderful views of the moon, planets and even some nebulas |
|
Includes sturdy tripod and equatorial mount for hands-free celestial tracking |
|
Includes two eyepieces, finder scope, focuser, collimation cap and astronomy software |
Specifications
| Use | Astronomy |
| User level | Beginner |
| Optical design | Reflector |
| Optical diameter | 76mm |
| Focal length | 700mm |
| Focal ratio | f/9.2 |
| Optics type | Spherical |
| Glass material | Soda-lime plate |
| Eyepieces included | Explorer II 25.0mm, 10.0mm |
| Magnification with included eyepieces | 28x, 70x |
| Resolving power | 1.52arc sec |
| Lowest useful magnification | 18x |
| Highest useful magnification | 152x |
| Limiting stellar magnitude | 12.1 |
| Optical quality | Diffraction limited |
| Finder scope | EZ Finder II |
| Focuser | 1.25" Rack-and-pinion |
| Secondary mirror obstruction | 20mm |
| Secondary mirror obstruction | 26% by diameter |
| Secondary mirror obstruction by area | 7% |
| Mirror coatings/over-coatings | Aluminum & Silicon Dioxide |
| Mount style | Equatorial |
| Astro-imaging capability | Lunar & planetary |
| Dovetail bar system | No |
| Motor drive compatibility | Clock drive (sold separately) |
| Computerized compatibility | Not compatible |
| Bearing material | Friction bearings |
| Latitude range | 14-70 |
| Setting circles | Yes |
| Polar-axis scope | No |
| Counterweights | One 4.8 lbs |
| Tube material | Steel |
| Tripod material | Aluminum |
| Counterweight bar length | 8 in |
| Diameter of counterweight shaft | 12mm |
| Height range of mount/tripod | 32.50 in - 54.75 in |
| Length of optical tube | 27.0 in |
| Weight, optical tube | 4.0 lbs |
| Weight, mount/tripod | 7.5 lbs |
| Weight, fully assembled | 16.6 lbs |
| Warranty | Orion 1 year limited warranty |
| | |
|
|
|
|
|
|
