Orion SkyView Pro Equatorial Telescope Mount & Tripod Kit, Supports up to 20 lbs.

See all Orion items

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Orion

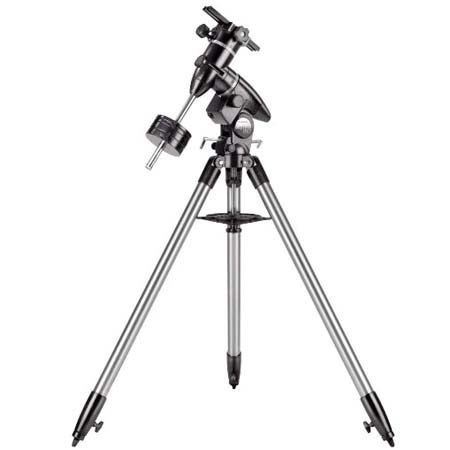

The Orion SkyView Pro Equatorial Telescope Mount sets a new standard for stability, precision control and affordability in a mount designed for the demanding amateur astronomer. A step up in rigidity and load capacity from the SkyView Deluxe mount, the "SVP" supports telescope tubes weighing up to 20 lbs. Its all-metal head features enclosed 360-degree worm gears plus large, 86mm-diameter setting circles for easy object location by celestial coordinates.

Telescopes attach via a quick-release dovetail plate (included). The head glides effortlessly in right ascension and declination. Dual slow-motion knobs allow manual fine control and an optional TrueTrack single- or dual-axis DC drive can be added for electronic tracking and photographic guiding. Other features include an azimuth fine adjustment and a latitude scale. The mount accepts an optional polar-alignment scope.

Orion Features

  • Heavy-duty SkyView Pro sets a new quality standard for demanding amateur astronomers
  • Supports telescope tubes up to 20 lbs; tubes attach via a quick-release dovetail bar
  • Features enclosed 360-degree worm gears and 86mm-diameter setting circles for easy object location
  • Dual slow-motion knobs allow fine manual control; accepts optional electronic drives
  • Includes two counterweights (4 and 7.5 lbs); total weight with counterweights equals 35 lbs

Orion Specifications

Astro-imaging capability
Lunar, planetary & long exposure
Weight rating
20 lbs
Dovetail bar system
Motor drive compatibility
Clock drive (sold separately)
Computerized compatibility
Intelliscope system or Go-To system
Bearing material
Sealed ball bearings
Latitude range
Setting circles
One 7.5 lbs, one 4 lbs
Tripod leg diameter
1.75 in
Counterweight bar length
10 in
Diameter of counterweight shaft
Height range of mount/tripod
42.25 in - 55.00 in
Weight, fully assembled
36.5 lbs
Orion 1 year limited warranty
