Ortery 3D PhotoArm 2000 Camera Positioning System, TruView 3D Software, 3D Product Photography

SKU: OR3DPA2000 MFR: 3DPHOTOARM2000
Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 3 to 5 Days.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$13,800.00
Free Shipping
Qty:

Add to Wishlist

About the Ortery PhotoArm 2000

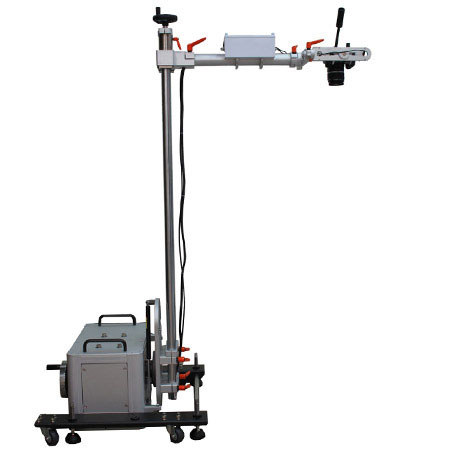

The Ortery 3D PhotoArm 2000 Camera Positioning System is specifically designed for 3D product photography and ensures correct camera positioning along a perfect arch from 0 to 90 degrees. With a 61.8" vertical arm and a horizontal reach of 30.1", the 3D PhotoArm 2000 is flexible and ideal for shooting products-both large and small. Designed to be utilized with any camera, this hand crank positioning system offers an adjustable 1.8" to 46" shooting radius. 3D PhotoArm 2000 is the perfect tool for use with an OrteryPhotoCapture 360 Series photography turntable and includes Ortery TruView 3D image composition software.

While the 3D PhotoArm can work with any photography turntable, it was designed to work best with a PhotoCapture 360 Series turntable and a compatible Canon or Nikon DSLR camera. A PhotoCapture 360 Series turntable could hold <1 o 1,000 lbs. and automatically capture between 4 to 360 images per 360 rotation. The PhotoCapture 360 software includes a 3D Image Capture mode where users can define hemispherical or full-spherical output - for example, how many rows and pictures per row to take. The software controls the whole capture and processing workflow. Image capture is automated at each row and the user is instructed (depending on the number of rows selected) to move the PhotoArm camera position to the next required angle. Individual images can be exported (JPG or RAW) then imported (JPG) into TruView 3D for composition into a 3D product view.

Ortery PhotoArm 2000 Includes

  • Ortery 30.1 x 26 x 15.2" Mechanical Tank
  • 61.8" Vertical Arm
  • 30.1" Horizontal Arm
  • 15.7 x 15.7 x 4.6" Adjustable Turntable Stand
  • Ortery TruView 3D Software Package
  • Product Registration Sheet
  • Installation and Operation Guides
  • Ortery 1 Year Warranty

Ortery PhotoArm 2000 Features

  • Adjustable Shooting Radius: Camera to object distance can range from 1.8" to 46". The vertical arm features a built-in measuring stick so users can easily achieve repeatable, consistent results
  • Works With any Lens: The flexible shooting radius allows the user to choose the lens (telephoto, wide angle or macro) that's right for the job
  • Hand Crank Camera Positioning: User controls camera position using a hand crank and an angular guide to ensure correct and consistent shooting angles every time
  • Includes Ortery TruView 3D Software: TruView 3D composes individual JPG images into interactive 360 or 3D (hemispherical or full spherical) animations in HTML5 and Flash
  • Connectivity: Features a patented system for delivering power and USB connectivity to the camera
  • Universal Tripod Head: Designed for use with any camera
  • Industrial Design: Built using high quality aluminum and steel
  • Wheels for Easy Mobility: Move the arm to where you need it, then put the legs down. The legs are adjustable to deliver perfect balance
  • Shooting Guide: Comes with guides that explain how to set up the system and take pictures in a hemispherical and spherical format

Ortery PhotoArm 2000 Specifications

TruView 3D Software Requirements Windows XP SP3, Vista, 7
.NET Framework 3.5 SP1+CPU: Minimum 1 GHz
RAM: Minimum 2GB
HDD: 4GB
VGA: Minimum 1024x768
Internet Connection with Active Email Account (optional)
CD ROM Drive
Power Requirements Standard 110V
Arm Vertical: 61.8" / 156.97cm
Horizontal: 30.1" / 76.45cm
Shooting Distance Min: 1.8" / 45.72cm
Max: 46"/ 116.84cm
Max. Object Width 48" / 121.92cm
Dimensions (L x W x H) Mechanical Tank: 30.1 x 26 x 15.2" / 76.45 x 66.04 x 38.60cm
Weight Max. Camera/Lens: 10 lbs (4.53 kg)
285 lbs / 129.27 kg
