About the Opticstar DS-145M

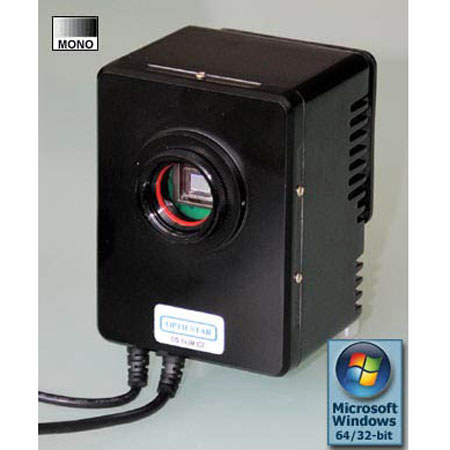

The Opticstar DS-145M ICE Monochrome CCD Camera with fan-assist is a native 1.4 mega-pixel 16-bit greyscale CCD imager with a large and highly sensitive EXview Sony HAD Chip of 2/3" diagonal (ICX285AL). The DS145M ICE uses the all new Z-MAX high-speed platform which adds a host of desirable features to this high quality camera.

Unlike other cameras in its class, gain support, noise reduction and black level are all implemented in the camera hardware and applied to the signal prior to the data been sent to the PC, thus ensuring the highest quality signal and brightest image possible at typical speeds of 3.5fps @ 1434x1050 in uncompressed RAW format.

Opticstar DS-145M Includes

  • Opticstar DS-145M ICE Monochrome CCD Camera
  • C/CS to 1.25" Telescope Adapter Threaded for Filters
  • C/CS to T Thread Adapter for T Thread Lens
  • 2.5m in-situ USB Cable
  • High Quality Regulated PSU (3A / AC:100-240V for Europe, USA etc / DC:3.3V)
  • Aluminium Storage and Carry Case
  • Software on CD
  • Set-up Guide
  • User Manual
  • Opticstar Warranty

Opticstar DS-145M Features

  • Hardware Gain: The camera's advanced features can easily be demonstrated in StarView. The StarView mode is a real time video mode with exposure times up to 10 seconds per frame. There is no need to use any bias frames or perform any color synthesis. StarView outputs the images in color by default
  • High Quality Construction: The camera electronics and sensor are housed inside a high quality aluminium body that entirely seals the sensor and on-board electronics from the outside environment
  • Nebulosity Software: Nebulosity is designed to be a powerful, but simple to use camera control and image processing application for Opticstar CCD cameras
  • Auto-Guiding: The Opticstar deep sky cameras (DS-xxx) can be used in conjunction with the Opticstar AG-130M COOLAIR Auto-guiding Kit to deliver a complete imaging solution

Opticstar DS-145M Specifications

Sensor type Sony ICX285AQ CCD, progressive scan
Sensor size 10.2mm x 8.3mm (2/3")
Sensor aspect ratio 4:3
Resolution 1.4 Megapixels, 1434 x 1050 pixels
Pixel size 6.45um x 6.45um
Binning modes 1x1, 2x2, 4x4
Preview mode 1434x1050 at 3 frames per second
On Board Functions Gain x1024, Noise Reduction, Black Level
Full Well Capacity 18000 e-
Dark Current 0.15e-/pix/s (cooled)
Data output 16-bit and 8-bit
Readout speed 20, 10MHz
Exposure time User defined from 3ms to over 1 hour
Raw 16-bit image transfer 0.5 second approximately at 1434x1050
Cooling Peltier cooled with fan assist, up to 30deg.C below ambient
Optical interface C-mount
Computer interface USB 2.0
Housing Robust all metal case and sealed electronics
Dimensions (WxHxD) 71x95x86.7mm / 180.34x241.3x220.21cm
Weight 730g / 25.74 oz
