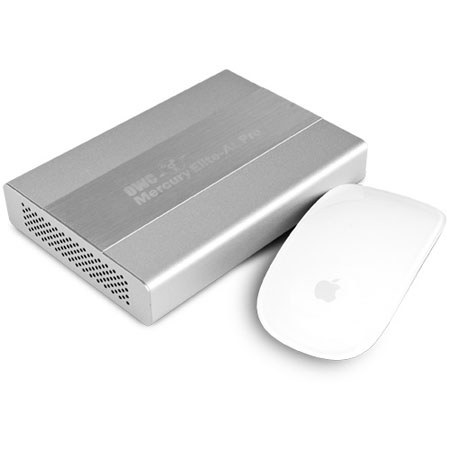

OWC Mercury Elite-AL 1.0TB Hard Drive, Aluminum
See all OWC items

OWC / World Computing Mercury Elite-AL 1.0TB Portable Mini Quad Interface HardDrive, 5400RPM for Mac, PC, eSATA, FireWire, USB, Brushed Aluminum

SKU: OWME1TB54
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

OWC Mercury Elite-AL 1.0TB Hard Drive, Aluminum Specifications

  • Chipset

    Oxford Semiconductor 934DSB

  • Standard Mechanism

    1.0TB Toshiba MK1059GSM Hard Disk Drive

  • Drive Interface

    SATA (Serial ATA)

  • Drive Cache Size

    8 Megabyte (8,192k)

  • Drive Rotation Speed

    5400RPM

  • Port Configuration

    eSATA - 1 port
    FireWire 800 - (2) 9 pin ports
    USB 2.0/1.1 - (1) 5 pin mini 'b' port

  • Max Data Transfer Rate

    eSATA - 3.0 Gbit/s (or 300 MB/sec)
    FireWire 800 - 800Mbps (or 100MB/sec)
    FireWire 400 - 400Mbps (or 50MB/sec)
    USB 2.0 - 480Mbps (or 60MB/sec)
    USB 1.1 - 12Mbps (or 1.5MB/sec)

  • Port/Interface Bootability

    Boot via eSATA: Supported (Requires bootable eSATA host controller.)
    Boot via FireWire 400: Yes
    Boot via FireWire 800: Yes
    Boot via USB2: Yes

  • Format

    Pre-formatted for Mac OSX

  • System Requirements 1

    Macintosh: Mac OS 8.6 to 9.2.2, Mac OS X 10.0.x or later and an available USB 1.1 or FireWire 400 port.
    Mac OS X 10.2.8 or later and an available USB2.0/1.1, FireWire 800/400 port, or eSATA port

  • System Requirements 2

    Windows: Windows 98SE or later and an available FireWire 400 or USB 2.0/1.1 port.
    Windows 2000 or later and an available USB 2.0/1.1, FireWire 800/400, or eSATA port

  • Power Supply

    Bus Power via FireWire 800 supported on all models equipped with an available FireWire 800 port either factory stock or via add on FireWire 800 PCI Card
    Bus Power via FireWire 400 on all models made in 2001 or later via Factory ports or any model with add on FireWire 400 PCI Card
    Bus Power via USB on most computers with USB 2.0 port factory stock

  • Recommended eSATA Cards

    Cards that OWC has tested and qualified for the OWC Mercury Elite-AL Pro
    PCIe (PCI Express) for Desktops

  • Temperature

    (Operating) 0deg. C - 70deg. C (32deg. F - 158deg. F)
    (Non-operating) -40deg. C - 85deg. C (-40deg. F - 185deg. F)

  • Relative Humidity

    (Operating) 5% - 90% RH (Non-condensing)
    (Non-operating) 5% - 95% RH (Non-condensing)

  • Shock

    (Non-operating) up to1500G

  • Vibration

    (Operating) 1.0G (5 - 300Hz)
    (Non-operating) 5.0G (5 - 500Hz)

  • Load/Unload Cycles

    600,000

  • Dimensions (W x D x H)

    3.8" x 5.5" x 1.1"/ 96.52 x 139.7 x 27.94mm

About OWC Mercury Elite-AL 1.0TB Hard Drive, Aluminum

With your choice of a 2.5" Serial ATA (SATA) hard drive OR Solid State Drive (SSD), the latest chipset and a "Quad Interface" of FireWire 800/400/USB 2.0/eSATA connectivity, the Mercury Elite-AL Pro mini Portable Storage Solution OWCMEQM5T10GB8 delivers up to 300MB/s data transfer speeds for demanding data storage and backup needs. All that performance resides in an impact resistant, heat dissipating 5.5 in (L) x 3.8 in (W) x 1.1 in (H) brushed aluminum enclosure with super quiet operation.

When you want high style in high performance storage, look no further than the Mercury Elite-AL Pro mini. With the highest quality drive mechanism built into a shock resistant portable aluminum enclosure, the Mercury Elite-AL Pro mini is ready to go wherever you need an A/V, Digital Photography, Professional Music, Graphics, General Data and Time Machine ready storage solution.

OWC Mercury Elite-AL 1.0TB Hard Drive, Aluminum Features

  • Quad Interface FireWire 800/400, USB 2.0 and eSATA for flexible connectivity
  • Supports bus powering via any interface
  • Data transfer speeds up to 300MB/s
  • Daisy chain multiple FireWire 800 devices
  • Drive speeds of up to 7200RPM or Solid State
  • Perfect for A/V, Digital Photography, Professional Music, Graphics, General Data and Time Machine ready
  • Brushed aluminum, impact resistant, heat dissipating, super quiet fanless enclosure
  • Oxford High-Performance Chipset

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • OWC Mercury Elite-AL 1.0TB Hard Drive
  • 18 inch High Quality eSATA Connecting Cable
  • 18 inch High Quality FireWire 800 Connecting Cable
  • 18 inch High Quality USB 2.0/1.1 Connecting Cable
  • Owner's Manual
  • Backup and Utility Software CD
  • Over 2.0GB of Freeware/Shareware/Public Domain Software Installed
  • OWC 3 Year Warranty
