PanaVise Speaker Wall Mount, 40 lb Load Capacity, White
SKU: PA120340W
This item is no longer available.
Share:
Overview
Compare
Learn
Specs
Protection
About PanaVise 120340W

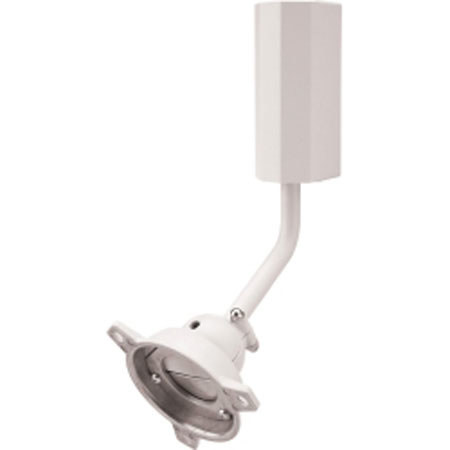

The PanaVise 120340W is a versatile, commercial mounting choice for speakers weighing up to 40 lb (18.2 kg). It is specially designed for heavy-duty commercial applications such as theaters, auditoriums, stadiums, night clubs and restaurants. Full 90-degree tilt, 360-degree turn and 360-degree rotation at the speaker allows precise positioning; locks firmly into place for worry-free installations.
PanaVise 120340W Features
- Easy "one person" installation with PanaVise's unique hanging system
- Overall length from top of wall bracket to center of adjusting base 9.375" (238.1 mm)
- 60-degree bend in steel shaft places center of adjusting base approx. 5.375" (136.5 mm) from wall
- Shaft is 0.625" (15.9 mm) in diameter
- Wall bracket is 2" x 5.25" (50.8 mm x 133.3 mm) with two mounting holes 3.75" (95.3 mm) apart
- Matching cover plate is 2.125" wide x 5.375" high x 2.5" deep (54 mm x 136.5 mm x 63.5 mm)
- Adjusting base has three feet with holes on a 4.3125" (109.5 mm) bolt circle
- Base locks firmly into place for worry-free installations
