Panasonic AW-HE50H Outdoor PTZ Camera System with Heater Blower Enclosure & IP Control Module

Panasonic
SKU: PC2HBMVP5501 MFR: D2HBMVP550-1

About Panasonic AW-HE50H

The Panasonic AW-HE50H Outdoor PTZ Camera System with Heater Blower Enclosure & IP Control Module is a full outdoor camera system, complete with a custom Dotworkz D2 enclosure, that's ready to be controlled via its included IP module. The HE50H's integrated pan/tilt/zoom mechanism can be operated remotely by Panasonic AW series controllers, computers, or control systems from third-party manufacturers, all via IP control. A full 1920 x 1080 CMOS sensor and 18x optical zoom lens deliver HD or SD imagery in a variety of resolutions, achieving exceptionally natural results due to Dynamic Range Stretch (DRS), Hybrid Noise Reduction and the Flesh Tone function. If desired, the video can be monitored locally via the camera's HDMI, composite, or component outputs.

Fast, precise and accurate, the AW-HE50H offers a variety of other powerful features, such as electronic shutter, 7-step chroma level adjustment, 3-step gamma correction and tally light. The camera pans across a ±175 degree range and tilts from +90 to -30 degrees. With its Dotworkz Heater Blower enclosure, the HE50H camera enjoys armor against the elements.

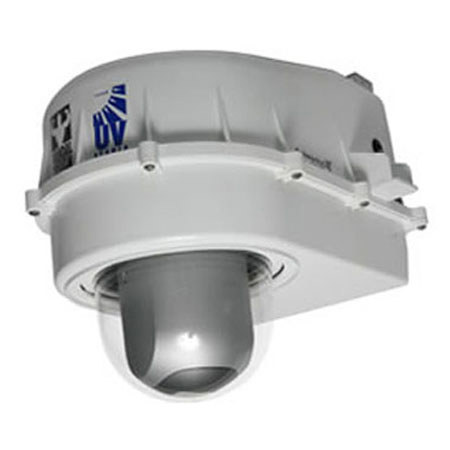

The camera housing will not corrode, rust, or leak. The custom Dotworkz D2 enclosure is a Heater Blower (HB-MVP) unit, which offers excellent protection against the hazards of outdoor camera use: environmental mayhem and vandalism. The enclosure features a heater-blower for environmental control and a multi-volt platform for power.

The housing is tested to be water-, dust- and airtight and its heater activates at 40 degrees F (4 degrees C) to keep the PTZ camera at optimal operating temperature. It deactivates at 60 degrees F (15 degrees C). The blower remains on at all times, keeping the enclosed AW-HE50H cool and keeping the lens fog-free. This heater-blower version of the D2 enclosure is recommended for climate zones with temperatures that range from 0 to 120 degrees F (-17 to 49 degrees C).

The system includes a pre-wired Teradek Odyssey HD MPEG-4 encoder and a Cisco Ethernet switch to send the camera's HD or SD output over an IP network - and receive over the same network the commands that make this pan/tilt/zoom camera what it is. Interface cabling and power supplies are also supplied.

Panasonic AW-HE50H Features

  • The camera's gamma curve and knee slope are optimized to match the contrast of each pixel in real time. This increases the dynamic range without affecting the normal pixels
  • The innovative Hybrid (2D/3D) Noise Reduction function also suppresses after-images, even in difficult lighting conditions
  • Flesh Tone Mode produces a more pleasing and realistic picture
  • Full-HD 1/3" CMOS sensor with 18x optical zoom and 10x digital zoom
  • Camera menus can be set up via a web browser by connecting the AW-HE50H to a PC
  • Quick camera integration, thanks to simple connections, IP control and the included Turn-lock mount
  • Enclosure is IP66-rated: airtight and sealed against outside air, dust, water and saltwater. In addition, the D2 housing features IP68-rated waterproof connection ports
  • All system components are mounted and wired in the enclosure, except for the HE50H camera, which should be installed onsite. Optional far-side MPEG decoder not included

Panasonic AW-HE50H Specifications

Image Device
1/3" Full HD CMOS
Lens
18x optical zoom
F1.6-2.8 (f=4.7-84.6mm; 35mm equivalent: 36.9-664.5mm)
Horizontal Resolution
850 TV lines
Signal-to-Noise Ratio
54 dB
Minimum Illumination
3 lux (50 IRE, F1.6, +36 dB)
Signal System
PAL [50 Hz] HD: 1080i50, 720p50; SD: 576i50
NTSC [60 Hz] HD: 1080i59.94, 720p59.94; SD: 480i59.94
Built-in Filters
No
Shutter Speed
Step 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
Syncro-scan 60.24-646.21 Hz
Gain Selection
0, 3, 6, 9, 12, 15, 18 dB/AGC
0 dB, 6 dB, 12 dB, 18 dB (Integral mode)
White Balance
AWB A, AWB B, ATW
Chroma Levels
7
Rotation
Pan: -175 to +175deg.
Tilt: -30 to +90deg.
Rotational Speed
Over 90deg./s (max)
Output Connectors
HDMI x1
Multi-I/F: composite, HD/SD analog component
Interface
LAN: 10BASE-T/100BASE-TX, IPv4RJ45 x 1
RS-422: AW-series protocol, plus selected third-party support
Power Requirements
Camera only: 12V DC ±10%
Power Consumption
Camera only: 1.2A
Operating Temperature
With enclosure: 0 to 120deg.F (-17 to 49deg.C)
Dimensions (W x H x D)
Camera only: 6.3 x 7 x 6.5" (16 x 17.8 x 16.6 cm)
Weight
Camera only: 3.1 lbs (1.4 kg)
