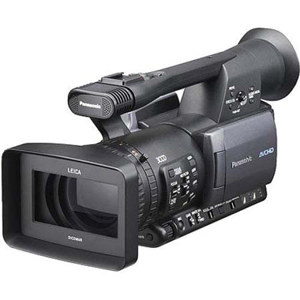

| Pick-up Device: |
3CCD (1/3-inch interline transfer type, and progressive modes supported) |
| Lens: |
LEICA DICOMAR lens with optical image stabilizer, motorized/manual mode switching, 13 × zoom, F1.6 - 3.0 (f=3.9mm to 51mm/35mm equivalent: 28mm to 368mm) |
| Optical Color Separation: |
Prism system |
| ND Filter: |
1/4, 1/16, 1/64 |
| Gain Selection: |
60i/60p mode: 0/+3/+6/+9/+12/+18 dB, (0dB fixed in slow shutter mode) 30p/24p mode: 0/+3/+6/+9/+12 dB, (0dB fixed in slow shutter mode) |
| Shutter Speed: Preset |
60i/60p mode: 1/60 (OFF), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec.
30p mode: 1/30, 1/50 (OFF), 1/60, 1/120, 1/250, 1/500, 1/1000 sec.
24p mode: 1/24, 1/50 (OFF), 1/60, 1/120, 1/250, 1/500, 1/1000 sec |
| Shutter Speed: (Synchro Scan) |
60i/60p mode: 1/60.0 sec. to 1/249.8 sec.
30p mode: 1/30.0 sec. to 1/249.8 sec. 24p mode: 1/24.0 sec. to 1/249.8 sec |
| Slow Shutter Speed: |
60i/60p mode: 1/15, 1/30 sec. 30p mode: 1/15 sec. |
| Minimum Luminance: |
3lx, (F1.6, Gain: +12dB, Shutter: 1/25sec.) |
| Digital Zoom: |
2x/5x/10x (only in 1080/60i or 720/60p video format) |
| Filter Diameter: |
72mm |
| Recording Format: |
AVCHD |
| Compression Method: |
MPEG-4 AVC/H.264 |
| Recording Media*: |
SD Memory Card : 512MB, 1GB, 2GB (FAT12, FAT16)
SDHC Memory Card : 4GB, 6GB, 8GB, 12GB, 16GB, 32GB (FAT32) |
| Recording Video Format: |
PH mode: 1080/60i, 1080/30p (over 60i), 1080/24p (native), 720/60p, 720/30p(over60p) and 720/24p (native) HA, HG and HE mode: 1080/60i only |
| Transmission Rate: |
PH mode: approx. 21 Mbps (VBR, Max 24Mbps) HA mode: approx. 17 Mbps (VBR), HG mode: approx. 13 Mbps (VBR) HE mode: approx. 6 Mbps (VBR) |
| Video Signals: |
1080/60i, 720/60p |
| HDMI Output: |
HDMI × 1, 1080/60i, 720/60p, 480/60p (Not compatible with VIErA Link) |
| Component Output: |
Mini-D x 1, Y: 1.0 Vp-p, 75 ohm, PB/PR: 0.7 Vp-p, 75 ohm |
| Composite Output: |
Pin jack x 1, 1.0 Vp-p, 75 ohm |
| Compression Method: |
Recording/Playback: Dolby Digital (Dolby AC3)/2 ch |
| Sampling Frequency: |
48 kHz |
| Quantization: |
16 bit |
| Compression Bit-Rate: |
PH mode: 2 CH 384 kbps, HA, HG and HE mode: 2 CH 256 kbps |
| XLR Input: |
XLR (3 pins) × 2 (INPUT1, INPUT2), LINE/MIC selectable, High impedance LINE: 0 dBu, MIC: -50 dBu/-60 dBu (selectable in menu) |
| Internal Microphone: |
Stereo microphone |
| Line Output: |
Pin jack x 2 (CH1, CH2), Output: 316 mV, 600 ohm |
| HDMI Output: |
2 ch (Linear PCM), 5.1 ch (AC3) |
| Headphone: |
Stereo mini jack (3.5 mm diameter) × 1 |
| Built-in Speaker: |
20 mm (round) × 1 |
| USB: |
Type mini B connector (compliant with USB ver. 2.0) |
| Camera Remote: |
Super Mini jack (2.5mm diameter) x 1, for zoom and rec start/stop operations Mini jack (3.5mm diameter) x 1, for focus and iris controls |
| TC Preset In/Out:(also for Video Out) |
IN: 1.0 to 4.0 Vp-p, 10 k ohm
OUT: 2.0±0.5 Vp-p, low impedance |
| LCD Monitor: |
3.5 inches, LCD color monitor, 210,000 pixels |
| Viewfinder: |
0.44 inches, LCD color viewfinder, 235,000 pixels |
| Power Supply |
DC7.2V (using with battery), 7.3V (using with AC adaptor) |
| Power Consumption: |
9.8W (when recording) |
| Operating Temperature: |
32°F to 104°F (0°C to 40°C) |
| Operating Humidity: |
10% to 80% (No condensation) |
| Weight: |
Approx. 3.7 lb. (Approx. 1.7 kg) camcorder only
Approx. 4.3 lb. (Approx. 1.98 kg) including SD memory cards, supplied battery, and microphone |
| Dimensions |
(W x H x D): 6-1/16 x 6-15/32 x 15-5/8 inches (154 × 164 × 397 mm) excluding theprojection part |
| Panasonic Warranty |
Three-year warranty program* (One year + two year extension upon registration) * see details |
