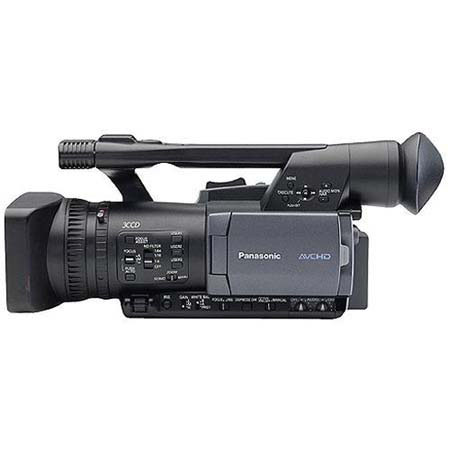

Panasonic AG-HMC150 Professional 3-CCD Handheld AVCCAM Camcorder Shooters Package with Case Shotgun Mic, SDHC Card & 7.2v 5800mA Battery
See all Panasonic items

Panasonic AG-HMC150 Professional 3-CCD Handheld AVCCAM Camcorder Shooters Package with Case Shotgun Mic, SDHC Card & 7.2v 5800mA Battery

SKU: PCAGHMC150S
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Panasonic AG-HMC150 Professional 3-CCD Handheld AVCCAM Camcorder Shooters Package with Case Shotgun Mic, SDHC Card & 7.2v 5800mA Battery Specifications

[Recording]

[Recording]

Jump to...

  • Recording Format:

    AVCHD

[Video System]

Jump to...

  • Video Signals:

    1080/60i, 720/60p

[Audio System]

Jump to...

  • Compression Method:

    Recording/Playback: Dolby Digital (Dolby AC3)/2 ch

[Audio In/Out]

Jump to...

  • XLR Input:

    XLR (3 pins) x 2 (INPUT1, INPUT2), LINE/MIC selectable, High impedance LINE: 0 dBu, MIC: -50 dBu/-60 dBu (selectable in menu)

[Other Connectors]

Jump to...

  • USB:

    Type mini B connector (compliant with USB ver. 2.0)

[Monitor]

Jump to...

  • LCD Monitor:

    3.5 inches, LCD color monitor, 210,000 pixels

[General]

Jump to...

  • Power Supply

    DC7.2V (using with battery), 7.3V (using with AC adaptor)

Other

Jump to...

  • Pick-up Device:

    3CCD (1/3-inch interline transfer type, and progressive modes supported)

  • Lens:

    LEICA DICOMAR lens with optical image stabilizer, motorized/manual mode switching, 13 x zoom, F1.6 - 3.0 (f=3.9mm to 51mm/35mm equivalent: 28mm to 368mm)

  • Optical Color Separation:

    Prism system

  • ND Filter:

    1/4, 1/16, 1/64

  • Gain Selection:

    60i/60p mode: 0/+3/+6/+9/+12/+18 dB, (0dB fixed in slow shutter mode) 30p/24p mode: 0/+3/+6/+9/+12 dB, (0dB fixed in slow shutter mode)

  • Shutter Speed: Preset

    60i/60p mode: 1/60 (OFF), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec.
    30p mode: 1/30, 1/50 (OFF), 1/60, 1/120, 1/250, 1/500, 1/1000 sec.
    24p mode: 1/24, 1/50 (OFF), 1/60, 1/120, 1/250, 1/500, 1/1000 sec

  • Shutter Speed: (Synchro Scan)

    60i/60p mode: 1/60.0 sec. to 1/249.8 sec.
    30p mode: 1/30.0 sec. to 1/249.8 sec. 24p mode: 1/24.0 sec. to 1/249.8 sec

  • Slow Shutter Speed:

    60i/60p mode: 1/15, 1/30 sec. 30p mode: 1/15 sec.

  • Minimum Luminance:

    3lx, (F1.6, Gain: +12dB, Shutter: 1/25sec.)

  • Digital Zoom:

    2x/5x/10x (only in 1080/60i or 720/60p video format)

  • Filter Diameter:

    72mm

  • Compression Method:

    MPEG-4 AVC/H.264

  • Recording Media*:

    SD Memory Card : 512MB, 1GB, 2GB (FAT12, FAT16)
    SDHC Memory Card : 4GB, 6GB, 8GB, 12GB, 16GB, 32GB (FAT32)

  • Recording Video Format:

    PH mode: 1080/60i, 1080/30p (over 60i), 1080/24p (native), 720/60p, 720/30p(over60p) and 720/24p (native) HA, HG and HE mode: 1080/60i only

  • Transmission Rate:

    PH mode: approx. 21 Mbps (VBR, Max 24Mbps) HA mode: approx. 17 Mbps (VBR), HG mode: approx. 13 Mbps (VBR) HE mode: approx. 6 Mbps (VBR)

  • HDMI Output:

    HDMI x 1, 1080/60i, 720/60p, 480/60p (Not compatible with VIErA Link)

  • Component Output:

    Mini-D x 1, Y: 1.0 Vp-p, 75 ohm, PB/PR: 0.7 Vp-p, 75 ohm

  • Composite Output:

    Pin jack x 1, 1.0 Vp-p, 75 ohm

  • Sampling Frequency:

    48 kHz

  • Quantization:

    16 bit

  • Compression Bit-Rate:

    PH mode: 2 CH 384 kbps, HA, HG and HE mode: 2 CH 256 kbps

  • Internal Microphone:

    Stereo microphone

  • Line Output:

    Pin jack x 2 (CH1, CH2), Output: 316 mV, 600 ohm

  • HDMI Output:

    2 ch (Linear PCM), 5.1 ch (AC3)

  • Headphone:

    Stereo mini jack (3.5 mm diameter) x 1

  • Built-in Speaker:

    20 mm (round) x 1

  • Camera Remote:

    Super Mini jack (2.5mm diameter) x 1, for zoom and rec start/stop operations Mini jack (3.5mm diameter) x 1, for focus and iris controls

  • TC Preset In/Out:(also for Video Out)

    IN: 1.0 to 4.0 Vp-p, 10 k ohm
    OUT: 2.0+/-0.5 Vp-p, low impedance

  • Viewfinder:

    0.44 inches, LCD color viewfinder, 235,000 pixels

  • Power Consumption:

    9.8W (when recording)

  • Operating Temperature:

    32°F to 104°F (0°C to 40°C)

  • Operating Humidity:

    10% to 80% (No condensation)

  • Weight:

    Approx. 3.7 lb. (Approx. 1.7 kg) camcorder only
    Approx. 4.3 lb. (Approx. 1.98 kg) including SD memory cards, supplied battery, and microphone

  • Dimensions

    (W x H x D): 6-1/16 x 6-15/32 x 15-5/8 inches (154 x 164 x 397 mm) excluding theprojection part

  • Panasonic Warranty

    Three-year warranty program* (One year + two year extension upon registration) * see details

9 Accessories for Panasonic AG-HMC150 Professional 3-CCD Handheld AVCCAM Camcorder Shooters Package with Case Shotgun Mic, SDHC Card & 7.2v 5800mA Battery

  • All Accessories (9)
  • Bags & Cases (1)
  • Filters (2)
  • Microphones & Audio (1)
  • Zoom & Focus Control (4)
  • Headphones (1)
Sony MDR-7506 Closed-Back Over-Ear Professional Monitor Headphones
Sony MDR-7506 Closed-Back Over-Ear Professional Monitor Headphones
$113.00
Porta Brace DVO2U DV Organizer Field Production Bag
Porta Brace DVO2U DV Organizer Field Production Bag
$294.32
Tiffen 37mm Deluxe Video Filter Kit 72mm
Tiffen 37mm Deluxe Video Filter Kit 72mm
$109.00
Tiffen Film Look Digital Video Filter Kit 72mm
Tiffen Film Look Digital Video Filter Kit 72mm
$309.00
Panasonic AGMC200G Super-Directional Phantom Mic
Panasonic AGMC200G Super-Directional Phantom Mic
$558.81
VariZoom VZROCKDVX Variable Rocker Zoom Controller
VariZoom VZROCKDVX Variable Rocker Zoom Controller
$190.00
VariZoom PFI Focus and Iris Control, Panasonic Cameras
VariZoom PFI Focus and Iris Control, Panasonic Cameras
$149.95
VariZoom VZROCKPZFI Zoom/Focus, Iris Control,Panasonic
VariZoom VZROCKPZFI Zoom/Focus, Iris Control,Panasonic
$299.95
VariZoom VZStealthPZFI Throttle Controller
VariZoom VZStealthPZFI Throttle Controller
$199.00

About Panasonic AG-HMC150 Professional 3-CCD Handheld AVCCAM Camcorder Shooters Package with Case Shotgun Mic, SDHC Card & 7.2v 5800mA Battery

AVCCAM - the Industry's Next Generation Affordable HD...

The AG-HMC150 handheld is Panasonic's exciting new introduction to the AVCCAM series. Representing a major step forward in affordable HD video capture, the HMC150 utilizes highly efficient AVCHD recording, the industry's new long GOP standard based on MPEG-4, to provide stunning image quality and longer record time.

The new handheld incorporates three 1/3-inch progressive CCD imagers to produce stunning 1920 x 1080 resolution picture quality far exceeding older Long GOP formats like HDV.

It's equipped with a high-performance wide-angle* Leica Dicomar 13x zoom lens and 24-and 30-frame progressive capture in a full range of HD formats, making it well suited for all types of projects.

With an excitingrange of professional video and audio features and a compact, well-balanced design, the HMC150 is a "must have" for video professionals and enthusiasts looking for the best in affordable HD.

Extra-Long Solid-State Recording: Forget minutes! With AVCHD technology and high-capacity SD memory cards, the HMC150 provides hours of beautiful high definition recordings at professional bitrates up to 21Mbps.

And it's as easy to use as a digital still camera, with simple playback on many consumer devices and players, from computers and video game consoles to Blu-ray players and flat panel displays with SD card slots.

AVCHD is currently supported by variety of editing solutions i ncluding: Apple iMovie, Apple Final Cut Pro 6.0.1, Adobe Premier Pro CS3, Grass Valley Edius PROv4.5, Pinnacle Studio Plus 11, Nero7 Premium Reloaded, Ulead Video Studio 11 plus and DVD Movie Factory 6 Plus.

Stunning, full pixel HD resolution with these professional bitrate recording modes:
• PH - 21 Mpbs (1920x1080) -- Highest Quality Setting
• HA - 17 Mpbs (1920x1080)
• HG - 13 Mpbs (1920x1080)
• HE - 6 Mpbs (1440x1280) - Perfect for Long-form Recording

Shooters Package Saves you Time and Money!
Includes AG-YUSC150 Elegant Soft Carry Case, MC70 Electret Shotgun Mic, 8GB SDHC Card, and 7.2v 5800mA Battery

Panasonic AG-HMC150 Professional 3-CCD Handheld AVCCAM Camcorder Shooters Package with Case Shotgun Mic, SDHC Card & 7.2v 5800mA Battery Features

  • Extra-long record times - one 32GB SDHC card can hold up to 3 hours in the PH mode mode, 4 hours HA, 5.3 hours at HG mode and 12 hours in the HE mode.
  • Records in a full range of HD formats including 1080/60i, 1080/30p, 1080/24p;720/60p, 720/30p, 720/24p
  • 1/3" 3-CCD progressive image system with excellent sensitivity, superb color reproduction and resolution
  • Optical Image Stabilization (O.I.S.) that ensures stable images, critical to high definition video display
  • 13X 28mm to 368mm (35mm equivalent) Leica Dicomar" wide-angle zoom lens"
  • Superb Manual & Auto focus
  • In-camera Waveform Monitor, Vectorscope and two Focus assist displays
  • A host of advanced video functions like Cinelike Gamma and Dynamic Range Stretch (DRS)
  • Professional-level connections including HDMI out, Component Out (D Terminal), Composite Out and RCA Audio out jacks, XLR audio inputs, USB 2.0 for file transfer, remote control for Zoom, Iris, Focus, Start/Stop
  • Features three neutral density filters and three user sets
  • Two locking XLR inputs with switches for mic/line, +48V Phantom Power, Auto/Manual level, and internal/external assignment
  • Useful time/date stamp feature for applications like legal depositions or surveillance
  • Includes professional-level assist functions like waveform monitor, vectorscope and two focus
  • Variety of editing solutions (Render files to almost any format or media)
  • Free downloadable AVCHD Transcoder for conversion to DVCPRO HD available at www.Panasonic.com/avccam
  • Built with a durable, die-cast magnesium chassis frame for reliable performance in tough environments
  • Lightweight (under 6lbs.), handheld design similar to the popular AG-DVX100
  • Three-year warranty program (One year + two year extension upon registration)*
  • Shooters Package Saves you Time and Money
  • Includes AG-YUSC150 Elegant Soft Carry Case, MC70 Electret Shotgun Mic, 8GB SDHC Card, and 7.2v 5800mA Battery

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • AG-YUSC150 Elegant Soft Carry Case, MC70 Phanthom Powered Electret Shotgun Mic, 8GB SDHC Card, 7.2V
