About Panasonic AG-HMX100

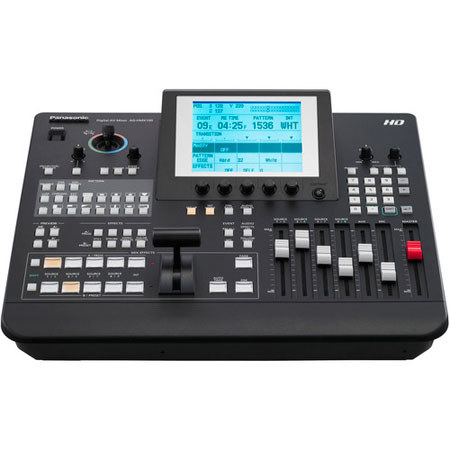

The Panasonic AG-HMX100 Digital AV Mixer consists of a multi-format video switcher, an audio mixer, frame synchronizer and digital effector and supports 1080i/720p HD and SD formats. To ensure broadcast-grade images, it offers 12-bit internal processing speed and full 4:2:2:4 digital component. The AV mixer includes a wipe pattern that lets you switch between 16:9 and 4:3 aspect ratios. It features 7 video inputs with PC image support and 6 video outputs. Using the intuitive control panel, you can choose from over 100 wipe patterns and mixes with effects like chroma keying, luminance keying, DSK and fading with M/E and DSK preview as well as built-in digital effects including mosaic, defocus, monocolor, still, strobe, multi-strobe, etc.

Up to 10 audio sources, which include AUX and MIC input, can be mixed using a fader control. It also provides output via PGM, PVW and AUX terminals and XLR (L/R) and pin terminal (L/R) analog outputs. Audio effects include pan, 3-band equalizer, voice changer (pitch/level) and mute effects. Audio levels are displayed as a multi-view overlay on the LCD screen. Using the Multi-Viewer function, you can display video sources, audio levels and a waveform monitor in multiple windows on a single display.

A large LCD panel with a 5-column, 3-row matrix menu automatically displays setting items depending on the operating status. A rotary switch is also included for choosing from settings with several selections.

Supporting switched transmission of 3D camera images, the AG-HMX100 Digital AV Mixer operates as a 3D video switcher with dual SDI signal inputs from 3D cameras with only the switcher function operational while in 3D mode. Side-by-Side 3D output methods are supported by the mixer and up to four 3D cameras can be switched when 2 AG-HMX100 Digital AV Mixers are connected.

For audio-visual applications, the Digital AV Mixer can be connected to Panasonic projectors via DVI-D, HD-SDI and RS-232C connections to control the projector's power and shutter settings. Additional features that offer ease of operation includes pattern presets, event memory, key learn, joystick controller and a numerical keypad. Offering a flexible user interface, the AG-HMX100 Digital AV Mixer is ideal for use in schools, hotels, government facilities, corporations, public access channels, event producers and in mobile or portable applications.

Panasonic AG-HMX100 Features

  • Mixer with a multi-format video switcher, an audio mixer, frame synchronizer and digital effector used with 1080i/720p HD and SD formats
  • 12-bit internal processing speed and full 4:2:2:4 digital component for broadcast-grade images
  • Wipe pattern for switching between 16:9 and 4:3 aspect ratios
  • Features 7 video inputs with PC image support and 6 video outputs
  • Intuitive control panel for choosing from over 100 wipe patterns and mixes with effects like chroma keying, luminance keying, DSK and fading with M/E and DSK preview
  • Built-in digital effects - mosaic, defocus, monocolor, still, strobe, multi-strobe, decay, paint and negative and mirror
  • Mixes up to 10 audio sources (AUX and MIC inputs) using a fader control
  • Provides output via PGM, PVW and AUX terminals and XLR (L/R) and pin terminal (L/R) analog outputs
  • Audio effects - pan, 3-band equalizer, voice changer (pitch/level) and mute effects
  • Audio levels displayed as a multi-view overlay on the LCD screen
  • Multi-Viewer function - to display video sources, audio levels and a waveform monitor in multiple windows on a single display
  • Large LCD panel with a 5-column, 3-row matrix menu for automatically displaying setting items depending on the operating status
  • Rotary switch for choosing from settings with several selections
  • Supports switched transmission of 3D camera images
  • Operates as a 3D video switcher with dual SDI signal inputs from 3D cameras with only the switcher function operational while in 3D mode
  • Supports Side-by-Side 3D output methods
  • Switches up to four 3D cameras when 2 AG-HMX100 Digital AV Mixers are connected
  • Can be connected to Panasonic projectors via DVI-D, HD-SDI and RS-232C connections to control the projector's power and shutter settings
  • Using the RS-232C remote control, you can turn on/off the power switch and shutter of Panasonic professional projectors
  • Additional features - include pattern presets, event memory, key learn, joystick controller and a numerical keypad
  • For use in schools, hotels, government facilities, corporations, public access channels, event producers and in mobile or portable applications

Panasonic AG-HMX100 Specifications

Power Consumption
60 W
Power Supply
100-230 VAC 50/60 HZ
Operating Temperature
5 to 40deg. C (41 to 104 deg.F)
Operating Humidity
10 to 80 % (no condensation)
Storage Temperature
-20 to 60 deg.C (-4 to 140 deg.F)
Storage Humidity
10 to 80 % (no condensation)
System Format
HD: 1080/23.98PsF (for 3D only), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
SD: 480/59.94i, 576/50i
Signal Processing
4:2:2:4, 12 bit internal
Sampling Frequency
48 kHz
Quantization
16 bit for HDMI input
24 bit for SDI input
20 bit for analog input
Dynamic Range
More than 90 dB at 1 kHz (digital), More than 85 dB at 1 kHz (analog)
THD
Less than 0.05 % at 1 kHz (digital)
Less than 0.08 % at 1 kHz (analog)
Headroom
20 dB and 18 dB switchable
Video: Analog Composite Input
BNC (2 sets), 1.0 V [p-p], 75ohm termination
Video: SDI Input
BNC (4 sets)
SD serial digital signal: SMPTE259M-C/272M-A and ITU-R BT.656-4 standards
HD serial digital signal: SMPTE292M/296M/299M standards
Video: HDMI Input
2 HDMI connector (Type A connector)
Video: Reference input
2 BNC (with loop-through), 1.0 V [p-p], 75ohm auto termination Composite signal (NTSC)
Video: Program (PGM) output
1 SDI (BNC)
SD serial digital signal: SMPTE259M-C/272M-A and ITU-R BT.656-4 standards
HD serial digital signal: SMPTE292M/296M/299M standards
1 DVI-D, TMDS single link
Video: Preview (PVW) Output
1 SDI (BNC)
SD serial digital signal: SMPTE259M-C/272M-A and ITU-R BT.656-4 standards
HD serial digital signal: SMPTE292M/296M/299M standards
Video: Aux Output
1 SDI (BNC)
SD serial digital signal: SMPTE259M-C/272M-A and ITU-R BT.656-4 standards
HD serial digital signal: SMPTE292M/296M/299M standards
Video Multi-viewer
1 SDI (BNC)
SD serial digital signal: SMPTE259M-C and ITU-R BT.656-4 standards
HD serial digital signal: SMPTE292M/296M standards
1 DVI-D, TMDS single link
Video: Advanced Reference Output
1 BNC, 75ohm
Composite signal sync: 0.286 V [p-p] (NTSC)
Burst: 0.286 V [p-p] (NTSC)
Audio Input
XLR: 4 sets (L and R), 4/0/-3 dBm switchable, balanced, 10k
SDI (BNC) (Embedded Audio): 4 sets
SD serial digital signal: SMPTE259M-C/272M-A and ITU-R BT.656-4 standards
HD serial digital signal: SMPTE292M/296M/299M standards HDMI (Embedded Audio): connector x 2 sets (Type A connector)
Audio: AUX Input
1 Pin jack (L and R), -10 dBv, High impedance, unbalanced
Audio: Microphone Input
1 M6, -60 dBV, 2k, monaural, unbalanced
Audio: Program (PGM) output
1 XLR (L and R), 4/0/-3 dBu switchable, low impedance, balanced
1 SDI (BNC) (Embedded Audio)
SD serial digital signal: SMPTE259M-C/272M-A and ITU-R BT.656-4 standards
HD serial digital signal: SMPTE292M/296M/299M standards
1 Pin jack (L and R), -10 dBV, low impedance, unbalanced
Audio: Preview (PVW) Output
1 SDI (BNC) (Embedded Audio)
SD serial digital signal: SMPTE259M-C/272M-A and ITU-R BT.656-4 standards
HD serial digital signal: SMPTE292M/296M/299M standards
Audio: Aux output
1 SDI (BNC) (Embedded Audio)
SD serial digital signal: SMPTE259M-C/272M-A and ITU-R BT.656-4 standards
HD serial digital signal: SMPTE292M/296M/299M standards
Audio: Headphones output
1 M6, 8ohm, stereo, unbalanced, -infinity to -20 dBu
Other Ports
TALLY: D-sub 9 pin, Open-Collector (8 CH)
Maximum current: Less than 50 mA
Maximum voltage: 35 VDC
GPI: 1 BNC, make-contact
RS-232C: 1 D-sub 9 pin
Dimensions (W x H x D)
16.75 x 7.75 x 15.75" (425 x 197 x 400 mm)
Weight
17.4 lb (7.9 kg)
Mfr #
AG-HMX100PJ
