Panasonic AG-MSU10 P2 Media Storage Unit, USB 2.0 & eSATA Interfaces, 2.5" Drive Tray, One-button Copying

Panasonic AG-MSU10: Picture 1 thumbnail Panasonic AG-MSU10: Picture 2 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Panasonic AG-MSU10

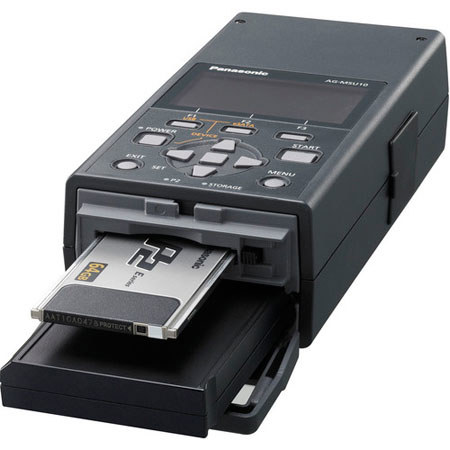

The Panasonic AG-MSU10 P2 Media Storage Unit is a mobile storage device designed for backing up and transferring video footage from P2 memory cards to an internal solid state drive, external hard drive, or to a Mac or PC. With its rugged design, built-in P2 card slot, AC/DC operation and USB 2.0 and eSATA interfaces, the AG-MSU10 offers a range of options to insure your P2 video remains safe while in the field. The included removable interface tray is designed to hold a 2.5" solid state drive (purchased separately), which can be used internally or, with its own eSATA and USB connectors, as removable media hooked directly to a PC or Mac editing system.

Panasonic AG-MSU10 Features

  • Fast Copying from a P2 Card to a Built-in Removable SSD: The AG-MSU10 has a P2 card slot and an interface box for housing a commercially available 2.5 type solid state drive (SSD) with Serial ATA interface (use a commercially available removable SSD that is recommended by Panasonic)
  • Backup onto an External HDD with eSATA/USB 2.0: The AG-MSU10 is equipped with eSATA and USB 2.0 interfaces (both Host and Device). In Host mode, files in the internal P2 card can be copied onto an external HDD at high speed without a PC/Mac
  • The Removable SSD Connects Directly to a PC/Mac: The removable SSD interface box is equipped with both eSATA and USB 2.0 connectors. It can be removed from the AG-MSU10 and connected directly to a PC, Mac or nonlinear editing system for use in Device mode
  • Single Button Copy and Thumbnail Display: Copying from a P2 card to a built-in SSD can be done swiftly with single-button operation. A clip thumbnail can also be displayed onto the built-in 82 mm (3.2") LCD panel and images can be copied clip by clip
  • Compact, Lightweight, Robust Design and Battery Drive: The AG-MSU10, which has superb portability features and a compact, lightweight and robust design, can also be battery driven. The P2 card and SSD ensure reliable use even in extremely harsh shooting conditions

Panasonic AG-MSU10 Specifications

Compatibility 1
Intel - X25-M (SSDSA2MH160G2C1)
Intel - X25-M (SSDSA2MH080G2C1)
Intel - X25-E (SSDSA2SH064G101)
Samsung - PM800 (MMDOE56G5MXP-0VB)
SUPER TALENT - MasterDrive SX (SAM56GM25S)
PhotoFast - G-Monster V3 (PF25S64GSSDV3)
Crucial - M225 (CT128M225)
Compatibility 2
Crucial - RealSSD C300 (CTFDDAC128MAG-1G1)
OCZ Technology - Agility Series (OCZSSD2-1AGT120G)
OCZ Technology - Vertex Series (OCZSSD2-1VTX120G)
Corsair - Performance Series (CMFSSD-128GBG2D)
Corsair - Extreme Series (CMFSSD-128D1)
Corsair - Force Series (CSSD-F120GB2)
Kingston - SSDNow V+ (SNVP325-S2/128GB)
Patriot - Torqx (PFZ128GS25SSDR)
Silicon Power - SSD E10 (SP128GBSSDE10S25)
eSATA (1x Host, 1x Device)
USB 2.0 Host: Mini-B
USB 2.0 Device: Type A
Built-In Card Slot
(1) P2
(1) SSD Interface Tray
Built-in Storage Capacity
2TB (optional)
Battery Type
CGA-D54 (5400mAh)
Power Requirements
7.2VDC (w/5400mAh battery)
Power Consumption
Operating Temperature
32deg. - 104deg.F (0deg. - 40deg.C)
Dimensions (W x H x D)
3.9 x 2.3 x 8.3" (9.9 x 5.8 x 21.2 cm)
1.7 lbs (770g) - Main unit only (no SSD or battery)
