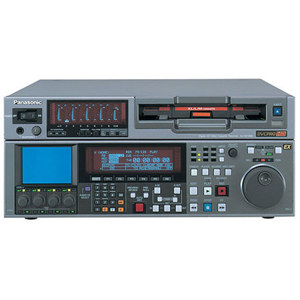

| Recording Format |
DVCPRO HD-LP |
| Recording Video Signal |
1080i/59.94Hz and 1080i/50Hz switchable
720p/59.94Hz, 720p/50Hz and 720p/60Hz (VariCam) switchable
480i/59.94Hz and 576i/50Hz switchable |
| Recording Audio Signal |
48 kHz, 16 bit, 8 CH |
| Recording Track |
Digital Video: helical track
Audio: helical track
TC: Subcode area
Cue: 1 longitudinal track
CTL: 1 longitudinal track |
| Tape Speed |
67.64mm/s (59.97Hz mode), 67.70mm/s (60Hz/50Hz mode) |
| Rec/Play Time |
Max. 126 minutes with AJ-HP126EXG |
| Tape |
1/4" metal particle |
| FF/REW Time |
Approx. 1.5 minutes with AJ-HP126EXG |
| Search Speed |
±100x |
| Editing Accuracy |
±0 frame (TC) |
| Tape Timer Accuracy |
Tape Timer Accuracy: ±1 frame (continuous CTL) |
| Servo Lock Time |
Within 0.3 sec (standby ON) |
| Loading/Unloading Time |
Approx. 4 sec (M, L cassette), Approx. 6 sec (XL cassette) |
| Video |
Sampling Frequency:
Y: 74.176 MHz, PB/PR: 37.088 MHz (1080/59.94i, 720/59.94p)
Y: 74.25 MHz, PB/PR: 37.125 MHz (1080/60i, 720/60p)
Quantization: 8 bits
Compression Method: DV-Based Compression (SMPTE370M/317M)
Compression Ratio: 1/6.7
Rate: 100 Mbps |
| Digital Audio |
Sampling Frequency: 48kHz
Quantization: 16 bits
Response: 20Hz to 20kHz, ±1.0dB (reference level)
Dynamic Range: More than 90dB (1kHz, emphassis off)
Distortion: within 0.05% (1kHz, emphassis off, reference level)
Cross Talk: Less than -80dB (1kHz, between any 2ch)
Headroom: 20/18/12 dB switchable |
| Cue Audio |
Frequency Response: 300Hz to 6kHz (±3dB) |

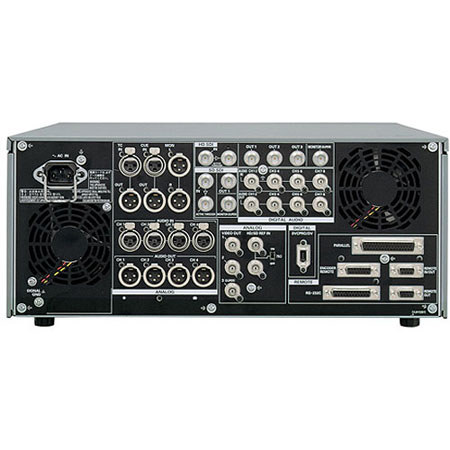

| Video Input |
HD SDI: BNC x 1 (SMPTE 292M/296M/299M), BNC x 1 (active through)
SD SDI:
BNC x 1 (SMPTE 259M-C/272M-A, ITU-R BT.656-4)
BNC x 1 (active through)Reference:
Black burst or HD tri-level sync switchable
BNC x 2 (loop-through), 75Ohms On/Off |
| Video Output |
HD SDI:
BNC x 3 (SMPTE 292M/296M/299M),BNC x 1 (monitor output with superimpose)
SD SDI:
BNC x 1 (SMPTE 259M-C/272M-A, ITU-R BT.656-4), BNC x 1 (monitor output with superimpose)
Analog Composite:
BNC x 3 (SD playback or down-convert), VIDEO1, VIDEO2, VIDEO3 (superimpose on/off) |
| Audio Input |
Analog: XLR x 4 (CH1/2/3/4), +4/0/-3/-20 dBu switchable, 600Ohms/high-impedance switchable
AES/EBU Digital: BNC x 4 (CH1/2, CH3/4, CH5/6, CH7/8)
HD SDI: BNC x 1 (SMPTE 292M/296M/299M), BNC x 1 (active through)
SD SDI:
BNC x 1 (SMPTE 259M-C/272M-A, ITU-R BT.656-4)
BNC x 1 (active through)Cue:
XLR x 1, +4/0/-3/-20 dBu, -60 dBu switchable, 600Ohms/high-impedance switchable |
| Audio Output |
Analog: XLR x 4 (CH1/2/3/4), +4/0/-3/-20 dBu switchable, Low-impedance
AES/EBU Digital: BNC x 4 (CH1/2, CH3/4, CH5/6, CH7/8)
Cue: XLR x 1, Low-impedance, +4/0/-3/-20 dBu switchable
HD SDI: BNC x 4 (SMPTE 292M/296M/299M)
SD SDI: BNC x 2 (SMPTE 259M-C/272M-A, ITU-R BT.656-4)
Monitor: XLR x 2 (L/R), Low-impedance, +4/0/-3/-20 dBu switchable
Phones: M6, variable level control, 8Ohms |
| Video Output Adjustment Range-1 |
Component style (HD SDI, SD SDI and Composite Out):
Y Output Gain: - infinity to + 3 dB
PB Output Gain: - infinity to + 3 dB
PR Output Gain: - infinity to + 3 dB
Y Black Level: ±10%
Composite style (HD SDI, SD SDI and Composite Out):
Video Output Gain: - infinity to + 6 dB
Output Gain: - infinity to + 3 dB
Chroma Phase: ±30deg. (In 50Hz/25Hz, adjustable only SD SDI/composite SD playback.)Y Black Level: ±10% |
| Video Output Adjustment Range-2 |
Phase:
HD SDI Out:
1080_59.94,60i ±1H (±2200 sample/13.5 ns step)
1080_50i ±1H (±2640 sample/13.5 ns step)
1080_23.98, 24psf ±1H (±2750 sample/13.5 ns step)
720_59.94, 60p ±1H (±1650 sample/13.5 ns step)720_50p ±1H (±1980 sample/13.5 ns step)
SD SDI Out:
NTSC: ±1H (±1716 sample/37 ns step)
PAL: ±1H (±1728 sample/37 ns step)
Composite Out:
NTSC:±1H (±1716 sample/37 ns step)
PAL: ±1H (±1728 sample/37 ns step)
Composite Out SC:more than ±180deg. |
| Audio Output Adjustment Range: |
Level: - infinity to + 12 dB |
| Other Input/Output |
IEEE 1394 IN/OUT:
6-pin x 1, 400/200/100 Mbps switchable
IEEE1394-1995, IEC61883-Part1/Part2 and
AV/C Command Set standard
TC IN: XLR x 1, 0.5 to 8.0 Vp-p, 10 kOhms
TC OUT: XLR x 1, Low-impedance, 2.0Vp-p ±0.5Vp-p
RS-422A IN: D-sub 9 pin RS-422A I/F
RS-422A OUT: D-sub 9 pin RS-422A I/F
RS-232C: D-sub 25 pin RS-232C I/F
Parallel IN/OUT: D-sub 50 pin
Remote: D-sub 15 pin |
| LCD Monitor |
3.5" LCD color monitor (approx. 210,000 pixels) |
| Power Supply |
AC (100-240) V ±10%, 50/60 Hz |
| Power Consumption |
125W |
| Operating Temperature |
5deg.C to 40deg.C (41 deg.F to 104 deg.F) |
| Operating Humidity |
10% to 80% (non dew) |
| Dimensions (W x H x D) |
424 x 175.2 x 417 mm (16.7" x 6.9" x 16.4") |
| Weight |
20 kg (44.1 lbs) |
