Panasonic

Panasonic AJ-HDX900 Professional High Definition Camcorder, 2/3" 3CCD Image Device, 700 TV Lines Horizontal Resolution

SKU: PCAJHDX900PJ MFR: AJ-HDX900PJ

Our Price

$29,343.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

List Price: $33,910.00

Availability: Special Order Item Special Order Item - This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 2-3 Weeks from date of order.

Free Shipping

See all shipping options

Ways To Save up to $27,243.00

Product Highlights

  • Superior color sampling & independent frame compression
  • Two 4-position optical filters (ND
  • Includes Camcorder Only
  • High Definition
  • 2/3 Sensor
  • CCD Sensor
  • DVCPRO
  • Black

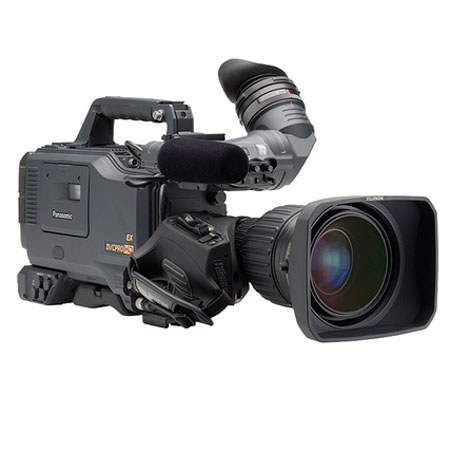

Panasonic AJ-HDX900: Picture 1 regular $29,343.00

About Panasonic AJ-HDX900

The Panasonic AJ-HDX900 multi-format DVCPRO HD camcorder places full production-quality HD within reach of a wider range of budgets measured in both dollars and euros! An indispensable, cost-effective tool for global content creators, the AJ-HDX900 DVCPRO HD camera records pristine 100Mbps HD images in any of eleven video formats, encompassing 60Hz and 50Hz production.

An advanced HD version of Panasonic's highly-popular AJ-SDX900 DVCPRO50 Cinema camera, which is a mainstay of independent features,documentaries and reality television production, the AJ-HDX900 raises the bar with the addition of the well-established DVCPRO HD codec and a multi-format recording system that supports 1080 59.94i/50i/29.97p/25p/23.98p/23.98pA and 720 59.94p/50p/29.97p/25p/23.98p.The versatile camcorder will be an invaluable tool for digital cinematography, cable and television production in any format, sports and events, for globetrotting documentarians and feature crews, and for the rental companies that serve them.The Panasonic AJ-HDX900 DVCPRO HD Camcorder provides full 4:2:2 HD production quality And format versatility and features 2/3" 3-CCD, IEEE 1394, 50Hz/60Hz Shooting, Cine-Like Gamma.

The AJ-HDX900 features a native 16:9, 2/3" HD, 1-million pixel 3-CCD system that assures stunning images and produces a high sensitivity of F10 (at 2000 lux) and outstanding low-light shooting down to 0.032 lux (at+62 dB gain). It is equipped with 14-bit A/D DSP circuits that provide optimum picture quality, color reproduction and luminance gradation. Utilizing the advanced DVCPRO HD codec, the AJ-HDX900 offers superior 4:2:2 color sampling and independent frame compression. The well-balanced camcorder offers impressive built-in, image-enhancing features including three Cine-like gamma modes to replicate the look and feel of film. The AJ-HDX900 is compatible with a wide range 2/3" quality lenses and accessories

The AJ-HDX900's IEEE 1394 digital output helps lower the cost of HD production by allowing nonlinear editing systems or other VTRs (such as Panasonic's new AJ-HD1400) to capture DVCPRO HD native video with no loss of image quality. It also produces a backup copy by interfacing with an external device (VTR or Direct To EditTM (DTE) recorder) while recording.

The AJ-HDX900 uses DVCPRO HD-EX 9-micron recording to record 33 minutes on a DVCPRO medium-size cassette, and records 48kHz/16-bit digital audio on all four channels. The camera provides as standard a pre-recording function that permits it to capture spontaneous scenes a shooter might otherwise miss. A standard HD SDI output is included for monitoring and line recording, and a down converter is built-in to produce a SD output, eliminating the need for an expensive SDI monitor.

Other standard features include: two 4-position optical filters (ND: clear, ¼, 1/16, 1/64; CC: Cross, 3200K, 4300k and 6300K); four user scene files, three user-customized buttons; electronic shutter (1/100 to 1/2000 sec.) with synchro scan shutter (1/60.3 to 1/249.8 sec.); Remote Control Unit support; an easy-slide shoulder pad that adjusts 1.18" in 10-steps; and a 3-point locking viewfinder mount for precise adjustment.

Panasonic AJ-HDX900 Features

  • Full-size 2/3" CCD block provides superb low-light performance and compatibility with all manufacturers 2/3" lenses for ENG, EFP and digital cinema production
  • Multi-format recording system that supports 1080 at 59.94i, 50i, 29.97p, 25p, 23.98p, 23.98pA and 720 at 59.94p, 50p, 29.97p, 25p, 23.98p
  • 14-bit A/D DSP circuits that provide optimum picture quality, color reproduction and luminance gradation
  • Superior 4:2:2 color sampling and independent frame compression
  • Records for 33 minutes on a DVCPRO medium-size cassette with 48kHz/16-bit digital audio on all four channels
  • Three CineGamma modes to replicate the look and feel of film
  • Built-in IEEE 1394 digital output helps lower the cost of HD production by allowing you to directly transfer HD video to nonlinear editing systems or other VTRs
  • Standard HD SDI output is included for monitoring and line recording
  • Built-in down converter produces a SD output, allowing the use of low-cost SDI accessories
  • Outstanding low-light shooting down to 0.032 lux (at+62 dB gain)
  • Compatible with a wide range 2/3" quality lenses and accessories
  • Two 4-position optical filters (ND: clear, 1/4, 1/16, 1/64; CC: Cross, 3200K, 4300k and 6300K)
  • Electronic shutter (1/100 to 1/2000 sec.) with synchro scan shutter (1/60.3 to 1/249.8 sec.)
  • Teams with Panasonic's new AJ-HD1400 compact DVCPRO HD VTR to form at high-performance, mobile acquisition-through-editing system

Panasonic AJ-HDX900 Specifications

Continuous Rec Time
About 120 min. with Anton/Bauer Dionic 80
CCD Elements
2/3"h HD Progressive CCD
Picture Elements
Total: 1370 (H) x 744 (V), Effective: 1280 (H) x 720(V)
Optical System
F 1.4 prism system
Optical Filters
CC: Cross, 3200K, 4300K, 6300K
ND: CLEAR, 1/4ND, 1/16ND, 1/64ND
Quantization
14 bits
Sampling Frequency
74.1758MHz (59.94Hz), 74.25MHz (50Hz)
Programmable Gain
3/0/+3/+6/+9/+12/+15/+18/+21/+24/+27/+30 dB
Super Gain
+30/+36 dB
Digital Super Gain
+6/+10/+12/+15/+20 dB
Line Mix Gain
+6 dB (On/Off)
Shutter Speed
1/60 (50Hz), 1/100 (59.94Hz), 1/120, 1/250, 1/500, 1/1000, 1/2000 sec. and HALF
Syncro Scan Shutter
1/60.3 to 1/249.8 sec. (59.94i, 59.94p)
1/30.2 to 1/249.8 sec. (29.97p)
/24.1 to 1/249.8 sec. (23.98p, 23.98pA)
1/50.2 to 1/209.5 sec. (50i, 50p)
1/25.2 to 1/209.5 sec. (25p)
Sensitivity
F10.0 at 2000 Lux, 89.9% reflect
Minimum Illumination
0.032 Lux at +36 dB +20 dB +6 dB Gain
Video S/N
54 dB (typical)
Horizontal Resolution
700 TV lines at centre
Registration Error
Less than 0.03 % (whole zone, without lens distortion)
Lens Mount
2/3" Bayonet type
VTR Section: Recording Format
DVCPRO HD-LP
VTR Section: Tape
6.35 mm wide metal tape (DVCPRO HD M cassette)
VTR Section: Tape Speed
67.640 mm/s (59.94Hz), 67.708 mm/s (50Hz)
VTR Section: Max Rec Time
Approx. 33 min (using AJ-HP33EMG)
VTR Section: FF/REW Time
About 1.5 min. (using AJ-HP33EMG)
Video: Sampling Frequency
Y: 74.1758 MHz (59.94Hz), 74.25MHz (50Hz)
PB/PR: 37.0879 MHz (59.94Hz), 37.125 MHz (50Hz)
Video: Quantization
8 bits
Video: Compression Method
DCT and Variable-length Coding
Video: Compression Ratio
1/6.3 (1080-50i/1080-25p), 1/6.7 (others)
Video: Error Correction
Reed Solomon Product Code
Video: Bit Rate
100 Mbps
Video: Band Width
Y: 20MHz, PB/PR: 10MHz
Audio: Sampling Frequency
48 kHz (sync. with video)
Audio: Quantization
16 bits
Audio: Frequency Response
20 Hz to 20 kHz, ±1.0 dB (reference level)
Audio: Dynamic Range
More than 85 dB (1kHz, AWTD)
Audio: Distortion
Within 0.1% (1 kHz, reference level)
Audio: Head Room
20 dB (AJ-HDX900P), 18 dB (AJ-HDX900E)
Mic In
XLR-5pin x 1, Stereo, -40/-50 dBu, Phantom +48 V
Audio In
XLR-3pin x 2 (CH1/CH2), LINE/MIC/MIC+48 V switchable
LINE: -3/0/+4 dBu, MIC: -60/-50 dBu, MIC+48V: -60/-50 dBu
Wireless In
25pin D-sub, -40 dBu
Genlock In
BNC x 1, 1.0 Vp-p, 75Ohms
Timecode In
BNC x 1, 0.5 to 7.0 Vp-p, high impedance
Video Out
BNC x 1, HD-SDI/SD-SDI/Composite switchable
HD-SDI/SD-SDI: 0.8 Vp-p, 75Ohms
Composite: 1.0 Vp-p, 75Ohms
Monitor Out
BNC x 1, HD-SDI/HD-Y switchable
HD-SDI: 0.8Vp-p, 75Ohms, HD-Y: 1.0Vp-p, 75Ohms
Audio Out
XLR-5pin x 1, CH1/CH2, -3/0/+4 dBu
Timecode Out
BNC x 1, 2.0 Vp-p, low impedance
Phones
Stereo mini jack x 2
Lens
12-pin x 1
Remote
10-pin x 1, for AJ-RC10G
DC In
XLR-4pin, DC11V to 17 V
DC Out
DC Out: 4-pin x 1, DC11V to 17 V, max. 1.5 A
EVF
20-pin x 1 (59.94Hz/50Hz switchable)
DVCPRO
6-pin x 1, IEEE 1394 standard digital Interface
GPS
6-pin x 1, for AJ-GPS900G
Receiver
UniSlot Wireless Receiver
Power Supply
DC 12 V (11 V to 17 V)
Power Consumption
36 W
Operating Humidity
10 % to 85 %
Operating Temperature
32deg.F to 104deg.F (0deg.C to +40deg.C)
Dimensions
5.06" x 10.68" x 13" (129 x 271 x 329 mm)
Weight
9.9 lbs (4.5 kg)
16.7 lbs (7.6 kg) in full-operation
Mfr #
AJ-HDX900PJ
SKU
PCAJHDX900PJ
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Ginetto C  Talk me about CCD is for the full HD or only 1400 and then with the software we have full HD?
WILLIAM H  I have used both. The avc50 is light and versatile but doesnt have the range of the larger. Depending on your application either would be useful. Same size sensor i believe. Panasonic products have been consistent for me.
Shopper  how much does it weigh?
Andrew R  From the tech specs: Weight - 9.9 lbs (4.5 kg) 16.7 lbs (7.6 kg) in full-operation
