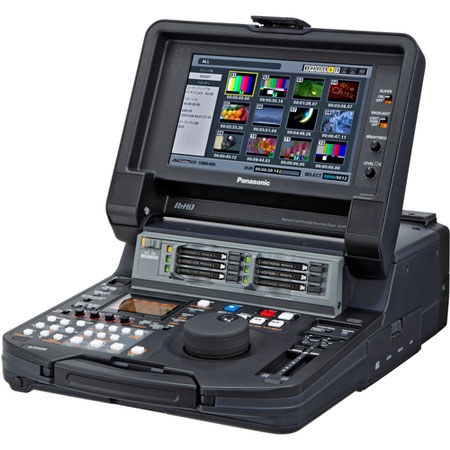

| Recording Format |
AVC-Intra 100/AVC-Intra 50/DVCPRO HD/
DVCPRO 50/DVCPRO/DV/AVCHD selectable |
| Recording Video Signal |
1080/59.94i, 1080/23.98p, 1080/24p,1080/29.97p,
1080/25p, 1080/50i,
720/59.94p, 720/50p, 480/59.94i, 576/50i |
| Recording Audio Signal |
AVC-Intra100/AVC-Intra50/DVCPRO HD: 48 kHz 16 bits 8 CH
DVCPRO50: 48 kHz 16 bits 4 CH
DVCPRO/DV: 48 kHz 16 bits 2/4 CH selectable |
| Recording Media |
P2 card |
| Recording Time-AVC-Intra100/DVCPRO HD |
By single card
64 GB Card 64 min.
32 GB Card 32 min.
16 GB Card 16 min.
Using 6 card slots [AVC-Intra100/DVCPRO HD]
64 GB Card 384 min.
32 GB Card 192 min.
16 GB Card 96 min. |
| Recording Time-AVC-Intra 50/DVCPRO 50 |
By single card
64 GB Card 128 min.
32 GB Card 64 min.
16 GB Card 32 min.
Using 6 card slots [AVC-Intra 50/DVCPRO 50]
64 GB Card 768 min.
32 GB Card 384 min.
16 GB Card 192 min. |
| Recording/Playback Time-DVCPRO/DV |
By single card
64 GB Card 256 min.
32 GB Card 128 min.
16 GB Card 64 min.
Using 6 card slots [DVCPRO/DV]
64 GB Card 1,536 min.
32 GB Card 768 min.
16 GB Card 384 min. |
| Digital Video - AVC-Intra 100/DVCPRO HD |
Sampling Frequency:
(59.94 Hz): Y:74.17586 MHz, PB/PR:37.0879 MHz
(50 Hz): Y:74.2500 MHz, PB/PR:37.1250 MHz
DVCPRO 50: Y:13.5 MHz, PB/PR:6.75 MHz |
| Digital Video - Quantizing |
AVC-Intra 100/AVC-Intra 50: 10 bits
DVCPRO HD/DVCPRO 50/DVCPRO/DV: 8 bits |
| Digital Video - Compression Format |
AVC-Intra 100/AVC-Intra 50: H.264/AVC Intra Profile
DVCPRO HD: DV-Based Compression (SMPTE 370M)
DVCPRO 50/DVCPRO: DV-Based Compression (SMPTE 314M)
DV: DV Compression (IEC61834-2) |
| Color Sampling |
AVC-Intra100: Y:PB:PR = 4:2:2 |
| Resolution |
AVC-Intra 100:
1920 x 1080 (1080/59.94i, 1080/50i)
1280 x 720 (720/59.94p, 720/50p)
AVC-Intra 50:
1440 x 1080 (1080/59.94i, 1080/50i)
960 x 720 (720/59.94p, 720/50p) |
| Analog Composite Input |
BNC x 1 (VIDEO IN), 1.0 V[P-P] (75 ohm ) |
| Reference Input |
BNC x 1 (loop-through x 1), Black Burst/HD 3 value SYNC, 75 ohm auto |
| SDI (HD/SD) Input |
BNC x 1, serial digital component
HD Serial Digital: SMPTE 292M/296M/299M standard
SD Serial Digital: SMPTE 259M-C/272M-A standard
ITU-R BT.656-4 standard |
| SD Analog Composite Output |
BNC x 1 |
| SDI (HD/SD) Output |
BNC x 1, serial digital component
HD Serial Digital: SMPTE 292M/296M/299M standard
SD Serial Digital: SMPTE 259M-C/272M-A standard
ITU-R BT.656-4 standard |
| Output Gain |
- Infinity to + 3 dB (or) - Infinity to + 6 dB |
| Chroma Output Gain |
- Infinity to + 3 dB |
| Chroma Phase |
± 30Deg. |
| Setup Level |
± 10% |
| Sink Phase |
± 15 µs |
| SC Phase |
± 180Deg. |
| Digital Audio -Sampling Frequency: |
48 kHz (sync video) |
| Digital Audito -Quantizing |
16 bits |
| Digital Audio - Frequency Response: |
20 Hz to 20 kHz, ± 1.0 dB (reference level) |
| Digital Audio - Dynamic Range |
More than 85 dB (1 kHz, emphasis off, "A" weighted) |
| Digital Audio - Distortion |
Less than 0.1% (1 kHz, emphasis off, reference level) |
| Digital Audio - Cross Talk |
Less than - 80 dB (1 kHz, between 2 channels) |
| Digital Audio - Headroom |
20/18/12 dB switchable |
| Digital Audio - De-emphasis |
T1=50 µsec, T2=15 µsec (on/off auto) |
| Audio (Analog) Input |
XLR x 4 (CH1/CH2/CH3/CH4),
600O /high-impedance switchable,
+4/0/- 3/ - 20 dBu switchable
LINE/MIC/MIC+48V switchable at CH2
MIC: - 60 dBu, MIC+48 V: Phantom +48 V, - 60 dBu |
| Audio (Analog) Output |
XLR x 4 (CH1/CH2/CH3/CH4), low-impedance, +4/0/- 3/ - 20 dBu switchable |
| Digital Input |
BNC x 2 (CH1/2, CH3/4), AES/EBU format SMPTE 276M |
| SDI Output |
BNC x 1
HD Serial Digital: SMPTE 292M/296M/299M standard
SD Serial Digital: SMPTE 259M-C/272M-A standard
ITU-R BT. 656-4 (576/50i) standard |
| Monitor Output |
Pin jack x 2, - 8 dBV, 600 O |
| Headphones |
Stereo mini jack (3.5 mm diameter), 8 O, variable level |
| Time Code Input |
BNC x 1, 0.5 V[P-P] to 8.0 V[P-P], 10 k O |
| Time Code Output |
BNC x 1, 2.0 V[P-P] ± 0.5 V[P-P], low impedance |
| RS-422A Input |
D-sub 9pin, RS-422A Interface |
| IEEE 1394 Input/Output |
6-pin x 1, 400/200/100 Mbps switchable
IEEE 1394-1995 standard
IEC 61883-Part1, Part2 standard
SMPTE 396M standard
AV/C Command Set standard |
| USB2.0 |
Host x 1, Device x 1 |
| LAN |
1000BASE-T/100BASE-TX/10BASE-T x 1 |
| eSATA |
eSATA 3Gbit port x 1 |
| Power Source |
AC 100 V to 240 V, 50 Hz/60 Hz 60W
DC 12 V/4.8 A |
| Operating Temperature |
0Deg. C to 40Deg. C (32 Deg. F to 104 Deg. F) |
| Operating Humidity |
10 % to 80 % (no condensation) |
| Dimensions (W x H x D) |
301 x 120 x 412mm (11.87 x 4.75 x 16.25" ) |
| Weight |
6.6 kg (14.55 lbs) |
