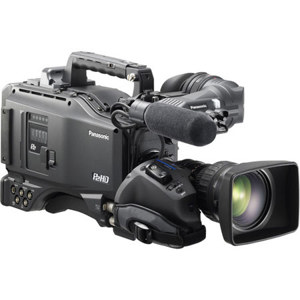

Panasonic AJ-HPX2000 2/3" 3CCD P2 HD/SD Multi-Format Camcorder
Panasonic

Panasonic AJ-HPX2000 2/3" 3CCD P2 HD/SD Multi-Format Camcorder, 1280x720 Effective Pixels, 54dB Signal-to-Noise Ratio, F10@2000 Lux Sensitivity

SKU: PCAJHPX2000P MFR: AJ-HPX2000PJ
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 2 - 4 Weeks from date of order.
What's Included
What's Included With This Item:
  • Panasonic AJ-HPX2000 2/3" 3CCD P2 HD/SD Multi-Format Camcorder
  • Shoulder Strap
  • Front Audio Volume Knob (with screw)
  • Panasonic 5 Years warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$26,703.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech SpecsAccessories
Its never too late...Click by 8! Same day shipping.

About the Panasonic AJ-HPX2000

The Panasonic AJ-HPX2000 P2 HD shoulder-mount camcorder integrates native HD progressive 2/3" 3CCD performance with the ultra-high reliability and speed of P2 solid-state recording. As one of the most flexible, full production-quality cameras available, the AJ-HPX2000 records pristine high-quality images in over 30 HD and SD formats ranging from 1080p, 1080i, 720p, 480p, 480i and 576i. With the new AVC-Intra codec option board (AJ-YBX200G), the AJ-HPX2000 can deliver 10-bit, 4:2:2 master-quality video for outstanding video production and news acquisition.

AVC-Intra, the industry's most advanced compression technology, is a professional intra-frame video codec with bit rates of 50 and 100 Mbps, utilizing the High-10 and High-422 profiles of H.264 respectively. AVC-Intra provides high-quality 10-bit intra-frame encoding in two modes: AVC-Intra 100 for full-raster mastering video quality and AVC-Intra 50 Mbps for DVCPRO HD quality at half the bit rate, thereby doubling the record time on a P2 card.

The Panasonic AJ-HPX2000 holds up to five P2 cards offering users extended recording time. With five 32 GB P2 cards, professionals can record over 5 hours of content with AVC-Intra 50 and over 6-1/2 hours in DVCPRO HD 720p native.

Panasonic AJ-HPX2000 Includes

  • Panasonic AJ-HPX2000 2/3" 3CCD P2 HD/SD Multi-Format Camcorder
  • Shoulder Strap
  • Front Audio Volume Knob (with screw)
  • Panasonic 5 Years warranty

Panasonic AJ-HPX2000 Features

  • Compatible with DVCPRO HD/50/25 and optional AVC-Intra 50/100
  • Multi-format recording system that supports a total of 30 HD and SD U.S. and international formats, including 1080/59.94i, 1080/50i, 1080/29.97p, 1080/25p, 1080/23.98p, 720/59.94p, 720/50p, 720/29.97p, 720/25p 720/23.98p and more
  • Offers DVCPRO HD Native recording frame rates, including 720 23.98p / 25p / 29.97p
  • 2/3" 3-CCDs with 14-bit A/D processing
  • One-clip REC function that records up to 99 consecutive cuts as a single clip, greatly facilitating NLE news or documentary editing
  • Time lapse
  • High-speed file transfers are easy with industry-standard IT interfaces, including USB 2.0 and IEEE 1394
  • Ultra-reliable, solid-state recording for superior reliability in harsh environments including temperature change, vibration and shock
  • New Dynamic Range Stretching (DRS) automatically adjusts the camera's aperture when moving from dark to light areas or shooting scenes with mixed dark and light areas
  • 12-color correction matrix for precise color adjustments
  • Top performer in low and bright light conditions, with a high sensitivity of F11 at 2000 lux and a minimum illumination of 0.007 lux (at +74 dB gain)
  • Powerful digital super gain
  • Records full 48-kHz/16-bit digital audio on four channels
  • Extensive signal connectivity and control capability comes standard with the camera, including IEEE 1394 (AVC) USB 2.0 interfaces, HD/SD-SDI, genlock, SMPTE time code & composite video. A 10-pin RCU terminal connects the optional AJ-RC10G remote control unit. GPS mapping connection is also available
  • Optional recording boards, such as Proxy Data and HD/SD line recording, allow for a variety of recording options compatible with common studio news systems and applications (news flashes, etc.)
  • 4-position optical filter
  • Up to 4X Digital Zoom due to increased magnification of the lens by either 2X, 3X or 4X. HD images remain in their superb resolution while maintaining brightness

Panasonic AJ-HPX2000 Specifications

CD Elements 2/3-inch CCD x 3
Picture Element Total: 1370 (H) x 744 (W), Active: 1280 (H) x 720 (W)
Optical Filters 1: 3200K, 2: 5600K+1/8ND, 3: 5600K, 4: 5600K+1/64ND
Quantizing 14 bits
Horizontal Drive Frequency 74.1758 MHz (59.94 Hz), 74.25 MHz (50 Hz)
Sampling Frequency 74.1758 MHz (59.94 Hz), 74.25 MHz (50 Hz)
Digital Signal Process 74.1758 MHz (59.94 Hz), 74.25 MHz (50 Hz)
Programmable Gain 3/0/+3/+6/+9/+12/+15/+18/+21/+24/+27/+30 dB
Digital Super Gain +6/+10/+12/+15/+20 dB
Line Mix Gain +6 dB (ON/OFF)
Super Gain +30/+36/+42/+48 dB
Shutter Speed 1/60 (50Hz),1/100 (59.94Hz),1/120/, 1/250, 1/500, 1/1000, 1/2000 sec. and HALF
Syncro Scan Sutter 1/60.3 to 1/249.8 sec. (59.94Hz), 1/30.2 to 1/249.7 sec. (29.97Hz), 1/24.1 to 1/249.7 sec. (23.98Hz), 1/50.2 to 1/209.5 sec. (50 Hz), 1/25.2 to 1/209.5 sec. (25 Hz)
Lens Mount 2/3-inch bayonet mount
Optical System F1.4 Prism
Sensitivity F10
Minimum Luminance 0.007lx (F1.4, Super gain +48dB, Digital super gain +20 dB, Line mix gain +6dB)
Video S/N 54 dB (standard )
Horizontal Resolution 700 lines (at center standard )
Memory Card Recorder Section-1 Recording Format: DVCPRO HD/DVCPRO 50/DVCPRO/DV Format switchable
Recording Video Signal: 1080/59.94i, 720/59.94p, 480/59.94i, 1080/50i, 720/50p, 576/50i
Recording Audio Signal: DVCPRO HD: 48kHz/16bits, 4CH
DVCPRO 50: 48kHz/16bits, 4CH
DVCPRO/DV: 48kHz/16bits, (2CH/4CHswitchable )
Memory Card Recorder Section-2 Recording Media: P2card
Recording Playback Time (when using 8GB P2 card AJ-P2C008HG): by single card
DVCPRO HD: Approx. 8 min.
DVCPRO 50: Approx. 16 min.
DVCPRO/DV: Approx. 32 min.
Recording Playback Time
DVCPRO HD: Approx. 40 min.
50: Approx. 80 min.
/DV: Approx. 160 min.
Digital Video-1 Sampling Frequency:
DVCPRO HD: Y:74.1758 MHz
(59.94 Hz) PB/PR:37.0879 MHz
DVCPRO HD: Y:74.25 MHz
(50 Hz) PB/PR:37.125 MHz
DVCPRO 50: Y:13.5 MHz
PB/PR:6.75 MHz
Quantizing: 8bits
Video Compression Ratio:
DVCPRO HD: 1/6.7 (except 1080-50i/25P), 1/6.3 (1080-50i/25P)
DVCORO 50: 1/3.3
DVCORO/DV: 1/5
Video Recording bit Rate:
DVCPRO HD: 100 Mbps
DVCORO 50: 50Mbps
DVCORO/DV: 25Mbps
Digital Audio-2 Sampling Frequency: 48 kHz (sync. with video)
Quantizing: 16 bits
Frequency Response: 20 Hz to 20 kHz, ±1.0dB (reference level)
Dynamic Range: More than 85 dB (1 kHz, AWTD)
Distortion: Within 0.1% (1 kHz, reference level)
Headroom: 20dB
Genlock In BNC, 1.0 Vp-p, 75 Ohms(switchable to VIDEO IN or Return Video)
Monitor Out BNC x 1, 1.0Vp-p, 75Ohms Composite
Video out BNC x 1, 1.0Vp-p, 75Ohms Composite (switchable to HD-SDI/SD-SDI)
HD-SDI: 0.8Vp-p, 75Ohms, (SMPTE292M/296M/299M)
SD-SDI: 0.8Vp-p, 75Ohms, (SMPTE259M-C/272M-A/ITU-R.BT656-4)
TC In: BNC x 1, 0.5 to 8Vp-p, 10kOhms
TC Out BNC x 1, low-impedance, 2.0±0.5Vp-p
DVCPRO/DV 6pin (Input and Output ), Transfer Speed: 400/200/100 Mbps (selectable)
Data: IEEE 1394-1995/1394a-2000, IEC61883-1,2, SPMTE396M standards
Control Command: AV/C Command Set
SDI-IN (option) BNC x 1, 0.8Vp-p, 75 (AJ-YA350G)
HD: SMPTE292M/296M/299M
SD: SMPTE259M-C/272M-A/ITU-R.BT656-4
Audio In: (CH1/CH2) XLR-3pin x 2, LINE/MIC/MIC+48Vswitchable
LINE:-3/0/+4dBu selectable
MIC:-60/-50dBu selectable
MIC+48V: Phantom +48 V, -60/-50 dBu selectable
MIC In XLR-5pin x 1, -50/-40dBu selectable, Phantom +48 V ON/OFF
Wireless In D-sub 25-pin, -40 dBu
AUDIO OUT (CH1/CH2) XLR 5-pin, balanced, low-impedance, -3/0/+4 dBu selectable
PHONES Out Stereo Mini Jack x 2
DC In XLR-4-pin x 1, DC12V (11 to 17V)
DC Out 4 pin, DC12V (11 to 17V), Max.1.5A
Lens 12-pin
EVF 20-pin
ECU 10pin (for AJ-RC10G)
GPS 6-pin (for AJ-GPS900G)
USB (2.0) HOST: 4-pin (Type-A), DEVICE: 4-pin (Type-B)
Power Source DC 12V (11.0V to 17.0V)
Power Consumption 36W (LCD Monitor Off)
43W (SDI-IN, with AVC-Intra option, LCD Monitor ON)
Operating Temperature 32deg.F to 104deg.F (0deg.C to 40deg.C)
Keeping Temperature -4deg.F to 140deg.F (-20deg.C to 60deg.C)
Operating Humidity 10% to 85%
Operating Time Approx. 120 min. (when using DIONIC90 battery)
Dimensions (W x H x D) 137 x 209 x 317 mm / 5.39 x 8.22 x 12.48" without handle and wireless option cover
Weight 10.0 lbs (4.5 kg), main unit only, without VF mount
