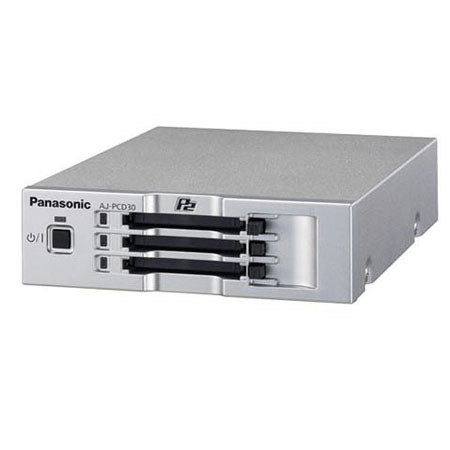

Panasonic AJ-PCD30PJ Three-Slot P2 Drive with USB 3.0 Interface

Panasonic
SKU: PCAJPCD30PJ MFR: AJ-PCD30PJ
Panasonic AJ-PCD30PJ: Picture 1 thumbnail Panasonic AJ-PCD30PJ: Picture 2 thumbnail Panasonic AJ-PCD30PJ: Picture 3 thumbnail

List Price: $2,360.00

Our Price

$2,179.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Panasonic AJ-PCD30PJ

The Panasonic AJ-PCD30PJ Three-Slot P2 Drive with USB 3.0 Interface is a solid-state card reader that provides an extremely fast connection to a computer for quick offloading of up to three P2 cards simultaneously. The drive supports all file formats that can be recorded to Panasonic's P2 cards, including the 100 Mb/s AVC-Intra 100 and DVCPRO HD formats. Using the PCD30 with a computer that has a RAID storage system is preferable, but the drive will also work with any computer with a USB 3.0 or 2.0 connection.

When used with a simple RAID configuration and a USB 3.0 connection, transfer rates of 100 Mb/s material can be as high as 12x real time, depending on your processor speed and drive types. Even without RAID drives, you can achieve up to 4x transfer rates. The three-slot capacity and the fast transfer speeds make the PCD30 suitable for any production that makes use of hours of footage, such as reality TV and documentary projects.

With three 64 GB P2 cards installed in the drive, you can offload more than three hours of 100 Mb/s material at once - or more than six hours of 50 Mb/s content (such as DVCPRO50 and AVC-Intra 50). Use the drive externally or install it in a 5-type bay on a computer (PC only) for use as a built-in reader. In either case, the AJ-PCD30PJ forms the basis of a highly efficient log/transfer station.

Panasonic AJ-PCD30PJ Features

  • Super-fast USB 3.0 (1.5 Gb/s) transfer with USB 3.0 interface when connected to a compatible computer
  • Three P2 cards slots
  • Offloads AVC-Intra 100 & DVCPRO HD content at up to 12x real-time
  • Internal/external drive for Windows machines; external drive for Macs
  • USB 2.0 backward compatibility
  • Supports all P2 frame rates and formats

Panasonic AJ-PCD30PJ Specifications

System Requirements
Windows
Windows 7 Professional (SP1), Ultimate (SP1) 32-bit/64-bit
Windows Vista Business (SP2), Ultimate (SP2) 32-bit/640-bit
Windows XP Professional (SP3) 32-bit
1 GB or more memory
Mac
Mac OS X 10.5.8, 10.6.7 with Intel processor
1 GB or more memory
Power Requirements
16V DC, 0.6A with AC adapter
12V DC, 0.8A when built into PC
Power Source
AC adapter: 100-240V AC (1.20A), 50/60 Hz
Power Output
AC Adapter: 16.0V DC, 3.75A
Media Card Slots
3x PC card Type II
Operating Temperature
32 to 104Deg. F (0 to 40Deg. C)
Operating Humidity
10-80% (no condensation)
Dimensions (H x W x D)
Excluding protruding parts: 1.67 x 5.84 x 7.85" (42.5 x 148.4 x 199.5mm)
Weight
2.6 lb (1.2 kg)
