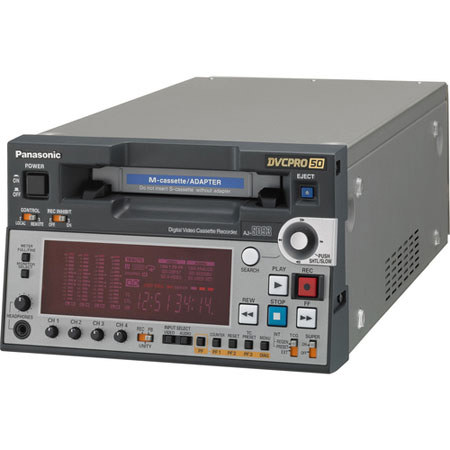

| Recording Format |
DVCPRO50/DVCPRO switchable |
| Video Format |
525i |
| Recording Audio Signal |
DVCPRO50 48 kHz, 16 bit, 4 CH
DVCPRO 48 kHz, 16 bit, 2 CH |
| Recording Track |
Digital Video/Audio Helical track:
TC Sub-code area
CTL 1 longitudinal track |
| Tape Speed |
67.640 mm/ sec. (DVCPRO50) |
| Max. Rec/Play Time |
92 minutes in DVCPRO50 (with AJ-5P92LP cassette) |
| Tape |
Metal Particle |
| FF/REW Time |
Less than 3 minutes (with AJ-5P92LP cassette) |
| Digital Slow |
-0.43 to +0.43 times normal speed (DVCPRO50/DVCPRO) |
| Tape Timer Accuracy |
±1 frame (continuous CTL) |
| Video Specification 1 |
Sampling Frequency Y13.5 MHz, PB/PR6.75 MHz (DVCPRO50)
Quantizing 8 bits
Compression Format DV-based compression (SMTPE314M)
Compression Ratio 3.31 (DVCPRO50), 51 (DVCPRO)
Error Correction Reed-Solomon product code
Bit Rate 50 Mbps (DVCPRO50), 25 Mbps (DVCPRO)
[Digital Input /Analog Component Output] - Video Band Width (option 12)
Y 30 Hz to 5.5 MHz (±1 dB)
5.75 MHz (±2 dB) |
| Video Specification 2 |
PB/PR 30 Hz to 2.5 MHz (±1 dB)
2.75 MHz (-2 dB)
S/N Ratio 58 dB or more (Y)
K Factor 1 % or less (Y 2T)
Y/PB, PR Delay 10 nsec or less |
| Video Input Signal |
Analog Component (option 1)
BNC x 3 (Y/PB/PR) (VIDEO IN)
Y 1.0 Vp-p
PB/PR 0.486/0.7 Vp-p, 75 Ohms (75% color bar, set-up level 7.5 % )
Analog Composite (option 1)
BNC x 1, VIDEO1.0 Vp-p (75 Ohms)
Reference (option 1)
BNC x 2 (loop-through), analog composite, 75 Ohms ON/OFF auto switching
SDI (option 2) BNC x 1, SMPTE259M-C standard |
| Video Output Signal |
Analog Component (option 1)
BNC x 3 (Y/PB/PR)
(switchable for composite output)
Y 1.0 Vp-p
PB/PR 0.486/0.7 Vp-p, 75 Ohms, (75% color bar, Set-up Level 7.5 % )
Analog Composite (option 1)
BNC x 2, VIDEO1, VIDEO2
SDI (option 2) BNC x 1, SMPTE259M-C standard
Monitor BNC x 1 |
| Video Adjustment Range |
Output Video Gain ±3 dB
Output Chroma Gain ±3 dB
Output Hue ±30deg.
Output Set-up Level ±14 IRE
Output Sync Phase ±15 usec
Output SC Phase ±180deg. |
| Audio Specification |
Sampling Frequency 48kHz (sync. with video)
Quantization 16 bits
Frequency Response 20Hz to 20kHz, ±1.0dB (reference level)
Dynamic Range More than 85 dB (1 kHz, emphasis off, "A" weighted)
Distortion within 0.1%
(1 kHz, emphasis off, reference level )
Cross Talk
less than -80 dB (1 kHz, between any 2ch)
Wow & Flutter Below measurable limit
Headroom 20 dB
De-Emphasis
T1=50usec, T2=15usec, ON/OFF automatically switching |
| Audio Input Signal |
Analog (option 1)
XLR x 4 (CH1/2/3/4)
600Ohms /high-impedance switchable, +4/0/-20 dBu switchable
SDI (option 2) BNC x 1, SMPTE259M-C/272M-A |
| Audio Output Signal |
Analog (option1)
XLR x 4 (CH1/2/3/4), low-impedance +4/0/-20 dBu switchable
SDI (option 2) BNC x 1, SMPTE259M-C/272M-A
Monitor PHONO x 2, 600Ohms, -8 dBv
Headphones M3, stereo, 8 Ohms, variable level control |
| Other Input and Output Signal |
DVCPRO/DV In/Out
6 pin x 1, IEEE 1394 Digital Interface, 400/200/100 Mbps switchable IEEE1394-1995, IEC61883-Part1/Part2, SMPTE396M, AV/C Digital Interface Command Set
TC In (option1) BNC x 1, 0.5 to 8.0 Vp-p, 10 KOhms
TC Out (option1) BNC x 1, low-impedance, 2.0 ±0.5 V
Remote In/Out (option1)
D-sub 9 pin
RS-422A I/F |
| Power Source |
AC100 to 240 V ±10%, 50/60 Hz |
| Power Consumption |
52 W |
| Operating Temperature |
41deg.F to 104deg.F (5deg.C to 40deg.C) |
| Operating Humidity |
10 % to 80 % (no condensation ) |
| Dimensions (W x H x D) |
8-1/2 x 5-3/16 x 17-1/8" (215.9 x 131.76 x 433.1 mm) without shoes and connectors |
| Weight |
15 lbs (6.8 kg) |
