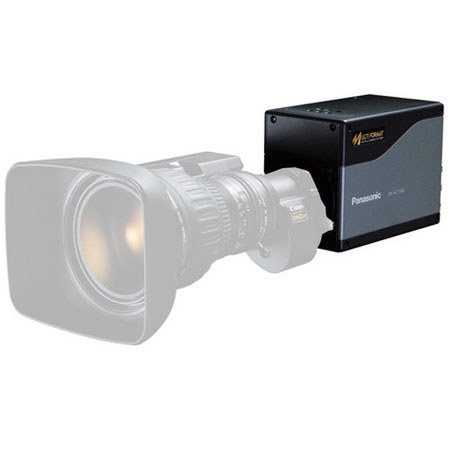

Panasonic AK-HC1500G Multi-Purpose HD Box Camera, 1280x720 Resolution, 54dB Signal-to-Noise Ratio, 72 dB Gain

Panasonic
SKU: PCAKHC1500G MFR: AK-HC1500G

List Price: $20,000.00

Free Shipping

See all shipping options

Special Order Item - This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 2-3 Weeks from date of order. learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 2 Year Extended Warranty + $404.95
  • New Leaf 2 Year Drops & Spills Extra Protection + $567.95
  • New Leaf 3 Year Extended Warranty + $569.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $839.95
  • New Leaf 5 Year Extended Warranty + $839.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $1249.95

Our Price

$18,511.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Panasonic AK-HC1500G: Picture 1 regular $18,511.00

About Panasonic AK-HC1500G

The Panasonic AK-HC1500G Multi-Purpose HD Box Camera is designed to deliver sharp, broadcast-quality, high-definition images to a wide range of applications. Whether you're shooting live sports, in-studio newscasts, scientific image analysis, or videoconferencing, the AK-HC1500G combines its 3 high-performance 2/3" CCDs with a benchmark-setting 14-bit A/D converter to provide a range of cine-like looks and frame rates.

As one of the first multi-format HD cameras to offer variable frame rates (from 4fps to 60fps), the AK-HC1500G further mimics the range and flexibility of a film camera with its lowlight sensitivity and wide dynamic range--delivering rich colors that contain fuller blacks and less washed-out whites.

Meanwhile, its bayonet lens mount makes it compatible with all 2/3" broadcast lenses, while its compact size, HD-SDI output and other professional connections (genlock, tally, etc.) make it truly multi-functional--equally at home in a camera control or pan-tilt-zoom system, on a football field, or in a multi-camera studio shoot.

Panasonic AK-HC1500G Features

  • Captures 1080 at 24p/25p/30p/50i/59.94i and 60i and 720 at 50p/59.94p and 60p
  • Standard-setting IT 3-CCD offers improved on-chip lens performance (standard sensitivity of F10.0 at 2000 lux and a smear level of less than -130dB)
  • Single-channel transfer system and spatial-offset processing technologies improve signal modulation depth, thus reducing moire
  • 14-bit A/D converter and adaptive function vary the gamma correction to match the contrast within the image, creating clear, sharp images from dark to bright areas
  • Hue preservation circuit prevents color loss in highlight areas
  • Shoots in variable frame rates (4fps to 60fps in one-second increments) just like a film camera, thereby producing overcranking and undercranking speed effects
  • A special CineGamma curve allows the CCD to produce the tonal beauty, natural gradation and rich colors of film recordings
  • Exceptionally high sensitivity allows shooting in lighting as low as 0.015 lux (at +72dB gain)
  • Environment-friendly, compact design with fewer parts and low power consumption
  • Slot to add option card to expand capabilities for a wide range of applications
  • Supports down converter and analog output unit
  • Electronic Extender function (used with conventional lens extender) magnifies the image by 2 times

Panasonic AK-HC1500G Specifications

CCD
2/3" 1-megapixel IT-3CCD
Image Sensing Method
GBR image sensing method
Total Number of Pixels
1370(H) x744(V)
Effective Number of Pixels
1280(H) x720(V)
Optical Prism
F1.4 Prism
Optical Filter
(ND) 100 %, 25 %, 6.3 %, 1.6 %
Lens Mount
2/3" Bayonet type
Output Format
1080:60i/59.94i/50i/30psF/29.97psF/25psF/24psF/23.98psF/720:60p/59.94p/50p
Sensitivity
F10.0 at 2000 lx
Minimum Illumination
0.015 lx(F1.4 / 68 dB)
Gain
72 dB
S/N
54 dB
Smear
Less than -130 dB
M.T.F.
45 %(27.5 MHz 720 p / 60 p)
Synchronize System
Internal and external synchronization (Tri-level SYNC/Black Burst)
Input
GENLOCK: BNC x 1, Interface: Mini D-sub 15pin terminal
Output
HD-SDI: BNC x 1
Input/Output
Lens aperture connector, lens zoom focus connector
Storage Temperature
-4 to 140 Deg. F(-20 to +60 Deg.C)
Operating Temperature
32 to 104 Deg. F (0 to 40 Deg. C)
Power Consumption
17 W (DC12 V)
Dimensions (W x H x D)
3-9/16 x 4-10/16 x 6-5/16" (90 x 117 x 160 mm)
Weight
3.3 lbs (1.5 kg)
Mfr #
AK-HC1500G
SKU
PCAKHC1500G
