Panasonic

Panasonic AK-HRP931 Remote Operation Panel, 1/3" Rack Size Unit

SKU: PCAKHRP931 MFR: AK-HRP931
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$4,060.00
Free Expedited Shipping
Qty:
Add to Wishlist

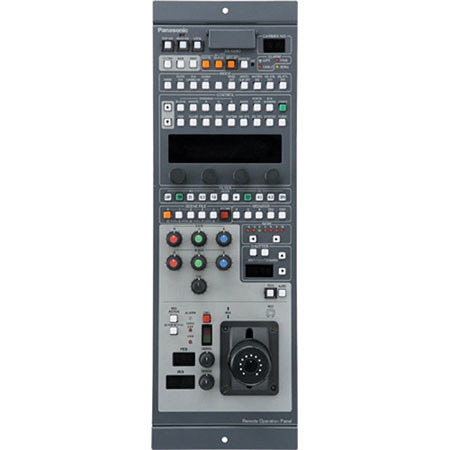

About the Panasonic AK-HRP931

The Panasonic AK-HRP931 Remote Operation Panel is a compact (136 x 55 x 419 mm) 1/3" rack unit that allows you to remotely adjust the parameters of the AK-HC931B camera system. Using the remote operation panel, you can manage the camera, CCU, tally and power supply (12 VDC) control signals as well as the RCP control (fader control) and power supply signals.

Panasonic AK-HRP931 Includes

  • Panasonic 1 Year Warranty

Panasonic AK-HRP931 Features

  • Allows you to remotely adjust the parameters of the AK-HC931B camera system
  • Compact (136 mm x 55 mm x 419 mm) 1/3" rack unit
  • Allows you to manage the control signals of the camera, CCU, tally and power supply (12 VDC) as well as the RCP control (fader control) and power supply signals
  • Also manages control signals for Preview

Panasonic AK-HRP931 Specifications

Rack Mount 1/3" rack size
Control CCU Control
Control signals (camera, CCU control)
Power supply (DC12 V)
Tally control signals
RCP Control
Control signals (fader control)
Power supply (DC12 V)
Power supply DC 12 V (supplied from CCU)
Power Consumption Approx. 6 W
Operating Temperature 32 to 104 Deg. F (0 to 40 Deg. C)
Storage Temperature -4 to 140 Deg. F (-20 to 60 Deg. C)
Dimensions (W x H x D) 5.4 x 2.2 x 16.5" (136 x 55 x 419mm)
Weight Approx. 5 lbs (2.3kg)
