Description

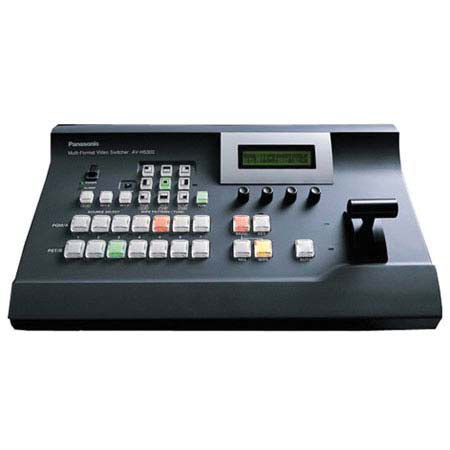

This compact, multi-format AV-HS300G video switcher provides high definition or standard definition switching for live and to-be-recorded events. This high-performance unit features six inputs (five HD/SD SDI and one DVI/RGB) and three outputs (three HD/SD SDI), RS-422 control, Ethernet connectivity and a built-in, 10-bit, 6-channel frame synchronizer that adjusts automatically (external Gen Lock synchronization available also).
It's ultra easy to operation and includes nine wipe patterns and three directional wipes. Ideal for broadcast facilities, production vans, fly packs, sports, church productions, music videos, cable shows, corporate videos, event staging, educational and training facilities, conferences and more. |
Features
 |
6 inputs (5 HD-SDI or SD-SDI, 1 DVI/RGB) |
|
HD/SD multi-format supports: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 576i, 480/59.94i |
|
Automatic Frame Synchronization via 10-Bit 6-Channel Frame Synchronizer or External Genlock System with reference |
|
Ethernet connection to import images from a PC to the unit's frame memory so the image can be used as a background |
|
Selectable A/B Bus System or Flip Flop System in Bus Operation |
|
Nine wipe patterns and three directional wipes |
|
6 tally outputs |
|
4-Pin XLR input allows 12 Volt DC (+/- 2 volts) operation in the field |
|
Linear, Invert and Self Keying |
|
Control interfaces: RS422A (Editor), GPI (Auto Take Contact Closure) and Ethernet |
|
Optional HD Component Analog Board for five Y, Pb, Pr inputs (three BNCs for each input) |
|
Special Options: Add borders to titles or wipes and specify Color, Width and Sharpness of border |
Specifications
| Inputs | SDI: x5 (with active throughput)
RGB: DVH x1 (SXGA 1280x1024, XGA 1024x768, 60Hz)
HD Analog Component: x5 (Y, Pb, Pr: HD only)
Key: possible to assign to desired 1 input among 5 SDI inputs
Reference: x1 Black burst/TRI (loop through) |
| Outputs | SDI: x3 (PGM x2, PVW x1, AUX x2)
3 outputs (Y, Pb, Pr: HD only)
Reference: x2 Black burst (internal synchronization) |
| Formats | SD (480/59.94i, 576/50i)
HD (1080/59.94i, 1080/50i, 720/59.94p, 720/50p) |
| Power | DC 12V/5A |
| Dimensions (HxWxD) | 4 x 16-1/8 x 9-1/2" |
| Weight | 8.9 lbs (4kg) |
| Warranty | Panasonic 1 year warranty |
| | |
|
